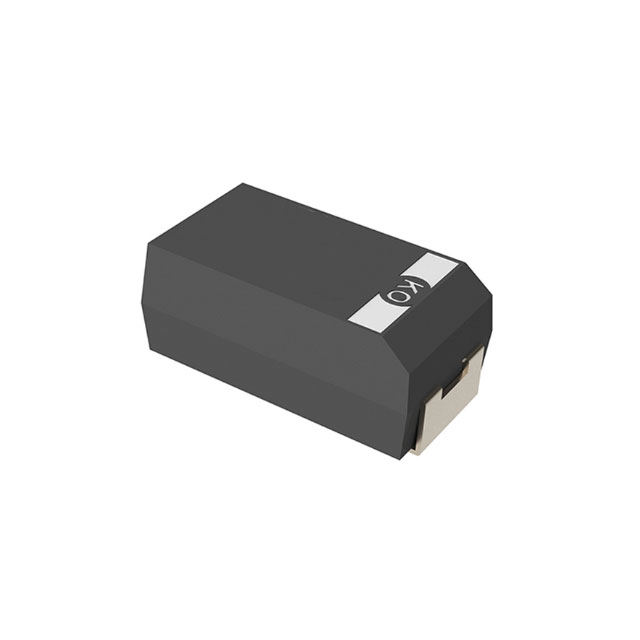

T521B106M020ATE100

Active

KEMET

CAP TANT POLY 10UF 20V 1411

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT521B106M020ATE100 Spec Datasheet

T521B106M020ATE100

Active

KEMET

CAP TANT POLY 10UF 20V 1411

Deep-Dive with AI

DocumentsT521B106M020ATE100 Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T521B106M020ATE100

Capacitance	10 µF
ESR (Equivalent Series Resistance)	100 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	20 V

T521B Series

Part	Capacitance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Rated	Mounting Type	Manufacturer Size Code	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Package / Case	Package / Case
KEMET T521B226M020ATE090	22 µF	2000 Hrs	90 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	20 V	Surface Mount	B	2 mm	0.079 in	105 ░C	-55 °C	General Purpose	Molded	1411	3528 Metric
KEMET T521B685M035ATE2007280	6.8 ÁF	2000 Hrs	200 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	35 V	Surface Mount	B	2 mm	0.079 in	105 ░C	-55 °C	General Purpose	Molded	1411	3528 Metric
KEMET T521B106M020ATE100	10 µF	2000 Hrs	100 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	20 V	Surface Mount	B	2 mm	0.079 in	125 °C	-55 °C	General Purpose	Molded	1411	3528 Metric
KEMET T521B475M035ATE2007280	4.7 µF	2000 Hrs	200 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	35 V	Surface Mount	B	2 mm	0.079 in	105 ░C	-55 °C	General Purpose	Molded	1411	3528 Metric
KEMET T521B226M016ATE090	22 µF		90 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	16 V	Surface Mount	B	2 mm	0.079 in	105 ░C	-55 °C	General Purpose	Molded	1411	3528 Metric
KEMET T521B684M063ATE2007280	680 nF	2000 Hrs	200 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	63 V	Surface Mount	B	2 mm	0.079 in	105 ░C	-55 °C	General Purpose	Molded	1411	3528 Metric
KEMET T521B684M063ATE200	680 nF	2000 Hrs	200 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	63 V	Surface Mount	B	2 mm	0.079 in	105 ░C	-55 °C	General Purpose	Molded	1411	3528 Metric
KEMET T521B475M035ATE200	4.7 µF	2000 Hrs	200 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	35 V	Surface Mount	B	2 mm	0.079 in	105 ░C	-55 °C	General Purpose	Molded	1411	3528 Metric
KEMET T521B475M035ATE150	4.7 µF	2000 Hrs	150 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	35 V	Surface Mount	B	2 mm	0.079 in	105 ░C	-55 °C	General Purpose	Molded	1411	3528 Metric
KEMET T521B155M063ATE200	1.5 µF		200 mOhm	20 %	0.11 in	2.8 mm	0.138 "	3.5 mm	63 V	Surface Mount	B	2 mm	0.079 in	105 ░C	-55 °C	General Purpose	Molded	1411	3528 Metric

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.49
		10	$ 1.11
		50	$ 1.02
		100	$ 0.83
		500	$ 0.66
		1000	$ 0.59
	Digi-Reel®	1	$ 1.49
		10	$ 1.11
		50	$ 1.02
		100	$ 0.83
		500	$ 0.66
		1000	$ 0.59
	Tape & Reel (TR)	2000	$ 0.49
		4000	$ 0.48

Description

General part information

T521B Series

10 µF Molded Tantalum Polymer Capacitor 20 V 1411 (3528 Metric) 100mOhm @ 100kHz

Documents

Technical documentation and resources

T521B106M020ATE100 Spec

Datasheet
