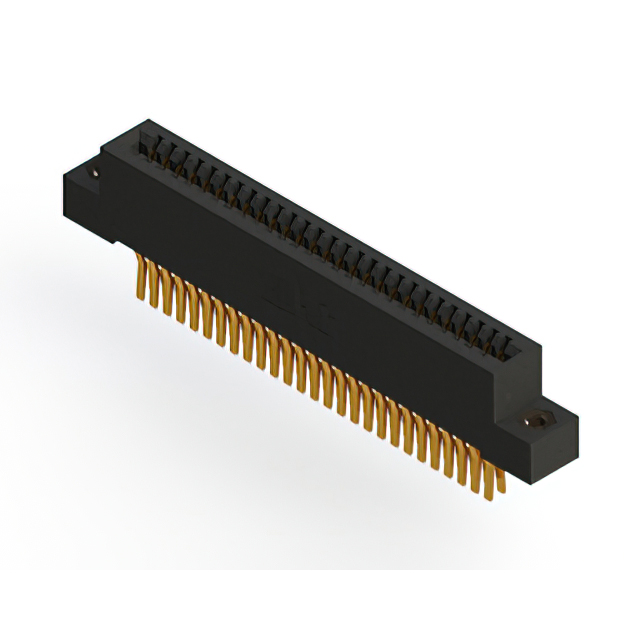

392-054-560-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-054-560-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-054-560-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 54 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
392-054 Series
...
| Part | Color | Number of Positions | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Contact Material | Gender | Number of Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination | Termination Rows | Read Out | Mounting Type | Material - Insulation | Features | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 54 | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | Copper Alloy | Female | 1 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Wire Wrap | 1 | Single | Through Hole | Polyester Thermoplastic | ||
EDAC Inc. | Black | 54 | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Cantilever | Copper Alloy | Female | 1 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Solder Wire Wrap | 1 | Single | Through Hole Right Angle | Polyester Thermoplastic | ||
EDAC Inc. | Black | 54 | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | Copper Alloy | Female | 1 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Wire Wrap | 1 | Single | Through Hole | Polyester Thermoplastic | ||
EDAC Inc. | Black | 54 | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | Female | 1 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Solder Wire Wrap | 1 | Single | Through Hole Right Angle | Polyester Thermoplastic | |||||
EDAC Inc. | Black | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Copper Alloy | Female | 2 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Solder | 2 | Dual | Board Edge Straddle Mount | Polyester Thermoplastic | Card Extender | 27 | |||
EDAC Inc. | Black | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Copper Alloy | Female | 2 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Wire Wrap | 2 | Dual | Through Hole | Polyester Thermoplastic | 27 | ||||
EDAC Inc. | Black | 54 | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Copper Alloy | Female | 1 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Solder | 1 | Single | Through Hole | Polyester Thermoplastic | ||||
EDAC Inc. | Black | 54 | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | Female | 1 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Solder | 1 | Single | Through Hole | Polyester Thermoplastic | |||||
EDAC Inc. | Black | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Cantilever | Copper Alloy | Female | 2 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Solder Wire Wrap | 2 | Dual | Through Hole Right Angle | Polyester Thermoplastic | 27 | ||
EDAC Inc. | Black | 54 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | Copper Alloy | Female | 2 | Gold | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Solder Wire Wrap | 2 | Dual | Through Hole Right Angle | Polyester Thermoplastic | 27 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 15.68 | |
Description
General part information
392-054 Series
54 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
