Connectors, Interconnects

392-054-559-101

Active

EDAC Inc.

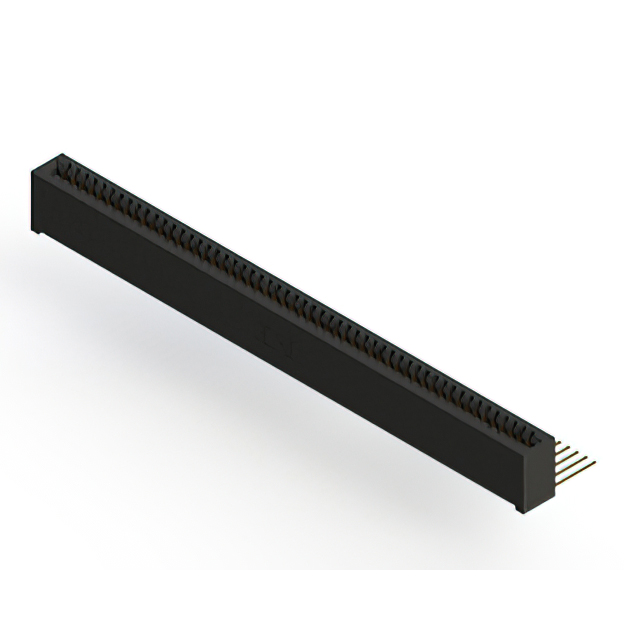

CONN EDGE SINGLE FML 54POS 0.100

Connectors, Interconnects

392-054-559-101

Active

EDAC Inc.

CONN EDGE SINGLE FML 54POS 0.100

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	392-054-559-101

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	54
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1 rows

392-054 Series

...

Part	Pitch	Read Out	Termination	Number of Rows	Contact Finish Thickness	Color	Card Type	Flange Feature Diameter	Flange Feature	Contact Type	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Mounting Type	Number of Positions	Gender	Card Thickness (Min)	Card Thickness (Max)	Termination Rows	Material - Insulation	Features
EDAC Inc. 392-054-540-104	0.1 in	Single	Wire Wrap	1	10 Ąin	Black	Non Specified Single Edge	0.156 in	Flush Mount Top Opening Unthreaded	Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Through Hole	54	Female	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 392-054-558-207	0.1 in	Dual	Solder Wire Wrap	2	10 Ąin	Black	Dual Edge Non Specified		Flush Mount M3 Threaded Insert Top Opening	Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Right Angle Through Hole	27 54	Female	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 392-054-559-102	0.1 in	Single	Solder Wire Wrap	1	10 Ąin	Black	Non Specified Single Edge	0.128 in	Flush Mount Top Opening Unthreaded	Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Right Angle Through Hole	54	Female	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 392-054-542-104	0.1 in	Single	Wire Wrap	1	10 Ąin	Black	Non Specified Single Edge	0.156 in	Flush Mount Top Opening Unthreaded	Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Through Hole	54	Female	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 392-054-559-101	0.1 in	Single	Solder Wire Wrap	1	10 Ąin	Black	Non Specified Single Edge			Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Right Angle Through Hole	54	Female	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 392-054-560-208	0.1 in	Dual	Solder	2	10 Ąin	Black	Dual Edge Non Specified		4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Board Edge Straddle Mount	27 54	Female	0.054 in	0.07 in	2 rows	Polyester Thermoplastic	Card Extender
EDAC Inc. 392-054-541-207	0.1 in	Dual	Wire Wrap	2	10 Ąin	Black	Dual Edge Non Specified		Flush Mount M3 Threaded Insert Top Opening	Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Through Hole	27 54	Female	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 392-054-524-108	0.1 in	Single	Solder	1	10 Ąin	Black	Non Specified Single Edge		4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Through Hole	54	Female	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 392-054-558-202	0.1 in	Dual	Solder Wire Wrap	2	10 Ąin	Black	Dual Edge Non Specified	0.128 in	Flush Mount Top Opening Unthreaded	Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Right Angle Through Hole	27 54	Female	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 392-054-559-203	0.1 in	Dual	Solder Wire Wrap	2	10 Ąin	Black	Dual Edge Non Specified	0.116 in	Floating Bobbin Flush Mount	Cantilever	Gold	-40 °C	105 °C	Copper Alloy	Right Angle Through Hole	27 54	Female	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
