Specification	BQ77910DBT

Battery Chemistry	Polymer, Lithium Ion
Fault Protection	Over Current, Over Temperature, Short Circuit, Over/Under Voltage
Function	Multi-Function Controller
Interface	I2C
Mounting Type	Surface Mount
Number of Cells (Max)	10
Number of Cells (Min)	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Package Length	0.173 in
Package Name	38-TSSOP, 38-TFSOP
Package Width	4.4 mm

BQ77910 Series

Part	Battery Chemistry	Fault Protection	Number of Cells (Max)	Number of Cells (Min)	Package Name	Interface	Mounting Type	Function	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Length	Supplied Contents	Contents	Primary Attributes	Primary Attributes - Cell Chemistry	Cell Count Maximum	Primary Attributes (Min)	Primary Attributes (Max)	Cell Count Minimum	Utilized IC / Part	Type	Embedded	Secondary Attributes
Texas Instruments BQ77910ADBT	Lithium Ion Polymer	Over Current Over Temperature Over/Under Voltage Short Circuit	10	4	38-TFSOP 38-TSSOP	I2C	Surface Mount	Multi-Function Controller	85 °C	-25 °C	4.4 mm	0.173 in
Texas Instruments BQ77910EVM-001								Power Supply Supervisor Sequencer Tracker					Accessories Board(s)	Accessories Board	Li-Ion Li-Ion / Li-Pol (4 ~ 10 Cells) Li-Pol (4 ~ 10 Cells)	Li-Ion Li-Pol	10	4 Cells	10 Cells	4	bq77910	Power Management	No
Texas Instruments BQ77910DBT	Lithium Ion Polymer	Over Current Over Temperature Over/Under Voltage Short Circuit	10	4	38-TFSOP 38-TSSOP	I2C	Surface Mount	Multi-Function Controller	85 °C	-25 °C	4.4 mm	0.173 in
Texas Instruments BQ77910ADBTR	Lithium Ion Polymer	Over Current Over Temperature Over/Under Voltage Short Circuit	10	4	38-TFSOP 38-TSSOP	I2C	Surface Mount	Multi-Function Controller	85 °C	-25 °C	4.4 mm	0.173 in
Texas Instruments BQ77910DBTR	Lithium Ion Polymer	Over Current Over Temperature Over/Under Voltage Short Circuit	10	4	38-TFSOP 38-TSSOP	I2C	Surface Mount	Multi-Function Controller	85 °C	-25 °C	4.4 mm	0.173 in

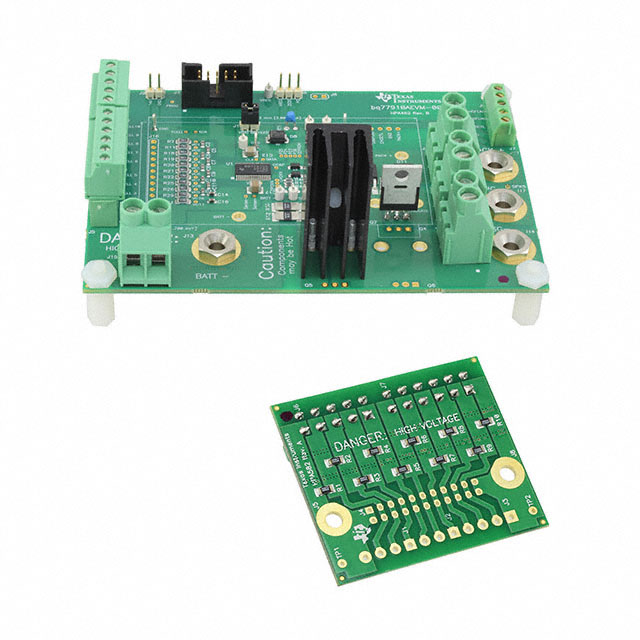

Texas Instruments BQ77910AEVM-001								Battery Charger						Board	Li-Ion Li-Ion / Li-Pol (4 ~ 10 Cells) Li-Pol (4 ~ 10 Cells)	Li-Ion Li-Pol	10	4 Cells	10 Cells	4	BQ77910A	Power Management	No	Graphical User Interface (GUI)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

BQ77910DBT | Datasheet
