XG5N-601

Active

Omron Electronics Inc-EMC Div

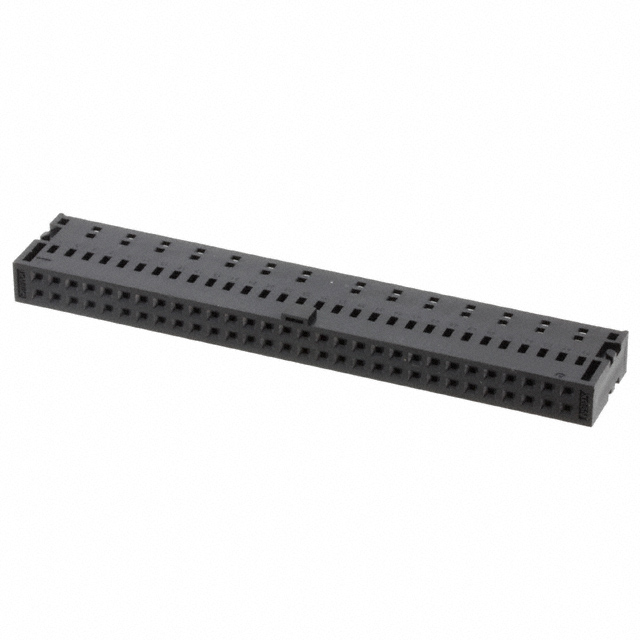

CONN RCPT HSG 60POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XG5N-601

Active

Omron Electronics Inc-EMC Div

CONN RCPT HSG 60POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XG5N-601	XG5N Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	-	Latch Lock/Eject Hooks
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	60	10 - 64
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

XG5N Series

CONN RCPT HSG 20POS 2.54MM

Part	Note	Number of Rows	Color	Row Spacing [x]	Row Spacing	Insulation Material	Connector Type	Contact Termination	Contact Type	Fastening Type	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Omron Electronics Inc-EMC Div XG5N-201-U	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket	Latch Lock/Eject Hooks	2.54 mm	0.1 in	20	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-101-U	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket	Latch Lock/Eject Hooks	2.54 mm	0.1 in	10	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-241	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	24	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-341	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	34	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-601	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	60	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-100-U	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket	Latch Lock/Eject Hooks	2.54 mm	0.1 in	10	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-601-U	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket	Latch Lock/Eject Hooks	2.54 mm	0.1 in	60	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-641	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	64	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-502	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	50	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-642	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	64	Free Hanging (In-Line)	105 ░C	-55 °C
