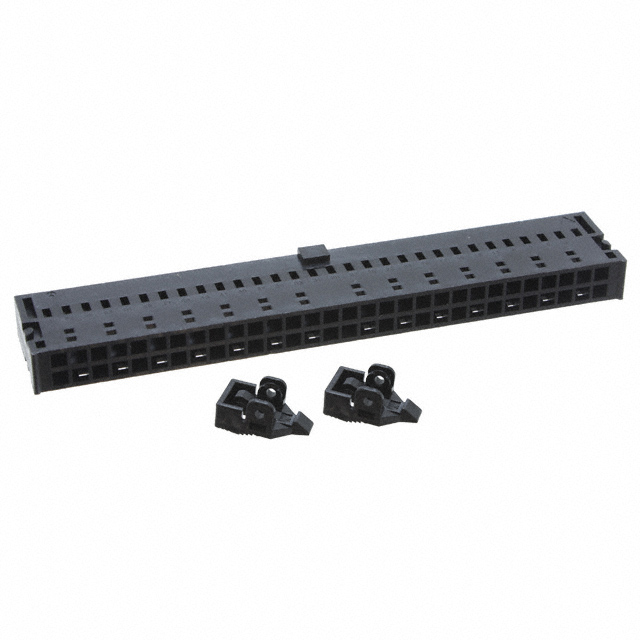

XG5N-601-U

Active

Omron Electronics Inc-EMC Div

CONN RCPT HSG 60POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XG5N-601-U

Active

Omron Electronics Inc-EMC Div

CONN RCPT HSG 60POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.76
		10	$ 4.41
		25	$ 3.98
		50	$ 3.69
		100	$ 3.42
		300	$ 3.05
		500	$ 2.89
		1000	$ 2.70
		2500	$ 2.47

Description

General part information

XG5N Series

60 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

Related Document

Specification	XG5N-601-U	XG5N Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	60	10 - 64
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

Part	Note	Number of Rows	Color	Row Spacing [x]	Row Spacing	Insulation Material	Connector Type	Contact Termination	Contact Type	Fastening Type	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Omron Electronics Inc-EMC Div XG5N-201-U	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket	Latch Lock/Eject Hooks	2.54 mm	0.1 in	20	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-101-U	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket	Latch Lock/Eject Hooks	2.54 mm	0.1 in	10	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-241	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	24	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-341	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	34	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-601	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	60	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-100-U	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket	Latch Lock/Eject Hooks	2.54 mm	0.1 in	10	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-601-U	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket	Latch Lock/Eject Hooks	2.54 mm	0.1 in	60	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-641	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	64	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-502	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	50	Free Hanging (In-Line)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-642	Contacts Not Included	2	Black	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Crimp	Female Socket		2.54 mm	0.1 in	64	Free Hanging (In-Line)	105 ░C	-55 °C
