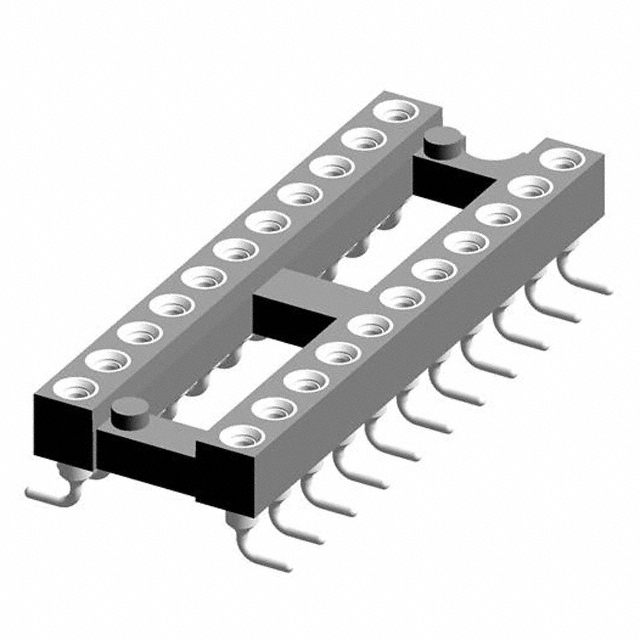

110-87-322-41-105101

Active

Preci-Dip

CONN IC DIP SOCKET 22POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

110-87-322-41-105101

Active

Preci-Dip

CONN IC DIP SOCKET 22POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1620	$ 1.31

Description

General part information

110-87 Series

22 (2 x 11) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Surface Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	110-87-322-41-105101	110-87 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame, No Center Bar
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Positions or Pins (Grid)	22	6 - 64
Number of Positions or Pins (Grid)	-	25
Number of Positions or Pins (Grid)	-	2
Number of Positions or Pins (Grid)	-	6 - 50
Number of Positions or Pins (Grid)	-	3 - 20
Number of Positions or Pins (Grid)	-	4
Number of Positions or Pins (Grid)	-	2 x 5, 2 x 16
Number of Positions or Pins (Grid)	-	10
Number of Positions or Pins (Grid)	-	32
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	0.118 in	0.118 - 0.125 in
Termination Post Length	3 mm	3 - 3.18 mm
Type	0.3 "	0.2 - 0.9 in
Type	7.62 mm	5.08 - 22.86 mm
Type	DIP	DIP

110-87 Series

22P DIP GOLD BERYLLIUM COPPER ALLOY -55℃~+125℃ 2.54MM PLUGIN IC / TRANSISTOR SOCKET ROHS

Part	Pitch - Post	Pitch - Post	Contact Resistance	Housing Material	Contact Finish Thickness - Mating	Material Flammability Rating	Type	Type	Type	Contact Finish - Post	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Mating	Termination Post Length	Termination Post Length	Features	Contact Material - Post [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 110-87-422-41-605101	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0	0.4 in	10.16 mm	DIP	Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Through Hole	Gold	3.18 mm	0.125 in	Open Frame	Brass	22
Preci-Dip 110-87-950-41-001101	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0	0.9 in	22.86 mm	DIP	Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Through Hole	Gold	3.18 mm	0.125 in	Open Frame	Brass		25	2	50
Preci-Dip 110-87-640-41-005101	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0	0.6 in	15.24 mm	DIP	Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Through Hole	Gold			Open Frame	Brass	40		2		20
Preci-Dip 110-87-314-41-005101	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0	0.3 "	7.62 mm	DIP	Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Through Hole	Gold			Open Frame	Brass	14
Preci-Dip 110-87-064-01-505101	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0				Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Through Hole	Gold			Open Frame	Brass	64
Preci-Dip 110-87-322-41-105101	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0	0.3 "	7.62 mm	DIP	Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Surface Mount	Gold	3 mm	0.118 in	Open Frame	Brass	22
Preci-Dip 110-87-424-41-005101	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0	0.4 in	10.16 mm	DIP	Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Through Hole	Gold			Open Frame	Brass	24
Preci-Dip 110-87-628-41-105191	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0	0.6 in	15.24 mm	DIP	Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Surface Mount	Gold	3 mm	0.118 in	Open Frame	Brass	28
Preci-Dip 110-87-642-41-105161	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0	0.6 in	15.24 mm	DIP	Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Surface Mount	Gold	3 mm	0.118 in	Open Frame	Brass	42
Preci-Dip 110-87-328-41-001101	2.54 mm	0.1 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	UL94 V-0	0.3 "	7.62 mm	DIP	Tin	Beryllium Copper	-55 °C	125 °C	1 A	Solder	0.1 in	2.54 mm	Through Hole	Gold	3.18 mm	0.125 in	Open Frame	Brass	28
