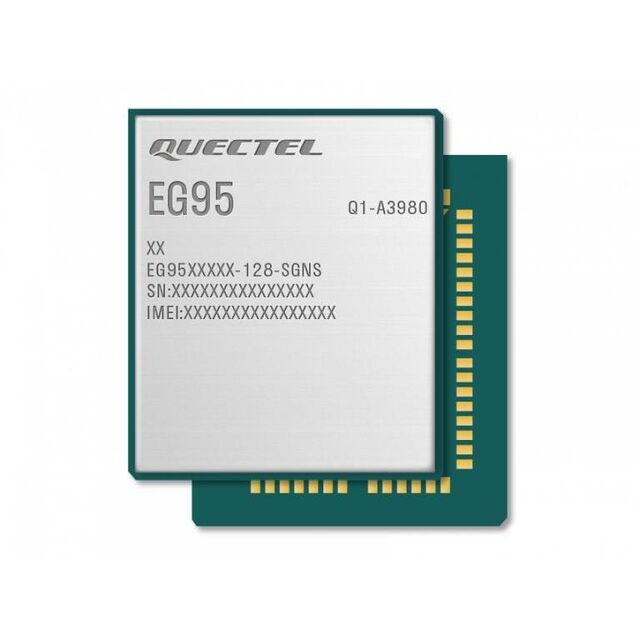

EG95EFBTEA-512-SNND

Active

CELLULAR MODULE, EDGE, GSM, LTE-FDD, WCDMA, 3.3V TO 4.3V, 29MM X 25MM X 2.3MM

Active

CELLULAR MODULE, EDGE, GSM, LTE-FDD, WCDMA, 3.3V TO 4.3V, 29MM X 25MM X 2.3MM

Description

General part information

Cellular EDGE, GPRS, HSPA+, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Surface Mount

Parameters and characteristics for this part

Part	Protocol	Data Rate	Serial Interfaces	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Current - Transmitting	RF Family/Standard	Antenna Type	Mounting Type	Package / Case	Current - Receiving	Utilized IC / Part
Quectel EG95EFBTEA-512-SNND	EDGE GPRS HSPA+ LTE UMTS WCDMA	150 MHz	I2C PCM SPI UART USB	4.3 V	3.3 V	75 °C	-35 °C	31 mA	Cellular	Antenna Not Included	Surface Mount	Module	31 mA
Quectel EG95NAFB-512-SGNS	BeiDou Galileo GLONASS GNSS GPRS GPS HSPA+ LTE UMTS WCDMA	150 MHz	I2C PCM SPI UART USB	4.3 V	3.3 V	75 °C	-35 °C	31 mA	Cellular Navigation	Antenna Not Included	Surface Mount	Module	31 mA	MDM9207-0
Quectel EG95NAFBTEA-512-SGNS	BeiDou Galileo GLONASS GNSS GPRS GPS HSPA+ LTE UMTS WCDMA	150 MHz	I2C PCM SPI UART USB	4.3 V	3.3 V	75 °C	-35 °C	31 mA	Cellular Navigation	Antenna Not Included	Surface Mount	Module	31 mA
Quectel EG95EFB-512-SNND	EDGE GPRS HSPA+ LTE UMTS WCDMA	150 MHz	I2C PCM SPI UART USB	4.3 V	3.3 V	75 °C	-35 °C	31 mA	Cellular	Antenna Not Included	Surface Mount	Module	31 mA	MDM9207-0
Quectel EG95EXGA-128-SGNS	BeiDou EDGE Galileo GLONASS GNSS GPRS GPS GSM HSPA+ LTE UMTS WCDMA	150 MHz	I2C PCM SPI UART USB	4.3 V	3.3 V	75 °C	-35 °C	31 mA	Cellular Navigation	Antenna Not Included	Surface Mount	Module	31 mA	MDM9207-0
Quectel EG95NAXGA-128-SGNS	BeiDou Galileo GLONASS GNSS GPRS GPS HSPA+ LTE UMTS WCDMA	150 MHz	I2C PCM SPI UART USB	4.3 V	3.3 V	75 °C	-35 °C	31 mA	Cellular Navigation	Antenna Not Included	Surface Mount	Module	31 mA	MDM9207-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
