ED24B5

Active

Sensata-Crydom

SSR RELAY SPST-NO 5A 24-280V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCE Declaration of Conformity ED Series Install Sheet

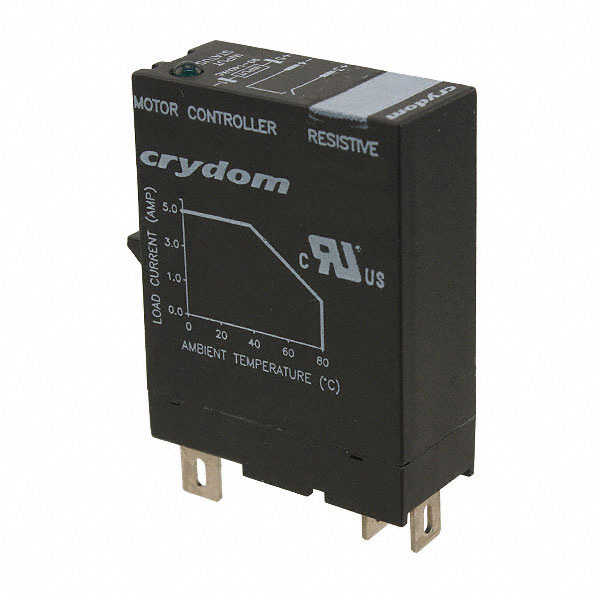

ED24B5

Active

Sensata-Crydom

SSR RELAY SPST-NO 5A 24-280V

Deep-Dive with AI

DocumentsCE Declaration of Conformity ED Series Install Sheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.43
		10	$ 23.27
		50	$ 22.21
		100	$ 21.56

Description

General part information

- Series

Solid State SPST-NO (1 Form A) Module

Documents

Technical documentation and resources

CE Declaration of Conformity

ED Series Install Sheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ED24B5	- Series

Approval Agency	cURus, CE, IEC	CSA, TUV, cURus, CE, CE, cURus, cULus, IEC, UL, VDE
Load Current	5 A	1.5 - 125 A
Mounting Type	Socketable	Chassis Mount, DIN Rail, Socketable, Through Hole
On-State Resistance (Max)	-	8 - 550 mOhms
Operating Temperature [Max]	80 C	40 - 100 °C
Operating Temperature [Min]	-30 ░C	-40 - -20 °C
Output Type	AC, Zero Cross	AC, Zero Cross, DC
Package / Case	Module	Hockey Puck, Module, 6-SIP, 4-SIP
Supplier Device Package	-	6-SIP, 4-SIP, 4-Mini SIP
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)	Screw Terminal, Plug In, Quick Connect - 0.187" (4.7mm), Quick Connect - 0.187" (4.7mm), PC Pin
Voltage - Input [Max]	140 VAC	8 - 280 V
Voltage - Input [Min]	90 VAC	3 - 90 V
Voltage - Load [Max]	280 V	60 - 660 V
Voltage - Load [Min]	24 V	0 - 80 V

- Series

SSR RELAY SPST-NO 40A 80-530V

...

Part	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Output Type	Mounting Type	Load Current	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	On-State Resistance (Max) [Max]
Sensata-Crydom D4840	CE, CSA, cURus, TUV	80 V	530 V	Screw Terminal	AC, Zero Cross	Chassis Mount	40 A	100 °C	-40 °C	32 V	3 V	Hockey Puck
Sensata-Crydom HD6090	CE, CSA, cURus, TUV	48 V	660 V	Screw Terminal	AC, Zero Cross	Chassis Mount	90 A	80 C	-40 °C	32 V	3 V	Hockey Puck
Sensata-Crydom D2D40	CE, cURus	1 V	200 V	Screw Terminal	DC	Chassis Mount	40 A	100 °C	-40 °C	32 V	3.5 V	Hockey Puck	50 mOhms
Sensata-Crydom CWU2450	CE, CSA, cURus, TUV	24 V	280 V	Screw Terminal	AC, Zero Cross	Chassis Mount	50 A	80 C	-40 °C	48 V, 280 VAC/DC	20 VAC/DC, 20 VDC	Hockey Puck
Sensata-Crydom DR10D24	CE, cULus	1 V	100 V	Screw Terminal	DC	DIN Rail	24 A	40 °C	-20 C	32 V	4 V	Module	26 mOhms
Sensata-Crydom HD4875	CE, CSA, cURus, TUV			Screw Terminal	AC, Zero Cross	Chassis Mount	75 A	80 C	-40 °C	32 V	3 V	Hockey Puck
Sensata-Crydom ED24B5	CE, cURus, IEC	24 V	280 V	Plug In, Quick Connect - 0.187" (4.7mm)	AC, Zero Cross	Socketable	5 A	80 C	-30 ░C	140 VAC	90 VAC	Module
Sensata-Crydom S218	CE, CSA, UL	20 V	140 V	Quick Connect - 0.187" (4.7mm)	AC, Zero Cross	Chassis Mount	8 A	80 C	-30 ░C	8 VDC	3.5 V	Module
Sensata-Crydom CWA4890	CE, CSA, cURus, TUV	48 V	660 V	Screw Terminal	AC, Zero Cross	Chassis Mount	90 A	80 C	-40 °C	280 VAC/DC	90 VAC	Hockey Puck
Sensata-Crydom S228C	CE, CSA, UL	40 V	280 V	Quick Connect - 0.187" (4.7mm)	AC, Zero Cross	Chassis Mount	8 A	80 C	-30 ░C	8 VDC	3.5 V	Module
