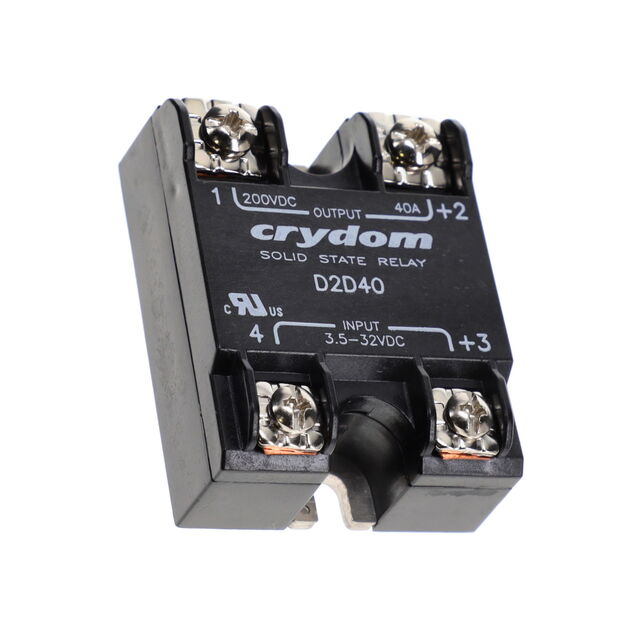

SSR, 200VDC/40A, 3.5-32VDC IN
Search across all available documentation for this part.
SSR, 200VDC/40A, 3.5-32VDC IN
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
Solid State SPST-NO (1 Form A) Hockey Puck
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | D2D40 | - Series |
|---|---|---|
| Approval Agency | CE, cURus | CSA, TUV, cURus, CE, CE, cURus, cULus, IEC, UL, VDE |
| Load Current | 40 A | 1.5 - 125 A |
| Mounting Type | Chassis Mount | Chassis Mount, DIN Rail, Socketable, Through Hole |
| On-State Resistance (Max) [Max] | 50 mOhms | 8 - 550 mOhms |
| Operating Temperature [Max] | 100 °C | 40 - 100 °C |
| Operating Temperature [Min] | -40 °C | -40 - -20 °C |
| Output Type | DC | AC, Zero Cross, DC |
| Package / Case | Hockey Puck | Hockey Puck, Module, 6-SIP, 4-SIP |
| Supplier Device Package | - | 6-SIP, 4-SIP, 4-Mini SIP |
| Termination Style | Screw Terminal | Screw Terminal, Plug In, Quick Connect - 0.187" (4.7mm), Quick Connect - 0.187" (4.7mm), PC Pin |
| Voltage - Input [Max] | 32 V | 8 - 280 V |
| Voltage - Input [Min] | 3.5 V | 3 - 90 V |
| Voltage - Load [Max] | 200 V | 60 - 660 V |
| Voltage - Load [Min] | 1 V | 0 - 80 V |
SSR RELAY SPST-NO 40A 80-530V
| Part | Approval Agency | Voltage - Load [Min] | Voltage - Load [Max] | Termination Style | Output Type | Mounting Type | Load Current | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Package / Case | On-State Resistance (Max) [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sensata-Crydom D4840 | CE, CSA, cURus, TUV | 80 V | 530 V | Screw Terminal | AC, Zero Cross | Chassis Mount | 40 A | 100 °C | -40 °C | 32 V | 3 V | Hockey Puck | ||
Sensata-Crydom HD6090 | CE, CSA, cURus, TUV | 48 V | 660 V | Screw Terminal | AC, Zero Cross | Chassis Mount | 90 A | 80 C | -40 °C | 32 V | 3 V | Hockey Puck | ||
Sensata-Crydom D2D40 | CE, cURus | 1 V | 200 V | Screw Terminal | DC | Chassis Mount | 40 A | 100 °C | -40 °C | 32 V | 3.5 V | Hockey Puck | 50 mOhms | |
Sensata-Crydom CWU2450 | CE, CSA, cURus, TUV | 24 V | 280 V | Screw Terminal | AC, Zero Cross | Chassis Mount | 50 A | 80 C | -40 °C | 48 V, 280 VAC/DC | 20 VAC/DC, 20 VDC | Hockey Puck | ||
Sensata-Crydom DR10D24 | CE, cULus | 1 V | 100 V | Screw Terminal | DC | DIN Rail | 24 A | 40 °C | -20 C | 32 V | 4 V | Module | 26 mOhms | |
Sensata-Crydom HD4875 | CE, CSA, cURus, TUV | Screw Terminal | AC, Zero Cross | Chassis Mount | 75 A | 80 C | -40 °C | 32 V | 3 V | Hockey Puck | ||||
Sensata-Crydom ED24B5 | CE, cURus, IEC | 24 V | 280 V | Plug In, Quick Connect - 0.187" (4.7mm) | AC, Zero Cross | Socketable | 5 A | 80 C | -30 ░C | 140 VAC | 90 VAC | Module | ||
Sensata-Crydom S218 | CE, CSA, UL | 20 V | 140 V | Quick Connect - 0.187" (4.7mm) | AC, Zero Cross | Chassis Mount | 8 A | 80 C | -30 ░C | 8 VDC | 3.5 V | Module | ||
Sensata-Crydom CWA4890 | CE, CSA, cURus, TUV | 48 V | 660 V | Screw Terminal | AC, Zero Cross | Chassis Mount | 90 A | 80 C | -40 °C | 280 VAC/DC | 90 VAC | Hockey Puck | ||
Sensata-Crydom S228C | CE, CSA, UL | 40 V | 280 V | Quick Connect - 0.187" (4.7mm) | AC, Zero Cross | Chassis Mount | 8 A | 80 C | -30 ░C | 8 VDC | 3.5 V | Module |
