D01-9951642
ObsoleteHarwin Inc.
CONN SOCKET SIP 16POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D01-9951642
ObsoleteHarwin Inc.
CONN SOCKET SIP 16POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D01-9951642 | D01-995 Series |
|---|---|---|
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 10 çin | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm | 0.25 çm |
| Contact Finish Thickness - Post | 196.9 µin | 196.9 µin |
| Contact Finish Thickness - Post | 5 µm | 5 µm |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Contact Material - Post [custom] | Brass | Brass |
| Contact Resistance | 10 mOhm | 10 mOhm |
| Current Rating (Amps) | 1 A | 1 A |
| Housing Material | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions or Pins (Grid) | 16 | 4 - 16 |
| Number of Positions or Pins (Grid) | - | 1 x 12, 1 x 4 |
| Number of Positions or Pins (Grid) | - | 1 x 32 |
| Number of Positions or Pins (Grid) | - | 32 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Pitch - Post | 2.54 mm | 2.54 mm |
| Pitch - Post | 0.1 in | 0.1 in |
| Termination | Wire Wrap | Wire Wrap |
| Termination Post Length [x] | 0.51 in | 0.51 in |
| Termination Post Length [x] | 12.95 mm | 12.95 mm |
| Type | SIP | SIP |
D01-995 Series
14 POS. FEMALE SIL VERTICAL WIRE WRAP IC STRIP ROHS COMPLIANT: YES
| Part | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Mounting Type | Pitch - Post | Pitch - Post | Contact Finish - Post | Contact Resistance | Contact Material - Mating | Number of Positions or Pins (Grid) | Material Flammability Rating | Contact Material - Post [custom] | Housing Material | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Termination Post Length [x] | Termination Post Length [x] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. D01-9951442 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | 14 | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm | |||
Harwin Inc. D01-9951242 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | 12 | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm | 1 x 12 | ||
Harwin Inc. D01-9950542 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | 5 | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm | |||
Harwin Inc. D01-9950842 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | 8 | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm | |||
Harwin Inc. D01-9950442 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | 4 | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm | 1 x 4 | ||
Harwin Inc. D01-9950642 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm | ||||
Harwin Inc. D01-9951642 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | 16 | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm | |||
Harwin Inc. D01-9950942 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | 9 | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm | |||
Harwin Inc. D01-9951042 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | 10 | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm | |||
Harwin Inc. D01-9950742 | 0.1 in | 2.54 mm | Gold | Through Hole | 2.54 mm | 0.1 in | Tin | 10 mOhm | Beryllium Copper | 7 | UL94 V-0 | Brass | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 1 A | 196.9 µin | 5 µm | 10 çin | 0.25 çm | SIP | Wire Wrap | -55 °C | 125 °C | 0.51 in | 12.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
D01-995 Series

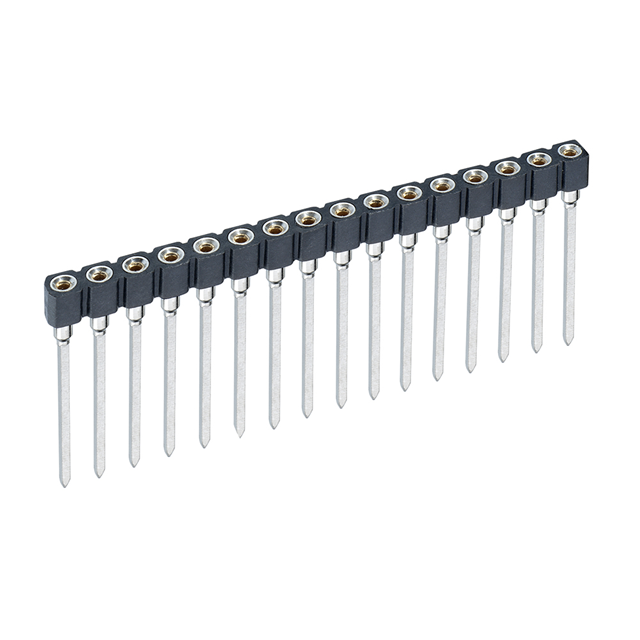

16 (1 x 16) Pos SIP Socket Gold Through Hole
