50.021

Active

Jacob GmbH

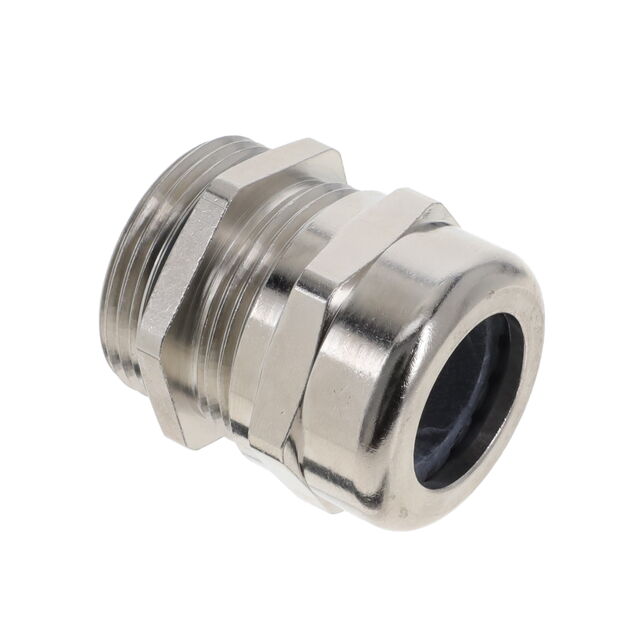

CABLE GLND 13-18.01MM PG21 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50.021

Active

Jacob GmbH

CABLE GLND 13-18.01MM PG21 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.62
		10	$ 8.66
		25	$ 8.16
		50	$ 7.95
		100	$ 7.74
		250	$ 6.90
		500	$ 6.48
		1000	$ 5.73

Description

General part information

- Series

Cable Gland Brass, Nickel Plated PG21 Silver

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	50.021	- Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	25 mm
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in	0.256 - 1.496 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm	6.5 - 38 mm
Outside Cable Diameter (Min)	13 mm	13 mm
Outside Cable Diameter (Min)	-	3 - 30 mm
Outside Cable Diameter (Min)	-	5 mm
Outside Cable Diameter (Min)	-	0.197 in
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in	0.118 - 1.181 in
Thread Length	7 mm	6 - 10 mm
Thread Length	0.276 in	0.236 - 0.394 in
Thread Size	PG21	PG29, PG13.5, PG21, PG7, PG11, PG16, PG42
Type	Cable Gland	Cable Gland

- Series

CABLE GLND 18.01-25MM PG29 BRASS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Thread Size	Material	Color	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Type	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Jacob GmbH 50.029	100 °C	-40 °C	0.984 in	25 mm	PG29	Brass, Nickel Plated	Silver	O-Ring, Seal	0.709 in	18.01 mm	8 mm	0.315 in	Cable Gland	IP68 - Dust Tight, Waterproof
Jacob GmbH 50.013	100 °C	-40 °C	0.472 in		PG13.5	Brass, Nickel Plated	Silver	O-Ring, Seal	0.236 in	6 mm	6.5 mm	0.256 in	Cable Gland	IP68 - Dust Tight, Waterproof	12 mm
Jacob GmbH 50.021	100 °C	-40 °C	0.709 in		PG21	Brass, Nickel Plated	Silver	O-Ring, Seal	0.512 in		7 mm	0.276 in	Cable Gland	IP68 - Dust Tight, Waterproof	18.01 mm	13 mm
Jacob GmbH 50.007	100 °C	-40 °C	0.256 "		PG7	Brass, Nickel Plated	Silver	O-Ring, Seal	0.118 in	3 mm			Cable Gland	IP68 - Dust Tight, Waterproof	6.5 mm
Jacob GmbH 50.011	100 °C	-40 °C	0.394 "		PG11	Brass, Nickel Plated	Silver	O-Ring, Seal			6 mm	0.236 in	Cable Gland	IP68 - Dust Tight, Waterproof	10 mm		5 mm	0.197 in
Jacob GmbH 50.016	100 °C	-40 °C			PG16	Brass, Nickel Plated	Silver	O-Ring, Seal	0.394 in	10 mm	6.5 mm	0.256 in	Cable Gland	IP68 - Dust Tight, Waterproof					14 mm	0.551 "
Jacob GmbH 50.042	100 °C	-40 °C	1.496 in		PG42	Brass, Nickel Plated	Silver	O-Ring, Seal	1.181 in	30 mm	10 mm	0.394 in	Cable Gland	IP68 - Dust Tight, Waterproof	38 mm
