50.029

Active

Jacob GmbH

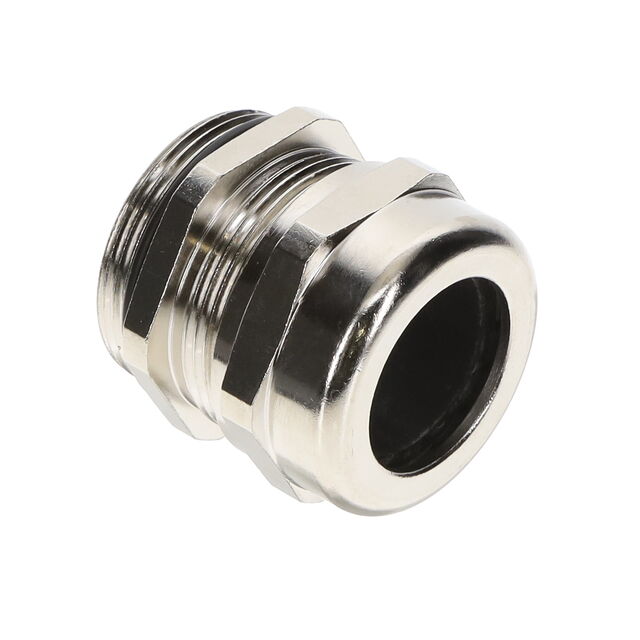

CABLE GLND 18.01-25MM PG29 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50.029

Active

Jacob GmbH

CABLE GLND 18.01-25MM PG29 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	50.029	- Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	25 mm	25 mm
Outside Cable Diameter (Max)	-	6.5 - 38 mm
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in	0.256 - 1.496 in
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min)	-	5 mm
Outside Cable Diameter (Min)	-	0.197 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in	0.118 - 1.181 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm	3 - 30 mm
Thread Length	8 mm	6 - 10 mm
Thread Length	0.315 in	0.236 - 0.394 in
Thread Size	PG29	PG29, PG13.5, PG21, PG7, PG11, PG16, PG42
Type	Cable Gland	Cable Gland

- Series

CABLE GLND 18.01-25MM PG29 BRASS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Thread Size	Material	Color	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Type	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Jacob GmbH 50.029	100 °C	-40 °C	0.984 in	25 mm	PG29	Brass, Nickel Plated	Silver	O-Ring, Seal	0.709 in	18.01 mm	8 mm	0.315 in	Cable Gland	IP68 - Dust Tight, Waterproof
Jacob GmbH 50.013	100 °C	-40 °C	0.472 in		PG13.5	Brass, Nickel Plated	Silver	O-Ring, Seal	0.236 in	6 mm	6.5 mm	0.256 in	Cable Gland	IP68 - Dust Tight, Waterproof	12 mm
Jacob GmbH 50.021	100 °C	-40 °C	0.709 in		PG21	Brass, Nickel Plated	Silver	O-Ring, Seal	0.512 in		7 mm	0.276 in	Cable Gland	IP68 - Dust Tight, Waterproof	18.01 mm	13 mm
Jacob GmbH 50.007	100 °C	-40 °C	0.256 "		PG7	Brass, Nickel Plated	Silver	O-Ring, Seal	0.118 in	3 mm			Cable Gland	IP68 - Dust Tight, Waterproof	6.5 mm
Jacob GmbH 50.011	100 °C	-40 °C	0.394 "		PG11	Brass, Nickel Plated	Silver	O-Ring, Seal			6 mm	0.236 in	Cable Gland	IP68 - Dust Tight, Waterproof	10 mm		5 mm	0.197 in
Jacob GmbH 50.016	100 °C	-40 °C			PG16	Brass, Nickel Plated	Silver	O-Ring, Seal	0.394 in	10 mm	6.5 mm	0.256 in	Cable Gland	IP68 - Dust Tight, Waterproof					14 mm	0.551 "
Jacob GmbH 50.042	100 °C	-40 °C	1.496 in		PG42	Brass, Nickel Plated	Silver	O-Ring, Seal	1.181 in	30 mm	10 mm	0.394 in	Cable Gland	IP68 - Dust Tight, Waterproof	38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.82
		10	$ 11.40
		25	$ 10.31
		50	$ 9.58
		100	$ 8.91
		250	$ 8.30

Description

General part information

- Series

Cable Gland Brass, Nickel Plated PG29 Silver
