LP5890 Series

Part	Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Current - Output / Channel	Utilized IC / Part	Non-Isolated Output Count	Output Type	Total Output Count	Frequency (Min)	Frequency (Max)	Package Name	Package Width	Package Length	Mounting Type	Internal Switch(s)	Topology	Dimming	Voltage - Supply (Min)	Voltage - Supply (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Type	Number of Outputs	Package / Case
Texas Instruments LP5890EVM	Board	2.5 V	5.5 V	20 mA	LP5890	2 count	Non-Isolated	2
Texas Instruments LP5890ZXLR				20 mA					40 MHz	160 MHz	96-NFBGA	6 mm	6 mm	Surface Mount	No	Constant Current	PWM	2.5 V	5.5 V	85 °C	-40 °C	Lighting Signage	Linear	48	96-TFBGA

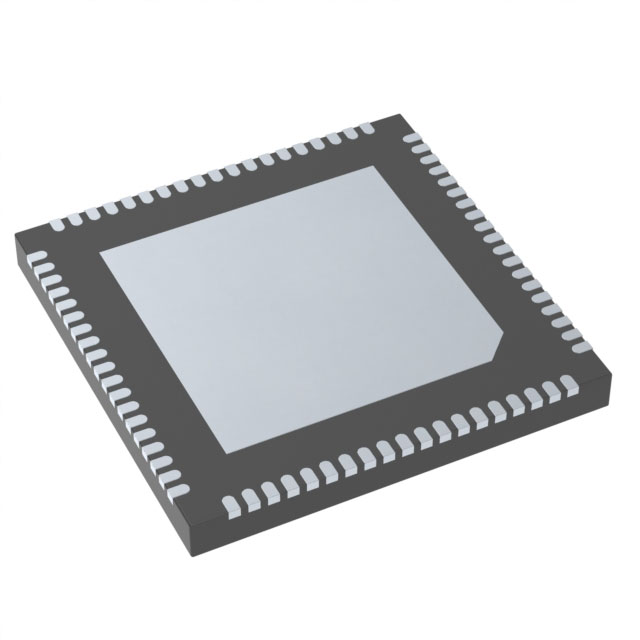

Texas Instruments LP5890RRFR				20 mA					40 MHz	160 MHz	76-VQFN	9 mm	9 mm	Surface Mount	No	Constant Current	No	2.5 V	5.5 V	85 °C	-40 °C	Lighting Signage	Linear	48	76-VFQFN Exposed Pad
