AVH22MSSFEA122604

Active

TE Connectivity Raychem Cable Protection

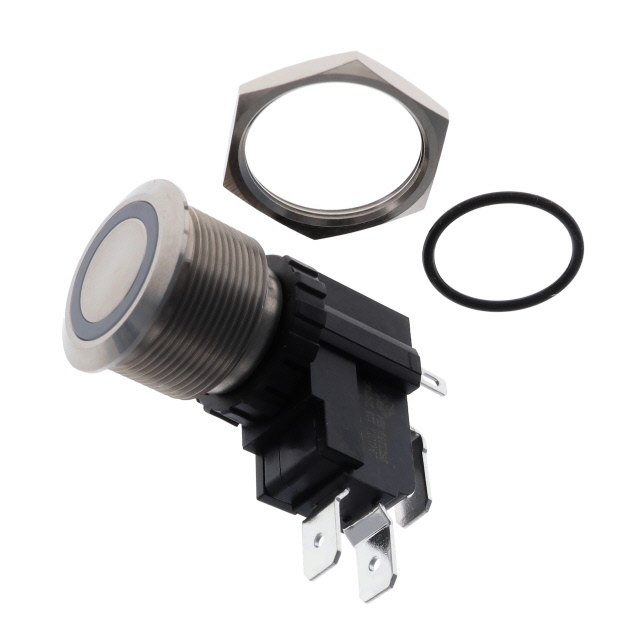

SWITCH PUSHBUTTON SPDT 26A 125V

Deep-Dive with AI

Search across all available documentation for this part.

AVH22MSSFEA122604

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 26A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AVH22MSSFEA122604

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	26 A
Electrical Life	10000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.2 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

ALCOSWITCH AVH22 Series

...

Part	Termination Style	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Actuator Marking	Illumination Voltage (Nominal)	Actuator Type	Electrical Life	Mechanical Life	Mounting Type	Circuit	Switch Function	Type	Current Rating (Amps)	Color - Actuator/Cap	Voltage Rating - AC	Illumination Type, Color
TE Connectivity Raychem Cable Protection AVH22LSSFE7242604	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	No Marking	24 V	Button Flush Round	10000 Cycles	500000 Cycles	Panel Mount Front	SPDT	On-On	Anti-Vandal Illuminated	26 A	Silver	125 V	Blue LED
TE Connectivity Raychem Cable Protection AVH22MSSFE5241604	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	No Marking	24 V	Button Flush Round	50000 Cycles	1000000 Cycles	Panel Mount Front	SPDT	On-Mom	Anti-Vandal Illuminated	16 A	Silver	125 V	LED Yellow
TE Connectivity Raychem Cable Protection AVH22MSSFE11241604	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	Power Symbol	24 V	Button Flush Round	50000 Cycles	1000000 Cycles	Panel Mount Front	SPDT	On-Mom	Anti-Vandal Illuminated	16 A	Silver	125 V	LED White
TE Connectivity Raychem Cable Protection AVH22MSSFEB121604	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	No Marking	12 VDC	Button Flush Round	50000 Cycles	1000000 Cycles	Panel Mount Front	SPDT	On-Mom	Anti-Vandal Illuminated	16 A	Silver	125 V	Blue/Red LED
TE Connectivity Raychem Cable Protection AVH22LSSFE1A121604	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	Power Symbol	12 VDC	Button Flush Round	50000 Cycles	500000 Cycles	Panel Mount Front	SPDT	On-On	Anti-Vandal Illuminated	16 A	Silver	125 V	Green/Red LED
TE Connectivity Raychem Cable Protection AVH22MSSFE1122604	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	Power Symbol	12 VDC	Button Flush Round	10000 Cycles	1000000 Cycles	Panel Mount Front	SPDT	On-Mom	Anti-Vandal Illuminated	26 A	Silver	125 V	LED White
TE Connectivity Raychem Cable Protection AVH22MSSFE13242604	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	Power Symbol	24 V	Button Flush Round	10000 Cycles	1000000 Cycles	Panel Mount Front	SPDT	On-Mom	Anti-Vandal Illuminated	26 A	Silver	125 V	LED Red
TE Connectivity Raychem Cable Protection AVH22LSSFE17122604	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	Power Symbol	12 VDC	Button Flush Round	10000 Cycles	500000 Cycles	Panel Mount Front	SPDT	On-On	Anti-Vandal Illuminated	26 A	Silver	125 V	Blue LED
TE Connectivity Raychem Cable Protection AVH22LSSFE1B241604	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	Power Symbol	24 V	Button Flush Round	50000 Cycles	500000 Cycles	Panel Mount Front	SPDT	On-On	Anti-Vandal Illuminated	16 A	Silver	125 V	Blue/Red LED
TE Connectivity Raychem Cable Protection AVH22MSSFEA122604	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight Waterproof	-25 °C	85 °C	22.2 mm	No Marking	12 VDC	Button Flush Round	10000 Cycles	1000000 Cycles	Panel Mount Front	SPDT	On-Mom	Anti-Vandal Illuminated	26 A	Silver	125 V	Green/Red LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.74
		10	$ 18.83
		30	$ 18.63

Description

General part information

ALCOSWITCH AVH22 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
