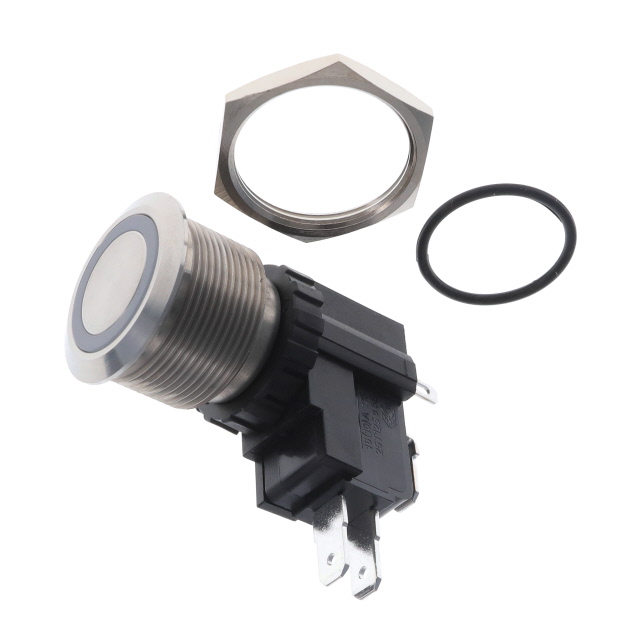

AVH22MSSFEB121604
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
AVH22MSSFEB121604
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON SPDT 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AVH22MSSFEB121604 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 16 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | Blue/Red, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.2 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V |
ALCOSWITCH AVH22 Series
...
| Part | Termination Style | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [diameter] | Actuator Marking | Illumination Voltage (Nominal) | Actuator Type | Electrical Life | Mechanical Life | Mounting Type | Circuit | Switch Function | Type | Current Rating (Amps) | Color - Actuator/Cap | Voltage Rating - AC | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | No Marking | 24 V | Button Flush Round | 10000 Cycles | 500000 Cycles | Panel Mount Front | SPDT | On-On | Anti-Vandal Illuminated | 26 A | Silver | 125 V | Blue LED |
TE Connectivity Raychem Cable Protection | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | No Marking | 24 V | Button Flush Round | 50000 Cycles | 1000000 Cycles | Panel Mount Front | SPDT | On-Mom | Anti-Vandal Illuminated | 16 A | Silver | 125 V | LED Yellow |
TE Connectivity Raychem Cable Protection | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | Power Symbol | 24 V | Button Flush Round | 50000 Cycles | 1000000 Cycles | Panel Mount Front | SPDT | On-Mom | Anti-Vandal Illuminated | 16 A | Silver | 125 V | LED White |
TE Connectivity Raychem Cable Protection | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | No Marking | 12 VDC | Button Flush Round | 50000 Cycles | 1000000 Cycles | Panel Mount Front | SPDT | On-Mom | Anti-Vandal Illuminated | 16 A | Silver | 125 V | Blue/Red LED |
TE Connectivity Raychem Cable Protection | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | Power Symbol | 12 VDC | Button Flush Round | 50000 Cycles | 500000 Cycles | Panel Mount Front | SPDT | On-On | Anti-Vandal Illuminated | 16 A | Silver | 125 V | Green/Red LED |
TE Connectivity Raychem Cable Protection | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | Power Symbol | 12 VDC | Button Flush Round | 10000 Cycles | 1000000 Cycles | Panel Mount Front | SPDT | On-Mom | Anti-Vandal Illuminated | 26 A | Silver | 125 V | LED White |
TE Connectivity Raychem Cable Protection | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | Power Symbol | 24 V | Button Flush Round | 10000 Cycles | 1000000 Cycles | Panel Mount Front | SPDT | On-Mom | Anti-Vandal Illuminated | 26 A | Silver | 125 V | LED Red |
TE Connectivity Raychem Cable Protection | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | Power Symbol | 12 VDC | Button Flush Round | 10000 Cycles | 500000 Cycles | Panel Mount Front | SPDT | On-On | Anti-Vandal Illuminated | 26 A | Silver | 125 V | Blue LED |
TE Connectivity Raychem Cable Protection | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | Power Symbol | 24 V | Button Flush Round | 50000 Cycles | 500000 Cycles | Panel Mount Front | SPDT | On-On | Anti-Vandal Illuminated | 16 A | Silver | 125 V | Blue/Red LED |
TE Connectivity Raychem Cable Protection | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | -25 °C | 85 °C | 22.2 mm | No Marking | 12 VDC | Button Flush Round | 10000 Cycles | 1000000 Cycles | Panel Mount Front | SPDT | On-Mom | Anti-Vandal Illuminated | 26 A | Silver | 125 V | Green/Red LED |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.46 | |
| 10 | $ 14.95 | |||
| 30 | $ 14.78 | |||
Description
General part information
ALCOSWITCH AVH22 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Documents
Technical documentation and resources
No documents available
