AFFC-100-06-076-11

Active

Assmann WSW Components

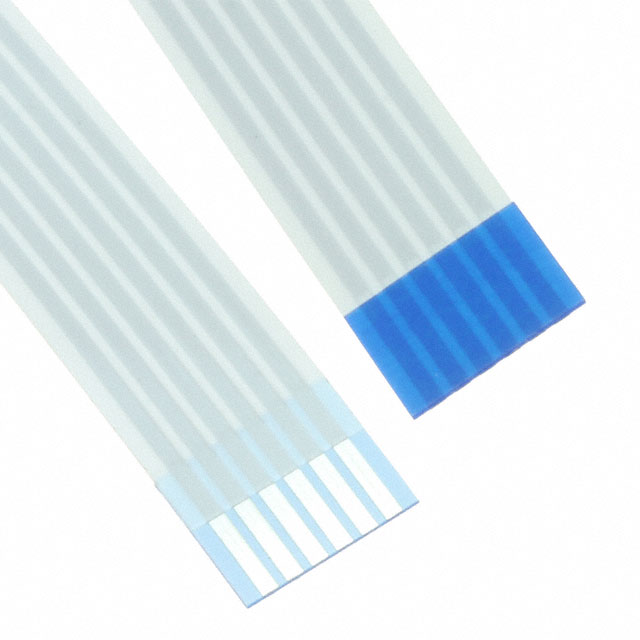

CABLE FFC/FPC 6POS 1MM 3"

Search across all available documentation for this part.

Active

Assmann WSW Components

CABLE FFC/FPC 6POS 1MM 3"

Technical Specifications

Parameters and characteristics for this part

Specification	AFFC-100-06-076-11

Cable Type	FPC, FFC
Length	3 in
Length	76.2 mm
Length - Exposed Ends [x]	3.5 mm
Length - Exposed Ends [x]	0.138 in
Number of Conductors	6
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Termination Style	Length	Length	Pitch [x]	Pitch [x]	Number of Conductors	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length [x]
Assmann WSW Components AFFC-100-28-076-11	Backers on Both Sides Top on Both Sides	3 in	76.2 mm	0.039 in	1 mm	28	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-21-457-11	Backers on Both Sides Top on Both Sides	18 "	457.2 mm	0.039 in	1 mm	21	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-04-102-11	Backers on Both Sides Top on Both Sides	4 in	101.6 mm	0.039 in	1 mm	4	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-28-127-11	Backers on Both Sides Top on Both Sides	5 in	127 mm	0.039 in	1 mm	28	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-09-153-11	Backers on Both Sides Top on Both Sides	6 in	152.4 mm	0.039 in	1 mm	9	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-04-127-11	Backers on Both Sides Top on Both Sides	5 in	127 mm	0.039 in	1 mm	4	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-10-051-11	Backers on Both Sides Top on Both Sides	2 in	50.8 mm	0.039 in	1 mm	10	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-06-076-11	Backers on Both Sides Top on Both Sides	3 in	76.2 mm	0.039 in	1 mm	6	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-15-254-11	Backers on Both Sides Top on Both Sides		254 mm	0.039 in	1 mm	15	FFC FPC	3.5 mm	0.138 in	10 in
Assmann WSW Components AFFC-100-09-457-11	Backers on Both Sides Top on Both Sides	18 "	457.2 mm	0.039 in	1 mm	9	FFC FPC	3.5 mm	0.138 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position FFC, FPC Cable 0.039" (1.00mm) 3.000" (76.20mm)
