AFFC-100-10-051-11

Active

Assmann WSW Components

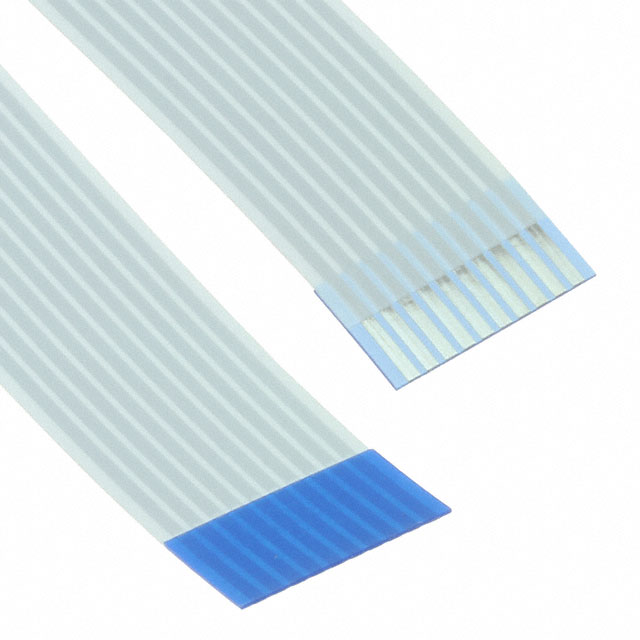

CABLE FFC/FPC 10POS 1MM 2"

Search across all available documentation for this part.

Active

Assmann WSW Components

CABLE FFC/FPC 10POS 1MM 2"

Technical Specifications

Parameters and characteristics for this part

Specification	AFFC-100-10-051-11

Cable Type	FPC, FFC
Length	50.8 mm
Length	2 in
Length - Exposed Ends [x]	3.5 mm
Length - Exposed Ends [x]	0.138 in
Number of Conductors	10
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Termination Style	Length	Length	Pitch [x]	Pitch [x]	Number of Conductors	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length [x]
Assmann WSW Components AFFC-100-28-076-11	Backers on Both Sides Top on Both Sides	3 in	76.2 mm	0.039 in	1 mm	28	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-21-457-11	Backers on Both Sides Top on Both Sides	18 "	457.2 mm	0.039 in	1 mm	21	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-04-102-11	Backers on Both Sides Top on Both Sides	4 in	101.6 mm	0.039 in	1 mm	4	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-28-127-11	Backers on Both Sides Top on Both Sides	5 in	127 mm	0.039 in	1 mm	28	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-09-153-11	Backers on Both Sides Top on Both Sides	6 in	152.4 mm	0.039 in	1 mm	9	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-04-127-11	Backers on Both Sides Top on Both Sides	5 in	127 mm	0.039 in	1 mm	4	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-10-051-11	Backers on Both Sides Top on Both Sides	2 in	50.8 mm	0.039 in	1 mm	10	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-06-076-11	Backers on Both Sides Top on Both Sides	3 in	76.2 mm	0.039 in	1 mm	6	FFC FPC	3.5 mm	0.138 in
Assmann WSW Components AFFC-100-15-254-11	Backers on Both Sides Top on Both Sides		254 mm	0.039 in	1 mm	15	FFC FPC	3.5 mm	0.138 in	10 in
Assmann WSW Components AFFC-100-09-457-11	Backers on Both Sides Top on Both Sides	18 "	457.2 mm	0.039 in	1 mm	9	FFC FPC	3.5 mm	0.138 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position FFC, FPC Cable 0.039" (1.00mm) 2.000" (50.80mm)
