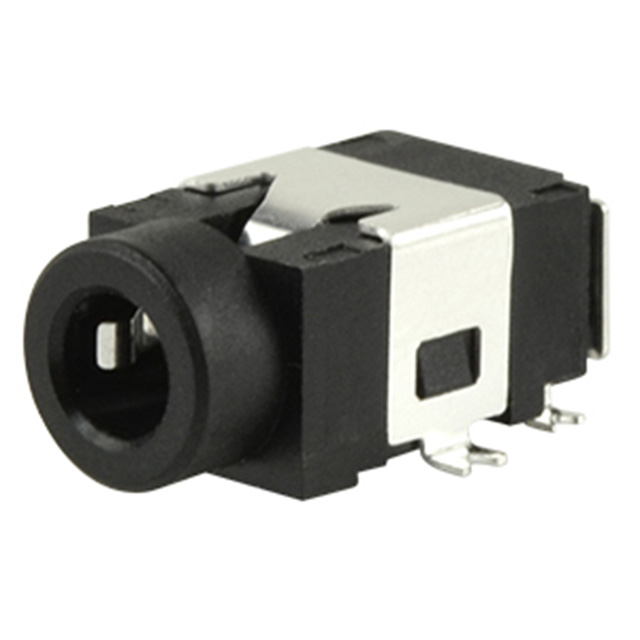

SJ2-3594A-SMT-TR

Active

CUI Devices

AUDIO JACK, 3.5 MM, RT, 4 CONDUC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJ2-3594A-SMT-TR

Active

CUI Devices

AUDIO JACK, 3.5 MM, RT, 4 CONDUC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJ2-3594A-SMT-TR

Actual Diameter [diameter]	0.142 in
Actual Diameter [diameter]	3.6 mm
Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy
Current Rating (Amps)	1 A
Features	Board Guide
Gender	Female
Housing Material	Polyamide (PA10T), Nylon 10T
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Mating Length/Depth	0.551 in
Mating Length/Depth	14 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts [custom]	4
Number of Positions/Contacts [custom]	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Voltage - Rated	12 VDC

SJ2-35 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating [custom]	Connector Type	Voltage - Rated	Gender	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material	Housing Material	Body Color	Current Rating (Amps)	Signal Lines	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Mating Length/Depth	Mating Length/Depth	Internal Switch(s)	Termination	Shielding	Mounting Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Features	Signal Lines	Number of Positions/Contacts
CUI Devices SJ2-3583B-SMT-TR	-25 °C	85 °C	Silver	Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Brass Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A	Stereo	0.141 "	0.125 "	3.5 mm	0.551 in	14 mm	Single Switch	Solder	Unshielded	Surface Mount Right Angle	3	4
CUI Devices SJ2-35863B1-SMT-TR	-25 °C	85 °C	Silver	Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A	Stereo	0.141 "	0.125 "	3.5 mm	0.551 in	14 mm	Single Switch	Solder	Unshielded	Surface Mount Right Angle	4	5	Board Guide
CUI Devices SJ2-3573A-SMT-TR	-25 °C	85 °C	Silver	Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A	Stereo	0.141 "	0.125 "	3.5 mm	0.551 in	14 mm		Solder	Unshielded	Surface Mount Right Angle	3	3	Board Guide
CUI Devices SJ2-35364B-SMT-TR	-25 °C	85 °C	Silver	Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A	Stereo	0.141 "	0.125 "	3.5 mm	0.551 in	14 mm	Single Switch	Solder	Unshielded	Surface Mount Right Angle	4	5
CUI Devices SJ2-3544A-SMT-TR	-25 °C	85 °C	Gold	Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A		0.141 "	0.125 "	3.5 mm	0.551 in	14 mm		Solder	Unshielded	Surface Mount Right Angle	5 Conductors	5		5 Conductor
CUI Devices SJ2-3594A-SMT-TR	-25 °C	85 °C		Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A	Stereo	0.141 "	0.125 "	3.5 mm	0.551 in	14 mm		Solder	Unshielded	Surface Mount Right Angle	4	4	Board Guide
CUI Devices SJ2-3592B-SMT-TR	-25 °C	85 °C	Silver	Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Brass Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A	Mono	0.141 "	0.125 "	3.5 mm	0.551 in	14 mm	Single Switch	Solder	Unshielded	Surface Mount Right Angle			Board Guide		2 Conductors 3 Conductors
CUI Devices SJ2-35654A-SMT-TR	-25 °C	85 °C	Gold	Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A		0.141 "	0.125 "	3.5 mm	0.551 in	14 mm		Solder	Unshielded	Board Cutout Right Angle Surface Mount	5 Conductors	5		5 Conductor
CUI Devices SJ2-35863A-SMT-TR	-25 °C	85 °C	Silver	Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A	Stereo	0.141 "	0.125 "	3.5 mm	0.551 in	14 mm		Solder	Unshielded	Surface Mount Right Angle	3	3	Board Guide
CUI Devices SJ2-35984D-SMT-TR	-25 °C	85 °C	Gold	Phone Jack	12 VDC	Female	0.142 in	3.6 mm	Brass Copper Alloy	Polyamide (PA10T) Nylon 10T	Black	1 A	Stereo	0.141 "	0.125 "	3.5 mm	0.551 in	14 mm	Two Switches	Solder	Unshielded	Surface Mount Right Angle	4	6	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.42
		10	$ 1.20
		25	$ 1.15
		50	$ 1.13
		100	$ 1.08
		250	$ 0.98
	Digi-Reel®	1	$ 1.42
		10	$ 1.20
		25	$ 1.15
		50	$ 1.13
		100	$ 1.08
		250	$ 0.98
	Tape & Reel (TR)	500	$ 0.88
		1000	$ 0.78
		1500	$ 0.73
		2500	$ 0.71
		5000	$ 0.69
		12500	$ 0.64

Description

General part information

SJ2-35 Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
