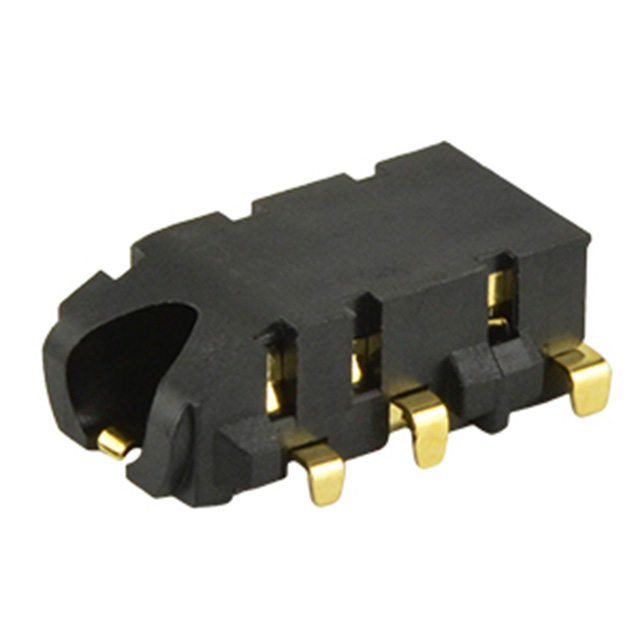

SJ2-3544A-SMT-TR
ObsoleteCUI Devices
AUDIO JACK, 3.5 MM, RT, 5 CONDUC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SJ2-3544A-SMT-TR
ObsoleteCUI Devices
AUDIO JACK, 3.5 MM, RT, 5 CONDUC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SJ2-3544A-SMT-TR |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 1 A |
| Gender | Female |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | False |
| Mating Length/Depth | 0.551 in |
| Mating Length/Depth | 14 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts [custom] | 5 Conductors |
| Number of Positions/Contacts [custom] | 5 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | 5 Conductor |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
SJ2-35 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating [custom] | Connector Type | Voltage - Rated | Gender | Actual Diameter [diameter] | Actual Diameter [diameter] | Contact Material | Housing Material | Body Color | Current Rating (Amps) | Signal Lines | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Mating Length/Depth | Mating Length/Depth | Internal Switch(s) | Termination | Shielding | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Features | Internal Switch(s) | Signal Lines | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | -25 °C | 85 °C | Silver | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Brass Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | Stereo | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Single Switch | Solder | Unshielded | Surface Mount Right Angle | 3 | 4 | ||||
CUI Devices | -25 °C | 85 °C | Silver | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | Stereo | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Single Switch | Solder | Unshielded | Surface Mount Right Angle | 4 | 5 | Board Guide | |||
CUI Devices | -25 °C | 85 °C | Silver | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | Stereo | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Solder | Unshielded | Surface Mount Right Angle | 3 | 3 | Board Guide | ||||
CUI Devices | -25 °C | 85 °C | Silver | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | Stereo | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Single Switch | Solder | Unshielded | Surface Mount Right Angle | 4 | 5 | ||||
CUI Devices | -25 °C | 85 °C | Gold | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Solder | Unshielded | Surface Mount Right Angle | 5 Conductors | 5 | 5 Conductor | |||||
CUI Devices | -25 °C | 85 °C | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | Stereo | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Solder | Unshielded | Surface Mount Right Angle | 4 | 4 | Board Guide | |||||
CUI Devices | -25 °C | 85 °C | Silver | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Brass Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | Mono | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Single Switch | Solder | Unshielded | Surface Mount Right Angle | Board Guide | 2 Conductors 3 Conductors | ||||
CUI Devices | -25 °C | 85 °C | Gold | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Solder | Unshielded | Board Cutout Right Angle Surface Mount | 5 Conductors | 5 | 5 Conductor | |||||
CUI Devices | -25 °C | 85 °C | Silver | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | Stereo | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Solder | Unshielded | Surface Mount Right Angle | 3 | 3 | Board Guide | ||||
CUI Devices | -25 °C | 85 °C | Gold | Phone Jack | 12 VDC | Female | 0.142 in | 3.6 mm | Brass Copper Alloy | Polyamide (PA10T) Nylon 10T | Black | 1 A | Stereo | 0.141 " | 0.125 " | 3.5 mm | 0.551 in | 14 mm | Two Switches | Solder | Unshielded | Surface Mount Right Angle | 4 | 6 | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.40 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.13 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.96 | |||
| 500 | $ 0.87 | |||
| Tape & Reel (TR) | 1400 | $ 0.77 | ||
Description
General part information
SJ2-35 Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack 5 Conductor (TRRRS) Connector Solder
