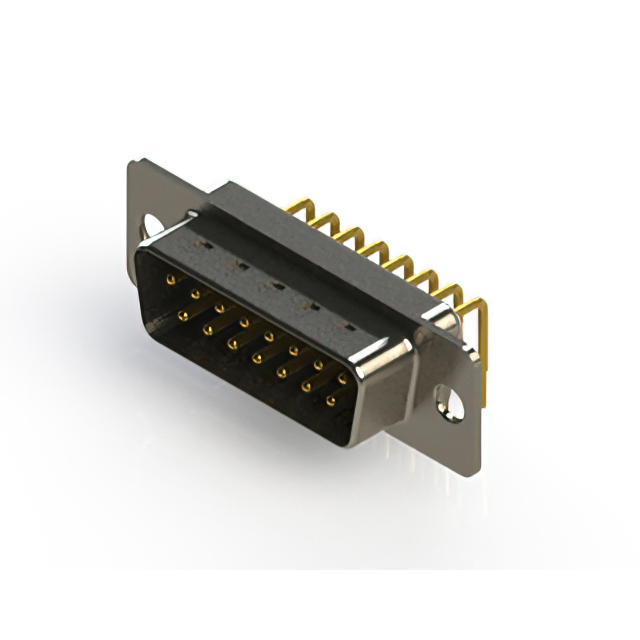

Specification	621-M15-660-WN1

Backset Spacing	0.283 in
Color	White
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder

621-M15 Series

...

Part	Material Flammability Rating	Connector Type	Contact Finish Thickness	Shell Material	Finish	Flange Feature	Connector Style	Mounting Type	Number of Rows	Contact Type	Current Rating	Contact Finish	Shell Size	Connector Layout	Number of Positions	Backset Spacing	Features	Termination	Dielectric Material	Color	Contact Form	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 621-M15-660-LN5	UL94 V-0	Male Pins Plug	30 µin	Steel	Nickel Plated	Mating Side (4-40)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Nylon 6T Polyamide (PA6T)	Blue	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M15-660-BT5	UL94 V-0	Male Pins Plug	30 µin	Steel	Tin Plated	Mating Side (4-40)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Nylon 6T Polyamide (PA6T)	Black	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M15-260-BT5	UL94 V-0	Male Pins Plug	0	Steel	Tin Plated	Mating Side (4-40)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Nylon 6T Polyamide (PA6T)	Black	Machined	125 °C	-55 °C	Copper Alloy	Flash	Flash
EDAC Inc. 621-M15-660-WN2	UL94 V-0	Male Pins Plug	30 µin	Steel	Nickel Plated	Housing Shell (4-40)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Grounding Indents Shielded	Solder	Nylon 6T Polyamide (PA6T)	White	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M15-660-WT2	UL94 V-0	Male Pins Plug	30 µin	Steel	Tin Plated	Housing Shell (4-40)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Grounding Indents Shielded	Solder	Nylon 6T Polyamide (PA6T)	White	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M15-260-BT3	UL94 V-0	Male Pins Plug	0	Steel	Tin Plated	Housing Shell (4-40)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Nylon 6T Polyamide (PA6T)	Black	Machined	125 °C	-55 °C	Copper Alloy	Flash	Flash
EDAC Inc. 621-M15-660-WT3	UL94 V-0	Male Pins Plug	30 µin	Steel	Tin Plated	Housing Shell (4-40)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Nylon 6T Polyamide (PA6T)	White	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M15-260-WT2	UL94 V-0	Male Pins Plug	0	Steel	Tin Plated	Housing Shell (4-40)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Grounding Indents Shielded	Solder	Nylon 6T Polyamide (PA6T)	White	Machined	125 °C	-55 °C	Copper Alloy	Flash	Flash
EDAC Inc. 621-M15-660-WN1	UL94 V-0	Male Pins Plug	30 µin	Steel	Nickel Plated	Housing Shell (Unthreaded)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Grounding Indents Shielded	Solder	Nylon 6T Polyamide (PA6T)	White	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 621-M15-360-GT3	UL94 V-0	Male Pins Plug	15 µin	Steel	Tin Plated	Housing Shell (4-40)	D-Sub	Board Edge Right Angle Through Hole	2	Signal	5 A	Gold	2	A DA	15	0.283 in	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Nylon 6T Polyamide (PA6T)	Green	Machined	125 °C	-55 °C	Copper Alloy
