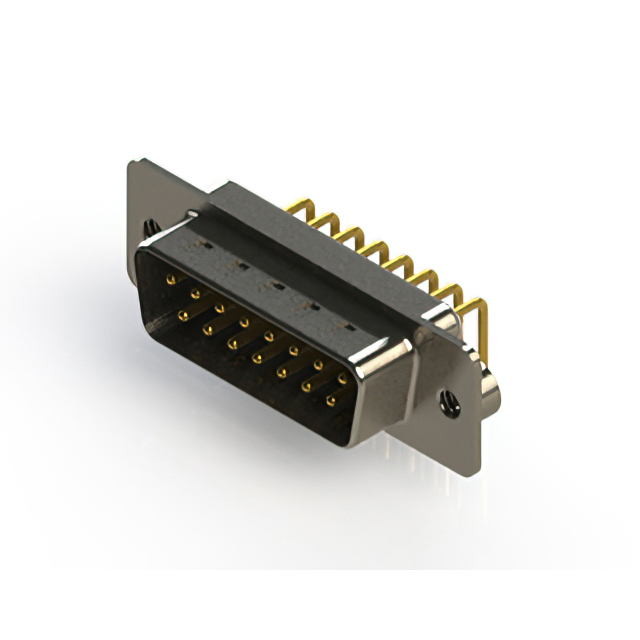

621-M15-260-WT2

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

621-M15-260-WT2

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	621-M15-260-WT2

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder

621-M15 Series

...

Part	Dielectric Material	Termination	Features	Current Rating (Amps)	Material Flammability Rating	Connector Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Contact Type	Shell Material, Finish	Mounting Type	Color	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Style	Contact Finish	Number of Rows	Shell Size, Connector Layout	Contact Finish Thickness
EDAC Inc. 621-M15-660-LN5	Polyamide (PA6T) Nylon 6T	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy	0.76 Ám	30 Áin	0.283 in	7.2 mm	Signal	Nickel Plated Steel	Board Edge Right Angle Through Hole	Blue	4-40	-55 °C	125 °C	15	D-Sub	Gold	2	2
EDAC Inc. 621-M15-260-BT5	Polyamide (PA6T) Nylon 6T	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy			0.283 in	7.2 mm	Signal		Board Edge Right Angle Through Hole	Black	4-40	-55 °C	125 °C	15	D-Sub	Gold	2	2	Flash
EDAC Inc. 621-M15-660-WN2	Polyamide (PA6T) Nylon 6T	Solder	Grounding Indents Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy	0.76 Ám	30 Áin	0.283 in	7.2 mm	Signal	Nickel Plated Steel	Board Edge Right Angle Through Hole	White	Housing/Shell (4-40)	-55 °C	125 °C	15	D-Sub	Gold	2	2
EDAC Inc. 621-M15-660-WT2	Polyamide (PA6T) Nylon 6T	Solder	Grounding Indents Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy	0.76 Ám	30 Áin	0.283 in	7.2 mm	Signal		Board Edge Right Angle Through Hole	White	Housing/Shell (4-40)	-55 °C	125 °C	15	D-Sub	Gold	2	2
EDAC Inc. 621-M15-260-BT3	Polyamide (PA6T) Nylon 6T	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy			0.283 in	7.2 mm	Signal		Board Edge Right Angle Through Hole	Black	Housing/Shell (4-40)	-55 °C	125 °C	15	D-Sub	Gold	2	2	Flash
EDAC Inc. 621-M15-660-WT3	Polyamide (PA6T) Nylon 6T	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy	0.76 Ám	30 Áin	0.283 in	7.2 mm	Signal		Board Edge Right Angle Through Hole	White	Housing/Shell (4-40)	-55 °C	125 °C	15	D-Sub	Gold	2	2
EDAC Inc. 621-M15-260-WT2	Polyamide (PA6T) Nylon 6T	Solder	Grounding Indents Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy			0.283 in	7.2 mm	Signal		Board Edge Right Angle Through Hole	White	Housing/Shell (4-40)	-55 °C	125 °C	15	D-Sub	Gold	2	2	Flash
EDAC Inc. 621-M15-660-WN1	Polyamide (PA6T) Nylon 6T	Solder	Grounding Indents Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy	0.76 Ám	30 Áin	0.283 in	7.2 mm	Signal	Nickel Plated Steel	Board Edge Right Angle Through Hole	White	Housing/Shell (Unthreaded)	-55 °C	125 °C	15	D-Sub	Gold	2	2
EDAC Inc. 621-M15-360-GT3	Polyamide (PA6T) Nylon 6T	Solder	Board Lock Grounding Indents Mounting Brackets Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy	0.38 µm	15 µin	0.283 in	7.2 mm	Signal		Board Edge Right Angle Through Hole	Green	Housing/Shell (4-40)	-55 °C	125 °C	15	D-Sub	Gold	2	2
EDAC Inc. 621-M15-260-LN1	Polyamide (PA6T) Nylon 6T	Solder	Grounding Indents Shielded	5 A	UL94 V-0	Male Pins Plug	Copper Alloy			0.283 in	7.2 mm	Signal	Nickel Plated Steel	Board Edge Right Angle Through Hole	Blue	Housing/Shell (Unthreaded)	-55 °C	125 °C	15	D-Sub	Gold	2	2	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 3.91
Newark	Each	100	$ 4.19
		250	$ 3.91
		500	$ 3.72
		1000	$ 3.54
		2500	$ 3.26

Description

General part information

621-M15 Series

15 Position D-Sub Plug, Male Pins Connector
