Technical Specifications
Parameters and characteristics for this part
| Specification | TPS2236DAPR |
|---|---|
| Current - Output (Max) [Max] | 1.3 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed) |
| Features | Status Flag, Power Good |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |

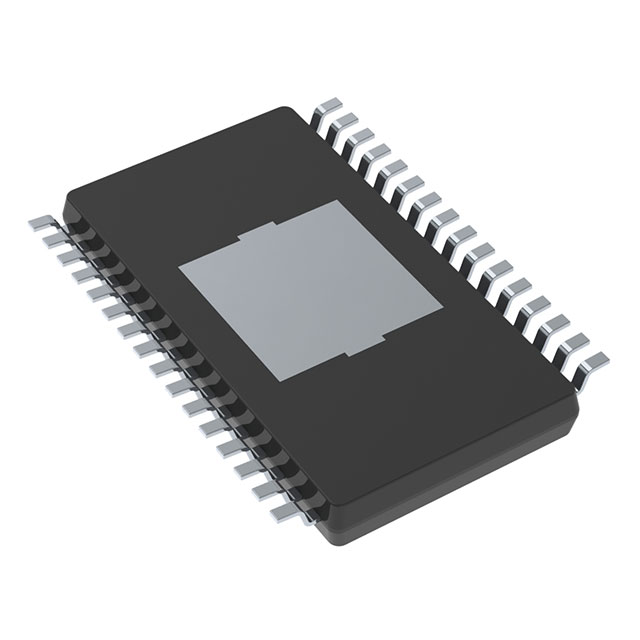

| Package / Case | 32-PowerTSSOP |
| Package / Case | 0.24 in, 6.1 mm |
| Ratio - Input:Output [custom] | 1 |
| Ratio - Input:Output [custom] | 2 |
| Rds On (Typ) | 45 mOhm |
| Supplier Device Package | 32-HTSSOP |
| Switch Type | ExpressCard™ Switch |
| Voltage - Load | 3.3 V, 1.5 V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS2236 Series
IC PWR SWITCH 1:2 32HTSSOP
| Part | Supplier Device Package | Number of Outputs | Output Configuration | Fault Protection | Voltage - Supply (Vcc/Vdd) | Switch Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Mounting Type | Current - Output (Max) [Max] | Voltage - Load | Rds On (Typ) | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
32-HTSSOP | 6 | High Side | Current Limiting (Fixed), Over Temperature | Not Required | ExpressCard™ Switch | 85 °C | -40 °C | Power Good, Status Flag | 1 | 2 | Surface Mount | 1.3 A | 1.5 V, 3.3 V | 45 mOhm | 32-PowerTSSOP | 0.24 in, 6.1 mm |
Description
General part information
TPS2236 Series
Power Switch/Driver 1:2 1.3A 32-HTSSOP
