627W5W5-622-3N2

Active

EDAC Inc.

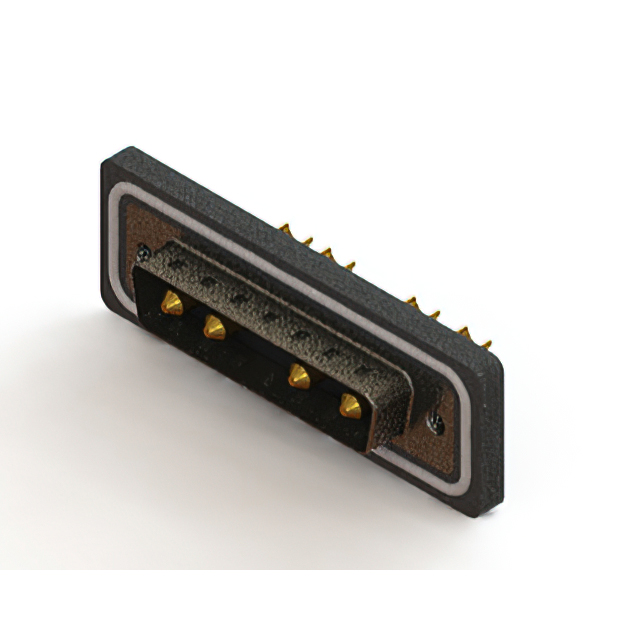

CONN D-SUB PLUG 5P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627W5W5-622-3N2

Active

EDAC Inc.

CONN D-SUB PLUG 5P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627W5W5-622-3N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	30 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Voltage Rating	125 VDC

627W5W Series

...

Part	Contact Finish	Color	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Type	Dielectric Material	Flange Feature	Number of Rows	Voltage Rating	Current Rating (Amps)	Material Flammability Rating	Termination	Features	Connector Style	Shell Material, Finish	Connector Type	Contact Finish Thickness	Number of Positions [custom]	Ingress Protection	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type
EDAC Inc. 627W5W5-224-4N2	Gold	Black	5W5	3	Power	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	1	125 VDC	40 A	UL94 V-0	Solder	Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug	Flash	5	IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C
EDAC Inc. 627W5W5-124-3ND	Gold	Black	5W5	3	Power	Polybutylene Terephthalate (PBT) Glass Filled	Board Side (M3)	1	125 VDC	30 A	UL94 V-0	Solder	Board Lock Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug		5	IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin
EDAC Inc. 627W5W5-322-4N2	Gold	Black	5W5	3	Power	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	1	125 VDC	40 A	UL94 V-0		Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug		5	IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C	0.38 µm	15 µin
EDAC Inc. 627W5W5-224-1ND	Gold	Black	5W5	3	Power	Polybutylene Terephthalate (PBT) Glass Filled	Board Side (M3)	1	125 VDC	10 A	UL94 V-0	Solder	Board Lock Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug	Flash	5	IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C
EDAC Inc. 627W5W1-224-3N2	Gold	Black	1 (DE E) - 5W1		Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	2	125 VDC	5 A 30 A	UL94 V-0	Solder	Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug	Flash		IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C			5	Panel Mount Through Hole
EDAC Inc. 627W5W5-624-3ND	Gold	Black	5W5	3	Power	Polybutylene Terephthalate (PBT) Glass Filled	Board Side (M3)	1	125 VDC	30 A	UL94 V-0	Solder	Board Lock Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug		5	IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C	0.76 Ám	30 Áin
EDAC Inc. 627W5W5-624-3N5	Gold	Black	5W5	3	Power	Polybutylene Terephthalate (PBT) Glass Filled	4-40 Board Side	1	125 VDC	30 A	UL94 V-0	Solder	Board Lock Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug		5	IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C	0.76 Ám	30 Áin
EDAC Inc. 627W5W5-622-3N2	Gold	Black	5W5	3	Power	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	1	125 VDC	30 A	UL94 V-0		Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug		5	IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C	0.76 Ám	30 Áin
EDAC Inc. 627W5W5-322-1N2	Gold	Black	5W5	3	Power	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	1	125 VDC	10 A	UL94 V-0		Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug		5	IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C	0.38 µm	15 µin
EDAC Inc. 627W5W5-324-4N5	Gold	Black	5W5	3	Power	Polybutylene Terephthalate (PBT) Glass Filled	4-40 Board Side	1	125 VDC	40 A	UL94 V-0	Solder	Board Lock Grounding Indents Shielded	Combo D-Sub	Nickel Plated Steel	Male Pins Plug		5	IP67 - Dust Tight Waterproof	Copper Alloy	-25 °C	85 °C	0.38 µm	15 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 25.01

Description

General part information

627W5W Series

5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
