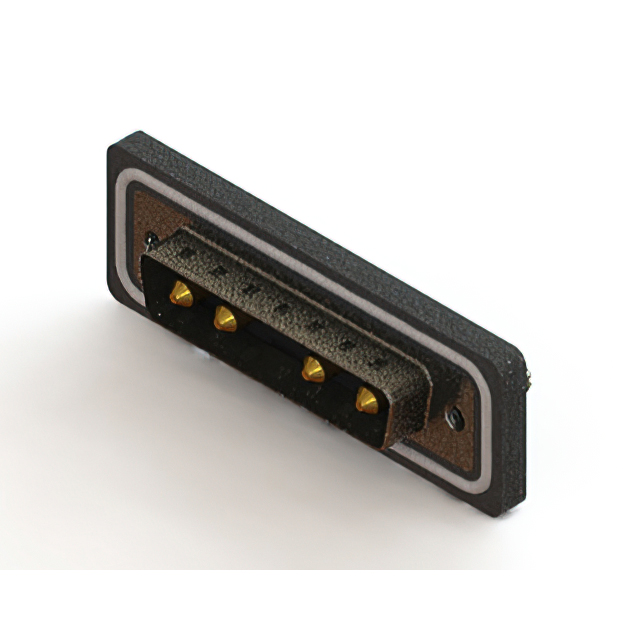

Specification	627W5W5-624-3N5

Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating	30 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Shielded, Grounding Indents, Board Lock
Finish	Nickel Plated
Flange Feature	Board Side (4-40)
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Number of Positions	5
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Part Code	5W5
Position Types	Power
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	125 V

627W5W Series

...

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Mounting Type	Number of Positions	Position Types	Contact Type	Termination	Features	Number of Rows	Shell Size	Connector Layout	Part Code	Shell Material	Finish	Ingress Protection Description	Ingress Protection IP Rating	Flange Feature	Contact Finish	Connector Style	Material Flammability Rating	Current Rating	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Voltage Rating	Dielectric Material	Current Rating Options	Number of Positions (Normal)	Number of Positions (Total)	Number of Positions (Power)
EDAC Inc. 627W5W5-224-4N2	Male Pins Plug	0	Flash	Flash	Panel Mount	5	Power	Power	Solder	Grounding Indents Shielded	1	3	B DB	5W5	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Gold	Combo D-Sub	UL94 V-0	40 A	Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 627W5W5-124-3ND	Male Pins Plug	5 µin			Panel Mount	5	Power	Power	Solder	Board Lock Grounding Indents Shielded	1	3	B DB	5W5	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Board Side (M3)	Gold	Combo D-Sub	UL94 V-0	30 A	Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 627W5W5-322-4N2	Male Pins Plug	15 µin			Panel Mount	5	Power	Power	Solder Cup	Grounding Indents Shielded	1	3	B DB	5W5	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Gold	Combo D-Sub	UL94 V-0	40 A	Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 627W5W5-324-1NA	Male Pins Plug	15 µin			Panel Mount	5	Power	Power	Solder	Grounding Indents Shielded	1	3	B DB	5W5	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Housing Shell (M3)	Gold	Combo D-Sub	UL94 V-0	10 A	Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 627W5W5-324-3N5	Male Pins Plug	15 µin			Panel Mount	5	Power	Power	Solder	Board Lock Grounding Indents Shielded	1	3	B DB	5W5	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Board Side (4-40)	Gold	Combo D-Sub	UL94 V-0	30 A	Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 627W5W5-224-1ND	Male Pins Plug	0	Flash	Flash	Panel Mount	5	Power	Power	Solder	Board Lock Grounding Indents Shielded	1	3	B DB	5W5	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Board Side (M3)	Gold	Combo D-Sub	UL94 V-0	10 A	Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 627W5W1-224-3N2	Male Pins Plug	0	Flash	Flash	Panel Mount Through Hole			Power Signal	Solder	Grounding Indents Shielded	2	1	DE E	5W1	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Gold	Combo D-Sub	UL94 V-0		Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	30A 5A	4	5	1
EDAC Inc. 627W5W5-624-3ND	Male Pins Plug	30 µin			Panel Mount	5	Power	Power	Solder	Board Lock Grounding Indents Shielded	1	3	B DB	5W5	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Board Side (M3)	Gold	Combo D-Sub	UL94 V-0	30 A	Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 627W5W5-624-3N5	Male Pins Plug	30 µin			Panel Mount	5	Power	Power	Solder	Board Lock Grounding Indents Shielded	1	3	B DB	5W5	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Board Side (4-40)	Gold	Combo D-Sub	UL94 V-0	30 A	Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)
EDAC Inc. 627W5W5-622-3N2	Male Pins Plug	30 µin			Panel Mount	5	Power	Power	Solder Cup	Grounding Indents Shielded	1	3	B DB	5W5	Steel	Nickel Plated	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Gold	Combo D-Sub	UL94 V-0	30 A	Black	85 °C	-25 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)
