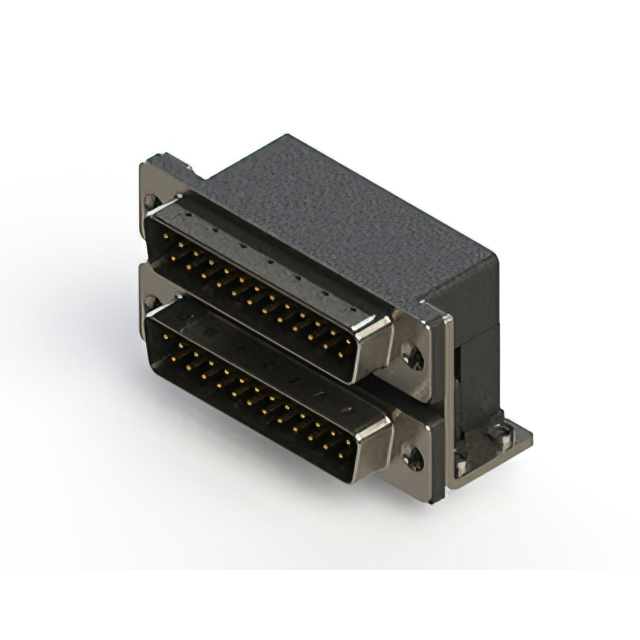

661-025-264-052
ActiveEDAC Inc.
RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
661-025-264-052
ActiveEDAC Inc.
RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 661-025-264-052 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 3 (DB, B) |
| Termination | Solder |
661-025 Series
...
| Part | Current Rating (Amps) | Flange Feature | Contact Finish | Shell Size, Connector Layout | Connector Style | Material Flammability Rating | Dielectric Material | Number of Positions | Shell Material, Finish | Connector Type | Features | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Backset Spacing | Backset Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Termination | Contact Material | Color | Number of Rows | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3 A | Housing/Shell (Unthreaded) | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 15 µin | 0.38 µm | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 | |
EDAC Inc. | 3 A | Housing/Shell (4-40) | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 15 µin | 0.38 µm | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 | |
EDAC Inc. | 3 A | Housing/Shell (M3) | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 | Flash | ||
EDAC Inc. | 3 A | Housing/Shell (4-40) | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 | Flash | ||
EDAC Inc. | 3 A | Housing/Shell (M3) | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 | Flash | ||
EDAC Inc. | 3 A | Female Screwlock (4-40) Mating Side | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 30 Áin | 0.76 Ám | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 | |
EDAC Inc. | 3 A | Housing/Shell (Unthreaded) | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 30 Áin | 0.76 Ám | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 | |
EDAC Inc. | 3 A | Housing/Shell (4-40) | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 15 µin | 0.38 µm | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 | |
EDAC Inc. | 3 A | Housing/Shell (M3) | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 15 µin | 0.38 µm | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 | |
EDAC Inc. | 3 A | Housing/Shell (4-40) | Gold | 3 (DB B) | D-Sub - Stacked | UL94 V-0 | Polyester Thermoplastic | 25 | Nickel Plated Steel | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets Shielded | Panel Mount Right Angle Through Hole | 15 µin | 0.38 µm | 8.08 mm | 0.318 " | 85 °C | -55 °C | Signal | Solder | Brass | Black | 2 |
