661-025-664-033

Active

EDAC Inc.

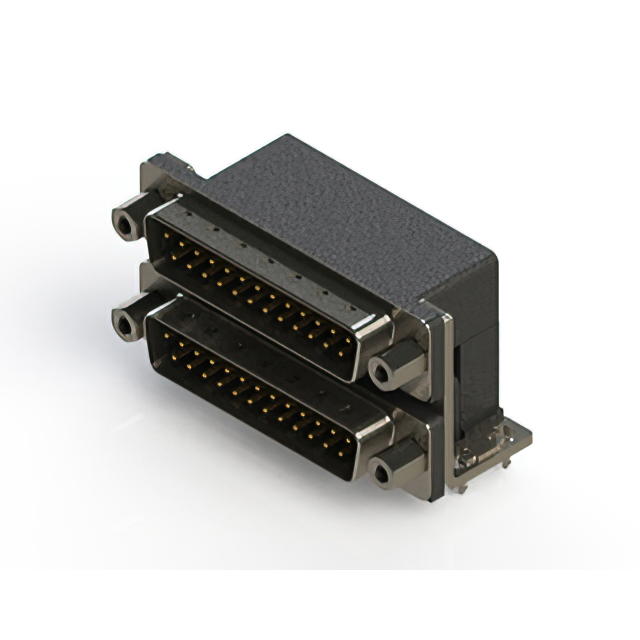

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

661-025-664-033

Active

EDAC Inc.

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	661-025-664-033

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder

661-025 Series

...

Part	Current Rating (Amps)	Flange Feature	Contact Finish	Shell Size, Connector Layout	Connector Style	Material Flammability Rating	Dielectric Material	Number of Positions	Shell Material, Finish	Connector Type	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Termination	Contact Material	Color	Number of Rows	Contact Finish Thickness
EDAC Inc. 661-025-364-057	3 A	Housing/Shell (Unthreaded)	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole	15 µin	0.38 µm	8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2
EDAC Inc. 661-025-364-032	3 A	Housing/Shell (4-40)	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole	15 µin	0.38 µm	8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2
EDAC Inc. 661-025-264-03C	3 A	Housing/Shell (M3)	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole			8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2	Flash
EDAC Inc. 661-025-264-052	3 A	Housing/Shell (4-40)	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole			8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2	Flash
EDAC Inc. 661-025-264-00A	3 A	Housing/Shell (M3)	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole			8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2	Flash
EDAC Inc. 661-025-664-033	3 A	Female Screwlock (4-40) Mating Side	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole	30 Áin	0.76 Ám	8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2
EDAC Inc. 661-025-664-054	3 A	Housing/Shell (Unthreaded)	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole	30 Áin	0.76 Ám	8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2
EDAC Inc. 661-025-364-002	3 A	Housing/Shell (4-40)	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole	15 µin	0.38 µm	8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2
EDAC Inc. 661-025-364-001	3 A	Housing/Shell (M3)	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole	15 µin	0.38 µm	8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2
EDAC Inc. 661-025-364-035	3 A	Housing/Shell (4-40)	Gold	3 (DB B)	D-Sub - Stacked	UL94 V-0	Polyester Thermoplastic	25	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Panel Mount Right Angle Through Hole	15 µin	0.38 µm	8.08 mm	0.318 "	85 °C	-55 °C	Signal	Solder	Brass	Black	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 12.77
Newark	Each	1	$ 15.33
		250	$ 13.94
		500	$ 12.78
		1000	$ 10.81

Description

General part information

661-025 Series

25, 25 Position D-Sub - Stacked Plug, Male Pins Connector
