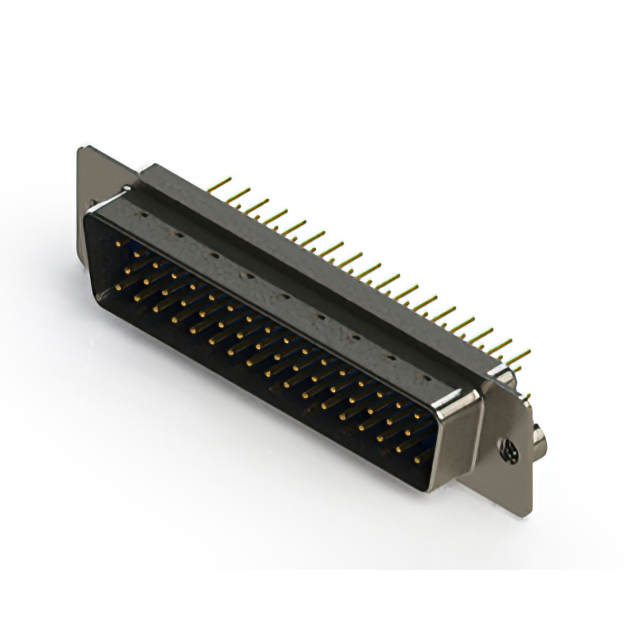

627M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-M50-220-LT2

Active

EDAC Inc.

627M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-M50-220-LT2

Color	Blue
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder

627-M50 Series

...

Part	Number of Positions	Connector Style	Color	Contact Finish	Features	Material Flammability Rating	Number of Rows	Flange Feature	Shell Size, Connector Layout	Current Rating (Amps)	Contact Type	Dielectric Material	Termination	Mounting Type	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 627-M50-320-WT4	50	D-Sub	White	Gold	Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C	15 µin	0.38 µm
EDAC Inc. 627-M50-623-BN1	50	D-Sub	Black	Gold	Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C	30 Áin	0.76 Ám	Nickel Plated Steel
EDAC Inc. 627-M50-220-BN1	50	D-Sub	Black	Gold	Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C			Nickel Plated Steel	Flash
EDAC Inc. 627-M50-220-LN3	50	D-Sub	Blue	Gold	Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C			Nickel Plated Steel	Flash
EDAC Inc. 627-M50-623-GN6	50	D-Sub	Green	Gold	Board Lock Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C	30 Áin	0.76 Ám	Nickel Plated Steel
EDAC Inc. 627-M50-623-LT6	50	D-Sub	Blue	Gold	Board Lock Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C	30 Áin	0.76 Ám
EDAC Inc. 627-M50-323-GN3	50	D-Sub	Green	Gold	Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C	15 µin	0.38 µm	Nickel Plated Steel
EDAC Inc. 627-M50-320-GT1	50	D-Sub	Green	Gold	Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C	15 µin	0.38 µm
EDAC Inc. 627-M50-623-LT4	50	D-Sub	Blue	Gold	Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C	30 Áin	0.76 Ám
EDAC Inc. 627-M50-220-LT2	50	D-Sub	Blue	Gold	Grounding Indents Shielded	UL94 V-0	3	4-40 Board Side	5	5 A	Signal	Polyamide (PA6T) Nylon 6T	Solder	Through Hole	Copper Alloy	Male Pins Plug	-55 °C	125 °C				Flash
