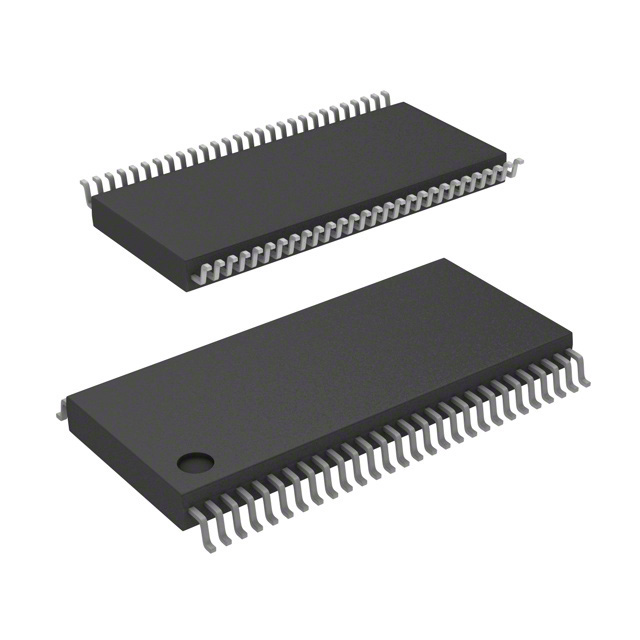

CLVTH16543IDGGREP - 56-TFSOP (0.240", 6.10mm Width)

CLVTH16543IDGGREP

Active
Texas Instruments

ENHANCED PRODUCT 3.3-V ABT 16-BIT REGISTERED TRANSCEIVER WITH 3-STATE OUTPUTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUnderstanding and Interpreting Standard-Logic Data Sheets (Rev. C)TI IBIS File Creation, Validation, and Distribution Processes+14
CLVTH16543IDGGREP - 56-TFSOP (0.240", 6.10mm Width)

CLVTH16543IDGGREP

Active
Texas Instruments

ENHANCED PRODUCT 3.3-V ABT 16-BIT REGISTERED TRANSCEIVER WITH 3-STATE OUTPUTS

Deep-Dive with AI

DocumentsUnderstanding and Interpreting Standard-Logic Data Sheets (Rev. C)TI IBIS File Creation, Validation, and Distribution Processes+14

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationCLVTH16543IDGGREPSN74LVTH16543-EP Series
Current - Output High, Low32 mA, 64 mA32 - 64 mA
Mounting TypeSurface MountSurface Mount
Number of Bits per Element88
Number of Elements [custom]22
Operating Temperature [Max]85 °C85 - 125 °C
Operating Temperature [Min]-40 °C-55 - -40 °C
Output Type3-State3-State
Package / Case56-TFSOP56-TFSOP, 56-BSSOP
Package / Case6.1 mm6.1 mm
Package / Case0.24 "0.24 "
Package / Case-0.295 in
Package / Case-7.5 mm
Supplier Device Package56-TSSOP56-TSSOP, 56-SSOP
Voltage - Supply [Max]3.6 V3.6 V
Voltage - Supply [Min]2.7 V2.7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 5.93
10$ 5.33
25$ 5.04
100$ 4.37
250$ 4.14
Digi-Reel® 1$ 5.93
10$ 5.33
25$ 5.04
100$ 4.37
250$ 4.14
Tape & Reel (TR) 2000$ 2.77
Texas InstrumentsLARGE T&R 1$ 4.48
100$ 3.92
250$ 2.75
1000$ 2.22

SN74LVTH16543-EP Series

Enhanced Product 3.3-V Abt 16-Bit Registered Transceiver With 3-State Outputs

PartSupplier Device PackageMounting TypePackage / CasePackage / CasePackage / CaseOutput TypeNumber of Bits per ElementVoltage - Supply [Min]Voltage - Supply [Max]Number of Elements [custom]Operating Temperature [Max]Operating Temperature [Min]Current - Output High, LowPackage / Case [x]Package / Case [x]
Texas Instruments
CLVTH16543IDGGREP
56-TSSOP
Surface Mount
56-TFSOP
6.1 mm
0.24 "
3-State
8
2.7 V
3.6 V
2
85 °C
-40 °C
32 mA, 64 mA
Texas Instruments
V62/04715-01XE
56-TSSOP
Surface Mount
56-TFSOP
6.1 mm
0.24 "
3-State
8
2.7 V
3.6 V
2
85 °C
-40 °C
32 mA, 64 mA
Texas Instruments
CLVTH16543MDLREP
56-SSOP
Surface Mount
56-BSSOP
3-State
8
2.7 V
3.6 V
2
125 °C
-55 C
32 mA, 64 mA
0.295 in
7.5 mm
Texas Instruments
V62/04715-02YE
56-SSOP
Surface Mount
56-BSSOP
3-State
8
2.7 V
3.6 V
2
125 °C
-55 C
32 mA, 64 mA
0.295 in
7.5 mm

Description

General part information

SN74LVTH16543-EP Series

The SN74LVTH16543 is a 16–bit registered transceiver designed for low–voltage (3.3–V) VCCoperation, but with the capability to provide a TTL interface to a 5–V system environment. This device can be used as two 8–bit transceivers or one 16–bit transceiver. Separate latch–enable (LEABorLEBA) and output–enable (OEABorOEBA) inputs are provided for each register to permit independent control in either direction of data flow.

The A–to–B enable (CEAB) input must be low to enter data from A or to output data from B. IfCEABis low andLEABis low, the A–to–B latches are transparent; a subsequent low–to–high transition ofLEABputs the A latches in the storage mode. WithCEABandOEABboth low, the 3–state B outputs are active and reflect the data present at the output of the A latches. Data flow from B to A is similar, but requires using theCEBA,LEBA, andOEBAinputs.

Active bus–hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
