CDCEL913PERF-EVM
ActiveEVAL MOD PERFORMANCE FOR CDCE913
Deep-Dive with AI
Search across all available documentation for this part.
CDCEL913PERF-EVM
ActiveEVAL MOD PERFORMANCE FOR CDCE913
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CDCEL913PERF-EVM | CDCEL913 Series |
|---|---|---|
| Differential - Input:Output | - | False |
| Differential - Input:Output | - | False |
| Frequency - Max | - | 230 MHz |
| Function | Clock Generator | Clock Generator |
| Grade | - | Automotive |
| Input | - | LVCMOS, Crystal |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Output | - | LVCMOS |
| Package / Case | - | 14-TSSOP |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 mm |
| PLL | - | Yes with Bypass |
| Qualification | - | AEC-Q100 |
| Ratio - Input:Output | - | 1 |
| Ratio - Input:Output | - | 3 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 14-TSSOP |
| Type | Timing | PLL Clock Synthesizer, Timing |
| Utilized IC / Part | CDCEL913PERF | CDCEL913PERF |
| Voltage - Supply | - | 1.7 V |
| Voltage - Supply | - | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
CDCEL913 Series
Programmable 1-PLL VCXO clock synthesizer with 1.8-V LVCMOS outputs
| Part | Supplier Device Package | Type | Output | Voltage - Supply [Min] | Voltage - Supply [Max] | Frequency - Max [Max] | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Input | Mounting Type | Package / Case | Package / Case [custom] | Package / Case [custom] | PLL | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Number of Circuits | Utilized IC / Part | Function | Supplied Contents | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CDCEL913PWR | 14-TSSOP | PLL Clock Synthesizer | LVCMOS | 1.7 V | 1.9 V | 230 MHz | -40 °C | 85 °C | Crystal, LVCMOS | Surface Mount | 14-TSSOP | 0.173 in | 4.4 mm | Yes with Bypass | 1 | 3 | 1 | |||||||
Texas Instruments CDCEL913PWRG4 | 14-TSSOP | PLL Clock Synthesizer | LVCMOS | 1.7 V | 1.9 V | 230 MHz | -40 °C | 85 °C | Crystal, LVCMOS | Surface Mount | 14-TSSOP | 0.173 in | 4.4 mm | Yes with Bypass | 1 | 3 | 1 | |||||||

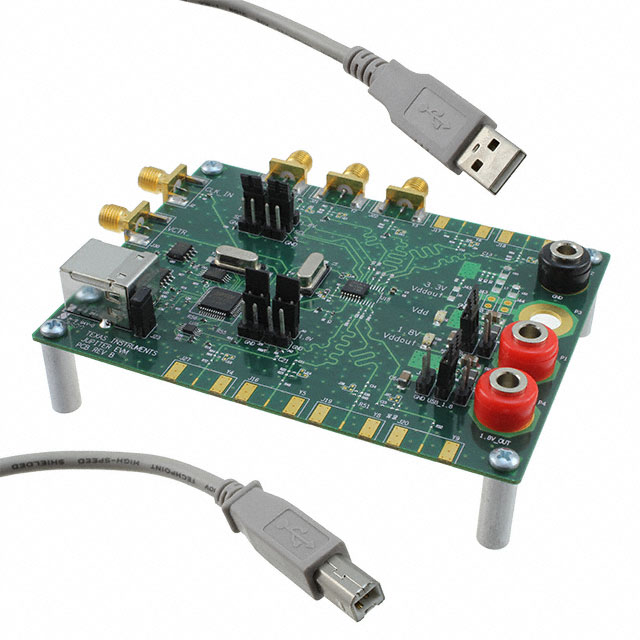

Texas Instruments CDCEL913PERF-EVM | Timing | CDCEL913PERF | Clock Generator | Board(s) | ||||||||||||||||||||
Texas Instruments CDCEL913IPWRQ1 | 14-TSSOP | PLL Clock Synthesizer | LVCMOS | 1.7 V | 1.9 V | 230 MHz | -40 °C | 85 °C | Crystal, LVCMOS | Surface Mount | 14-TSSOP | 0.173 in | 4.4 mm | Yes with Bypass | 1 | 3 | 1 | Automotive | AEC-Q100 | |||||
Texas Instruments CDCEL913PW | 14-TSSOP | PLL Clock Synthesizer | LVCMOS | 1.7 V | 1.9 V | 230 MHz | -40 °C | 85 °C | Crystal, LVCMOS | Surface Mount | 14-TSSOP | 0.173 in | 4.4 mm | Yes with Bypass | 1 | 3 | 1 |
Description
General part information
CDCEL913 Series
The CDCE913 and CDCEL913 devices are modular PLL-based, low-cost, high-performance, programmable clock synthesizers. The devices generate up to three output clocks from a single input frequency. Each output can be programmed in-system for any clock frequency up to 230MHz, using the integrated configurable PLL.
The CDCx913 has separate output supply pins, VDDOUT, which is 1.8V for CDCEL913 and 2.5V to 3.3V for CDCE913.
The input accepts an external crystal or LVCMOS clock signal. A selectable on-chip VCXO allows synchronization of the output frequency to an external control signal.
