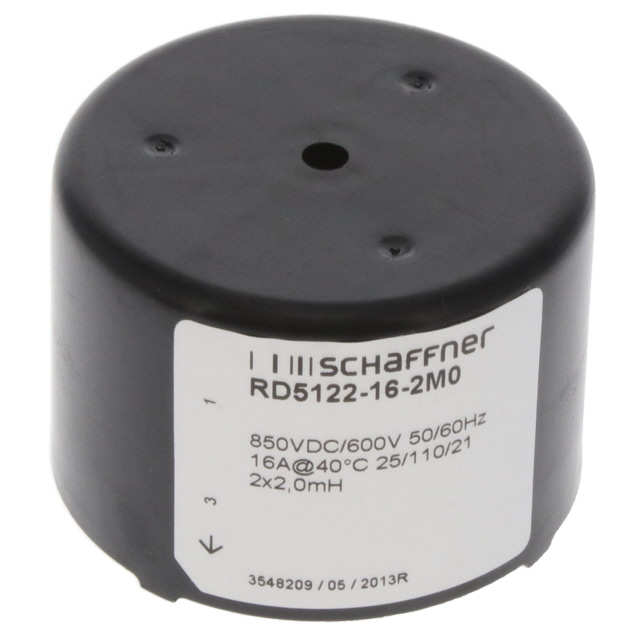

RD5122-16-2M0
ActiveTE Connectivity Raychem Cable Protection
CMC 2MH 16A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RD5122-16-2M0
ActiveTE Connectivity Raychem Cable Protection
CMC 2MH 16A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RD5122-16-2M0 |
|---|---|
| Current Rating (Max) | 16 A |
| DC Resistance (DCR) (Max) | 9.5 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.398 in |
| Height (Max) | 35.5 mm |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [x] | 1.969 in |
| Size / Dimension [y] | 1.969 in |
| Size / Dimension [y] | 50 mm |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 850 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.16 | |
| 10 | $ 14.85 | |||
| 25 | $ 13.50 | |||
Description
General part information
RD5122 Series
2 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 16A (Typ) DCR 9.5mOhm (Typ)
