D38999/26WF32SN
ActiveAmphenol Aerospace Operations

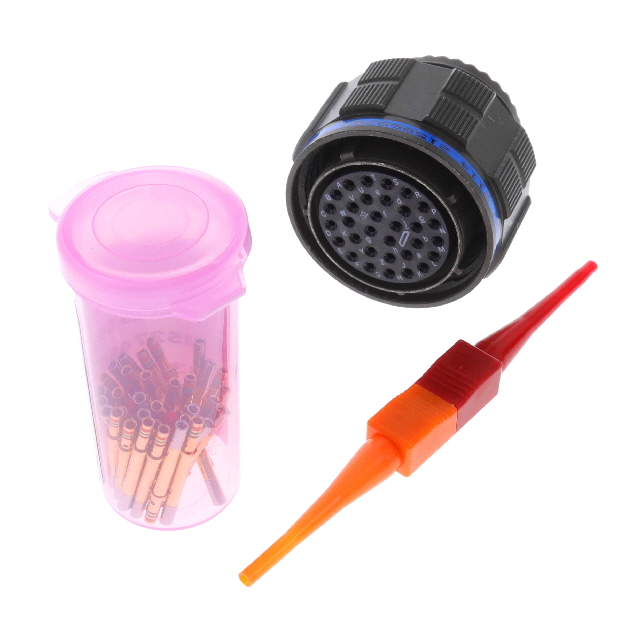

CONN PLUG FMALE 32POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/26WF32SN
ActiveAmphenol Aerospace Operations
CONN PLUG FMALE 32POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/26WF32SN |
|---|---|
| Applications | Aviation, Aerospace, Marine, Military |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Features | Coupling Nut |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 32 |
| Shell Size - Insert [Min] | 19 |
| Shell Size, MIL | F |
| Shielding | Shielded |
| Termination | Crimp |
D38999/26WF Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Mounting Type | Shell Material | Shielding | Termination | Contact Material | Features | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Connector Type | Orientation | Grade | Contact Finish - Mating | Ingress Protection | Number of Positions | Color | Qualification | Shell Finish | Shell Size, MIL | Housing Color | Contact Size | Contact Shape | Contact Type | Type | Note | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Insert Material | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | 1.27 µm | 50 µin | Aerospace Aviation Marine Military | Free Hanging (In-Line) | Aluminum | Shielded | Crimp | Copper Alloy | Coupling Nut | 19 | 35 | -65 ░C | 347 °F | Metal | Female Sockets Plug | N | Military | Gold | Environment Resistant | 66 | Olive Drab | MIL-DTL-38999 Series III | Olive Drab Cadmium | F | ||||||||||
Amphenol Aerospace Operations | Free Hanging (In-Line) | Aluminum | Shielded | Coupling Nut Self Locking | -65 ░C | 347 °F | Plug Housing | B | Military | Environment Resistant | 28 | MIL-DTL-38999 Series III | Cadmium | F | Olive Drab | 16 (2) 20 (26) | Circular | Crimp | For Female Sockets | Contacts Not Included | 28 | 19 | ||||||||||||
Amphenol Aerospace Operations | 1.27 µm | 50 µin | Aerospace Aviation Marine Military | Free Hanging (In-Line) | Aluminum | Shielded | Crimp | Copper Alloy | Coupling Nut | 19 | 32 | -65 ░C | 347 °F | Metal | Female Sockets Plug | N | Military | Gold | Environment Resistant | Olive Drab | MIL-DTL-38999 Series III | Olive Drab Cadmium | F | |||||||||||
Amphenol Aerospace Operations | 2.54 çm | 100 çin | Aviation Marine Military | Free Hanging (In-Line) | Aluminum | Shielded | Crimp | Copper Alloy | Coupling Nut Self Locking | 19 | 32 | -65 ░C | 347 °F | Metal | Female Sockets Plug | C | Military | Gold | Environment Resistant | Olive Drab | MIL-DTL-38999 Series III | Olive Drab Cadmium | F | |||||||||||
Amphenol Aerospace Operations | 2.54 çm | 100 çin | Aerospace Aviation Military | Free Hanging (In-Line) | Aluminum | Shielded | Crimp | Copper Alloy | Coupling Nut | 19 | 32 | -65 ░C | 347 °F | Metal | Female Sockets Plug | N | Military | Gold | Environment Resistant | Olive Drab | MIL-DTL-38999 Series III | Olive Drab Cadmium | F | |||||||||||
Amphenol Aerospace Operations | Free Hanging (In-Line) | Aluminum | Shielded | Coupling Nut Self Locking | -65 ░C | 347 °F | Plug Housing | B | Military | Environment Resistant | 28 | MIL-DTL-38999 Series III | Cadmium | F | Olive Drab | 16 (2) 20 (26) | Circular | Crimp | For Female Sockets | Contacts Not Included | 28 | 19 | ||||||||||||
Amphenol Aerospace Operations | Free Hanging (In-Line) | Aluminum | Shielded | Coupling Nut Self Locking | 19 | 35 | -65 ░C | 347 °F | Plug Housing | B | Military | Environment Resistant | 66 | MIL-DTL-38999 Series III | Cadmium | F | Olive Drab | 22D | Circular | Crimp | For Female Sockets | Contacts Not Included | ||||||||||||
Amphenol Aerospace Operations | Free Hanging (In-Line) | Aluminum | Shielded | Coupling Nut Self Locking | 19 | 32 | -65 ░C | 347 °F | Metal | Plug Housing | B | Military | Environment Resistant | MIL-DTL-38999 Series III | Cadmium | F | Olive Drab | Circular | Crimp | For Female Sockets | Contacts Not Included | Thermoplastic | 20 | |||||||||||
Amphenol Aerospace Operations | 2.54 çm | 100 çin | Aviation Marine Military | Free Hanging (In-Line) | Aluminum | Shielded | Crimp | Copper Alloy | Coupling Nut Self Locking | 19 | 35 | -65 ░C | 347 °F | Metal | Male Pins Plug | B | Military | Gold | Environment Resistant | 66 | Olive Drab | MIL-DTL-38999 Series III | Olive Drab Cadmium | F | ||||||||||
Amphenol Aerospace Operations | 2.54 çm | 100 çin | Aviation Marine Military | Free Hanging (In-Line) | Aluminum | Shielded | Crimp | Copper Alloy | Coupling Nut Self Locking | 19 | 32 | -65 ░C | 347 °F | Metal | Male Pins Plug | D | Military | Gold | Environment Resistant | Olive Drab | MIL-DTL-38999 Series III | Olive Drab Cadmium | F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 73.56 | |
| 10 | $ 71.19 | |||
| 25 | $ 68.96 | |||
| 50 | $ 67.90 | |||
| 100 | $ 63.97 | |||
| 250 | $ 63.06 | |||
| 500 | $ 60.47 | |||
| 1000 | $ 58.86 | |||
| Box | 1 | $ 78.86 | ||
| 10 | $ 68.34 | |||
| 25 | $ 60.30 | |||
| 50 | $ 53.95 | |||
| 100 | $ 47.31 | |||
| Bulk | 1 | $ 376.12 | ||
| 10 | $ 295.87 | |||
| 25 | $ 270.59 | |||
Description
General part information
D38999/26WF Series
32 Position Circular Connector Plug, Female Sockets Crimp
