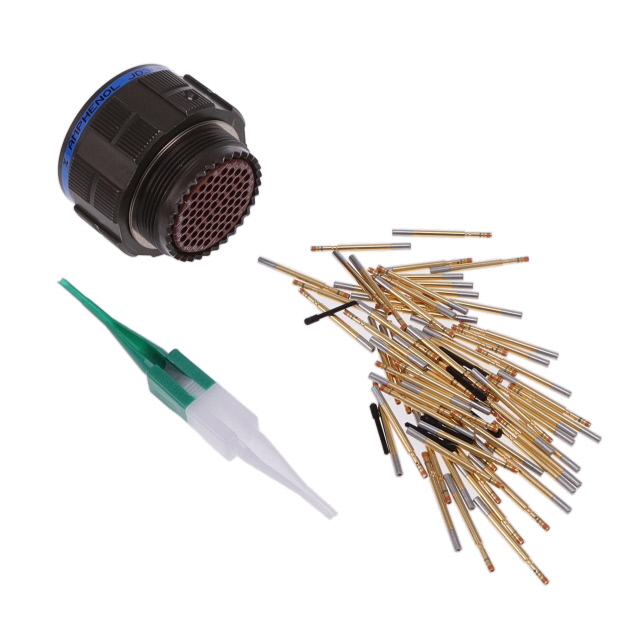

D38999/26WF35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 66POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WF35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 66POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WF35SN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	66
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	19
Shell Size, MIL	F
Shielding	Shielded
Termination	Crimp

D38999/26WF Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Mounting Type	Shell Material	Shielding	Termination	Contact Material	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Connector Type	Orientation	Grade	Contact Finish - Mating	Ingress Protection	Number of Positions	Color	Qualification	Shell Finish	Shell Size, MIL	Housing Color	Contact Size	Contact Shape	Contact Type	Type	Note	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Insert Material	Contact Size
Amphenol Aerospace Operations D38999/26WF35SN	1.27 µm	50 µin	Aerospace Aviation Marine Military	Free Hanging (In-Line)	Aluminum	Shielded	Crimp	Copper Alloy	Coupling Nut	19	35	-65 ░C	347 °F	Metal	Female Sockets Plug	N	Military	Gold	Environment Resistant	66	Olive Drab	MIL-DTL-38999 Series III	Olive Drab Cadmium	F
Amphenol Aerospace Operations D38999/26WF28BB				Free Hanging (In-Line)	Aluminum	Shielded			Coupling Nut Self Locking			-65 ░C	347 °F		Plug Housing	B	Military		Environment Resistant	28		MIL-DTL-38999 Series III	Cadmium	F	Olive Drab	16 (2) 20 (26)	Circular	Crimp	For Female Sockets	Contacts Not Included	28	19
Amphenol Aerospace Operations D38999/26WF32SN	1.27 µm	50 µin	Aerospace Aviation Marine Military	Free Hanging (In-Line)	Aluminum	Shielded	Crimp	Copper Alloy	Coupling Nut	19	32	-65 ░C	347 °F	Metal	Female Sockets Plug	N	Military	Gold	Environment Resistant		Olive Drab	MIL-DTL-38999 Series III	Olive Drab Cadmium	F
Amphenol Aerospace Operations D38999/26WF32JC	2.54 çm	100 çin	Aviation Marine Military	Free Hanging (In-Line)	Aluminum	Shielded	Crimp	Copper Alloy	Coupling Nut Self Locking	19	32	-65 ░C	347 °F	Metal	Female Sockets Plug	C	Military	Gold	Environment Resistant		Olive Drab	MIL-DTL-38999 Series III	Olive Drab Cadmium	F
Amphenol Aerospace Operations D38999/26WF32JN	2.54 çm	100 çin	Aerospace Aviation Military	Free Hanging (In-Line)	Aluminum	Shielded	Crimp	Copper Alloy	Coupling Nut	19	32	-65 ░C	347 °F	Metal	Female Sockets Plug	N	Military	Gold	Environment Resistant		Olive Drab	MIL-DTL-38999 Series III	Olive Drab Cadmium	F
Amphenol Aerospace Operations D38999/26WF28SB-LC				Free Hanging (In-Line)	Aluminum	Shielded			Coupling Nut Self Locking			-65 ░C	347 °F		Plug Housing	B	Military		Environment Resistant	28		MIL-DTL-38999 Series III	Cadmium	F	Olive Drab	16 (2) 20 (26)	Circular	Crimp	For Female Sockets	Contacts Not Included	28	19
Amphenol Aerospace Operations D38999/26WF35JB-LC				Free Hanging (In-Line)	Aluminum	Shielded			Coupling Nut Self Locking	19	35	-65 ░C	347 °F		Plug Housing	B	Military		Environment Resistant	66		MIL-DTL-38999 Series III	Cadmium	F	Olive Drab	22D	Circular	Crimp	For Female Sockets	Contacts Not Included
Amphenol Aerospace Operations D38999/26WF32BB				Free Hanging (In-Line)	Aluminum	Shielded			Coupling Nut Self Locking	19	32	-65 ░C	347 °F	Metal	Plug Housing	B	Military		Environment Resistant			MIL-DTL-38999 Series III	Cadmium	F	Olive Drab		Circular	Crimp	For Female Sockets	Contacts Not Included			Thermoplastic	20
Amphenol Aerospace Operations D38999/26WF35HB	2.54 çm	100 çin	Aviation Marine Military	Free Hanging (In-Line)	Aluminum	Shielded	Crimp	Copper Alloy	Coupling Nut Self Locking	19	35	-65 ░C	347 °F	Metal	Male Pins Plug	B	Military	Gold	Environment Resistant	66	Olive Drab	MIL-DTL-38999 Series III	Olive Drab Cadmium	F
Amphenol Aerospace Operations D38999/26WF32HD	2.54 çm	100 çin	Aviation Marine Military	Free Hanging (In-Line)	Aluminum	Shielded	Crimp	Copper Alloy	Coupling Nut Self Locking	19	32	-65 ░C	347 °F	Metal	Male Pins Plug	D	Military	Gold	Environment Resistant		Olive Drab	MIL-DTL-38999 Series III	Olive Drab Cadmium	F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 41.92
		10	$ 39.49
		25	$ 37.33
		50	$ 35.39
		100	$ 32.06
	Bulk	1	$ 428.59
		10	$ 337.54
		25	$ 308.87

Description

General part information

D38999/26WF Series

66 Position Circular Connector Plug, Female Sockets Crimp
