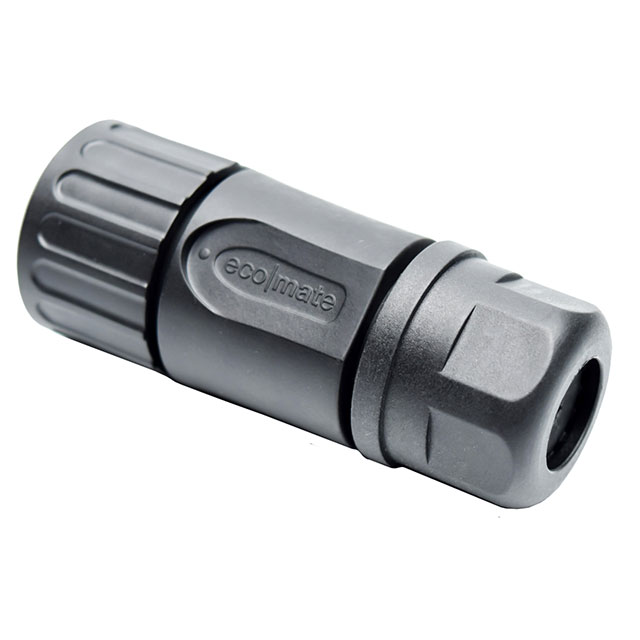

RTS6BS14N2S03

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 4POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer +1

RTS6BS14N2S03

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 4POS INLINE

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS6BS14N2S03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	14-2
Shielding	Unshielded
Type	For Female Sockets

RTS6BS14 Series

Part	Fastening Type	Ingress Protection	Shielding	Mounting Type	Connector Type	Shell Size - Insert	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Number of Positions	Note	Insert Material	Features	Contact Shape	Orientation	Type	Contact Type	Material Flammability Rating	Includes	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Sine Systems Corp RTS6BS14N8P03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing	14-8	Black	125 °C	-40 °C	16	8	Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Male Pins	Crimp	UL94 V-0
Amphenol Sine Systems Corp RTS6BS14N12SHEC03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing	14-12	Black	125 °C	-40 °C	16	12	Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Female Sockets	Crimp	UL94 V-0	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer
Amphenol Sine Systems Corp RTS6BS14N2S03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing	14-2	Black	125 °C	-40 °C		4	Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Female Sockets	Crimp	UL94 V-0
Amphenol Sine Systems Corp RTS6BS14N7P03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing		Black	125 °C	-40 °C	16		Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Male Pins	Crimp	UL94 V-0		14	7	1	6
Amphenol Sine Systems Corp RTS6BS14N12S03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing	14-12	Black	125 °C	-40 °C	16	12	Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Female Sockets	Crimp	UL94 V-0
Amphenol Sine Systems Corp RTS6BS14N4S03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing		Black	125 °C	-40 °C	2.5 mm	4	Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Female Sockets	Crimp	UL94 V-0		14	4
Amphenol Sine Systems Corp RTS6BS14N3S03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing	14-3	Black	125 °C	-40 °C	8		Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Female Sockets	Crimp	UL94 V-0	1 Backshell 1 Clamp Ring 1 Connector 1 Nut 1 O-Ring 1 Seal 1 Washer
Amphenol Sine Systems Corp RTS6BS14N2PHEC03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing	14-2	Black	125 °C	-40 °C		4	Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Male Pins	Crimp	UL94 V-0	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer
Amphenol Sine Systems Corp RTS6BS14N4SHEC03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing		Black	125 °C	-40 °C	2.5 mm	4	Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Female Sockets	Crimp	UL94 V-0	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	14	4
Amphenol Sine Systems Corp RTS6BS14N19PHEC03	Bayonet Lock	IP67 IP69K	Unshielded	Free Hanging (In-Line)	Plug Housing		Black	125 °C	-40 °C	20	19	Contacts Not Included	Thermoplastic	Backshell Coupling Nut	Circular	N	For Male Pins	Crimp	UL94 V-0	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer					19	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 8.61

Description

General part information

RTS6BS14 Series

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

Eco|mate® Aquarius™ Flyer

Datasheet
