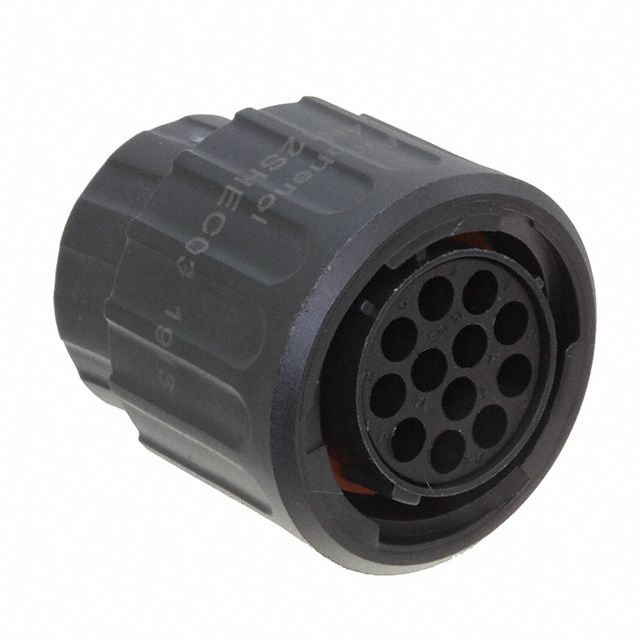

RTS6BS14N12SHEC03
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 12POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
RTS6BS14N12SHEC03
ActiveAmphenol Sine Systems Corp
CONN PLG HSG FMALE 12POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS6BS14N12SHEC03 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Housing Color | Black |
| Includes | 1 Washer, 1 Seal, 1 Connector, 1 Ring, 1 O-Ring, 1 Backshell |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert | 14-12 |
| Shielding | Unshielded |
| Type | For Female Sockets |
RTS6BS14 Series
| Part | Fastening Type | Ingress Protection | Shielding | Mounting Type | Connector Type | Shell Size - Insert | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Size | Number of Positions | Note | Insert Material | Features | Contact Shape | Orientation | Type | Contact Type | Material Flammability Rating | Includes | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Number of Positions [custom] | Number of Positions [custom] | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | 14-8 | Black | 125 °C | -40 °C | 16 | 8 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Male Pins | Crimp | UL94 V-0 | |||||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | 14-12 | Black | 125 °C | -40 °C | 16 | 12 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Female Sockets | Crimp | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | ||||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | 14-2 | Black | 125 °C | -40 °C | 4 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Female Sockets | Crimp | UL94 V-0 | ||||||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | Black | 125 °C | -40 °C | 16 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Male Pins | Crimp | UL94 V-0 | 14 | 7 | 1 | 6 | |||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | 14-12 | Black | 125 °C | -40 °C | 16 | 12 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Female Sockets | Crimp | UL94 V-0 | |||||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | Black | 125 °C | -40 °C | 2.5 mm | 4 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Female Sockets | Crimp | UL94 V-0 | 14 | 4 | ||||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | 14-3 | Black | 125 °C | -40 °C | 8 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Female Sockets | Crimp | UL94 V-0 | 1 Backshell 1 Clamp Ring 1 Connector 1 Nut 1 O-Ring 1 Seal 1 Washer | |||||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | 14-2 | Black | 125 °C | -40 °C | 4 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Male Pins | Crimp | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | |||||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | Black | 125 °C | -40 °C | 2.5 mm | 4 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Female Sockets | Crimp | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 14 | 4 | |||||
Amphenol Sine Systems Corp | Bayonet Lock | IP67 IP69K | Unshielded | Free Hanging (In-Line) | Plug Housing | Black | 125 °C | -40 °C | 20 | 19 | Contacts Not Included | Thermoplastic | Backshell Coupling Nut | Circular | N | For Male Pins | Crimp | UL94 V-0 | 1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer | 19 | 14 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.20 | |
| 10 | $ 10.91 | |||
| 25 | $ 9.87 | |||
| 50 | $ 9.16 | |||
| 100 | $ 8.51 | |||
| 250 | $ 7.76 | |||
| 500 | $ 7.25 | |||
| 1000 | $ 6.78 | |||
Description
General part information
RTS6BS14 Series
12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
