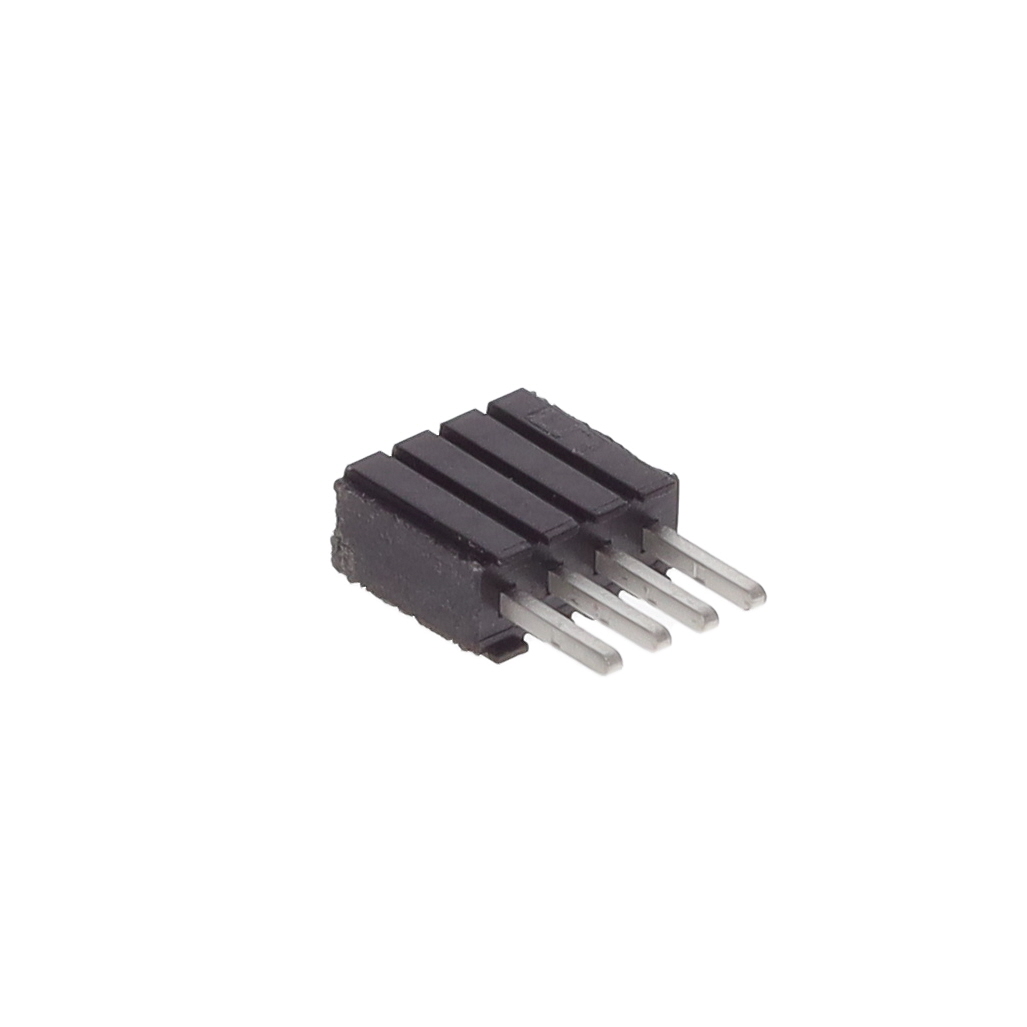

SLM-104-01-T-S

Active

Samtec Inc.

.050 MICRO STRIPS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SLM Datasheet +1

SLM-104-01-T-S

Active

Samtec Inc.

.050 MICRO STRIPS

Deep-Dive with AI

DocumentsDatasheet SLM Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SLM-104-01-T-S

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

SLM-104 Series

Part	Contact Shape	Contact Material	Number of Rows	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Insulation Color	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Termination	Mounting Type	Number of Positions Loaded	Contact Type	Insulation Material	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. SLM-104-01-T-S	Rectangular	Phosphor Bronze	1	Push-Pull	105 ░C	-55 °C	Receptacle	Black	4.57 mm	0.18 "	0.05 in	1.27 mm	Solder	Through Hole	All	Forked	Liquid Crystal Polymer (LCP)	Tin	2.92 mm	0.115 in	4
Samtec Inc. SLM-104-01-G-S	Rectangular	Phosphor Bronze	1	Push-Pull	125 °C	-55 °C	Receptacle	Black	4.57 mm	0.18 "	0.05 in	1.27 mm	Solder	Through Hole	All	Forked	Liquid Crystal Polymer (LCP)	Gold	2.92 mm	0.115 in	4	0.51 µm	20 µin	3 µin	0.076 µm	Gold
Samtec Inc. SLM-104-01-F-S	Rectangular	Phosphor Bronze	1	Push-Pull	125 °C	-55 °C	Receptacle	Black	4.57 mm	0.18 "	0.05 in	1.27 mm	Solder	Through Hole	All	Forked	Liquid Crystal Polymer (LCP)	Tin	2.92 mm	0.115 in	4	0.076 µm	3 µin			Gold
Samtec Inc. SLM-104-01-S-D	Rectangular	Phosphor Bronze	2	Push-Pull	125 °C	-55 °C	Receptacle	Black	4.57 mm	0.18 "	0.05 in	1.27 mm	Solder	Through Hole	All	Forked	Liquid Crystal Polymer (LCP)	Tin	2.92 mm	0.115 in	8	0.76 Ám	30 Áin			Gold	2.54 mm	0.1 in
Samtec Inc. SLM-104-01-L-D	Rectangular	Phosphor Bronze	2	Push-Pull	125 °C	-55 °C	Receptacle	Black	4.57 mm	0.18 "	0.05 in	1.27 mm	Solder	Through Hole	All	Forked	Liquid Crystal Polymer (LCP)	Tin	2.92 mm	0.115 in	8	0.25 çm	10 çin			Gold	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.62
		50	$ 0.48
		100	$ 0.39
		500	$ 0.33
		1000	$ 0.31

SLM-104-01-T-S

Deep-Dive with AI

SLM-104-01-T-S

Deep-Dive with AI

Technical Specifications

SLM-104 Series

Pricing

Description

SLM-104 Series

Documents

Datasheet

SLM Datasheet

Through-Hole Micro Socket, 0.050" x 0.100" Pitch

SLM-104 Series
