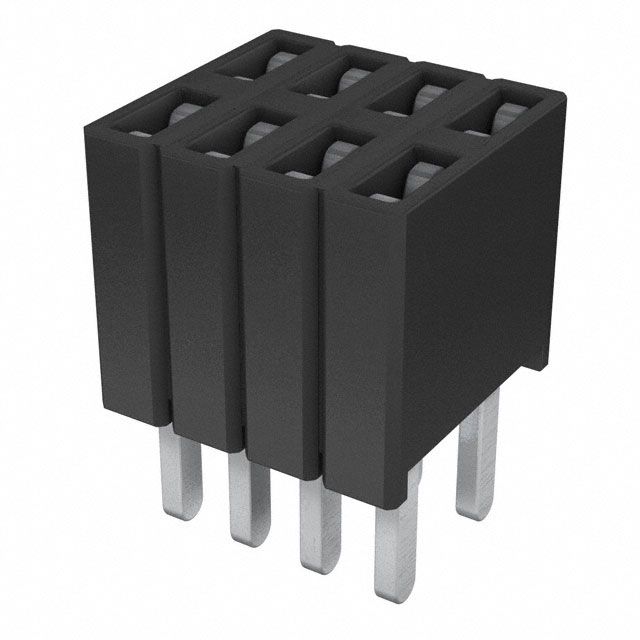

SLM-104-01-S-D
ActiveSamtec Inc.
CONN RCPT 8POS 0.05 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
SLM-104-01-S-D
ActiveSamtec Inc.
CONN RCPT 8POS 0.05 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SLM-104-01-S-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post | 2.92 mm |
| Contact Length - Post | 0.115 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.57 mm |
| Insulation Height | 0.18 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.95 | |
| 50 | $ 1.59 | |||
| 100 | $ 1.35 | |||
| 500 | $ 1.20 | |||
| 1000 | $ 1.11 | |||
Description
General part information
SLM-104 Series
8 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
