APA2106SRCPRV

Obsolete

Kingbright

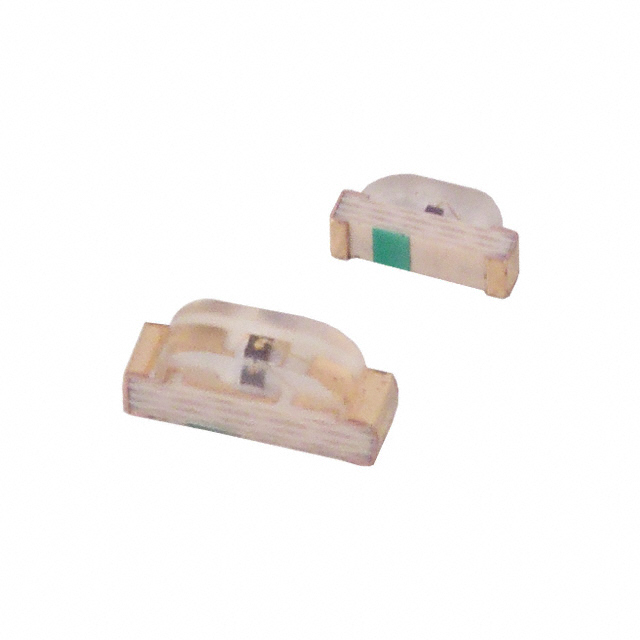

LED RED CLEAR 2SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APA2106SRCPRV

Obsolete

Kingbright

LED RED CLEAR 2SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APA2106SRCPRV

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max]	0.6 mm
Lens Color	Colorless
Lens Size [x]	1.7 mm
Lens Size [y]	0.6 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating	30 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	2.1 mm
Size / Dimension [y]	1 mm
Supplier Device Package	2-SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Dominant	640 nm
Wavelength - Peak	660 nm

APA2106 Series

Part	Lens Color	Lens Style	Wavelength - Peak	Package / Case	Lens Size [y]	Lens Size [x]	Configuration	Supplier Device Package	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Height (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Test	Color	Viewing Angle	Lens Transparency
Kingbright APA2106SURCK	Colorless	Rectangle with Domed Top	645 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	SMD	80 mcd	1 mm	2.1 mm	630 nm	0.6 mm	Surface Mount Right Angle	1.95 V	20 mA	Red	120 °	Clear
Kingbright APA2106SRCPRV	Colorless	Rectangle with Domed Top	660 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	2-SMD	30 mcd	1 mm	2.1 mm	640 nm	0.6 mm	Surface Mount Right Angle	1.85 V	20 mA	Red	120 °	Clear
Kingbright APA2106VBC/D	Colorless	Rectangle with Domed Top	465 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	SMD	200 mcd	1 mm	2.1 mm	470 nm	0.6 mm	Surface Mount Right Angle	3.3 V	20 mA	Blue	120 °	Clear
Kingbright APA2106SECK	Colorless	Rectangle with Domed Top	610 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	SMD	180 mcd	1 mm	2.1 mm	601 nm	0.6 mm	Surface Mount Right Angle	2.1 V	20 mA		120 °	Clear
Kingbright APA2106QBC/D	Colorless	Rectangle with Domed Top	460 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	SMD	80 mcd	1 mm	2.1 mm	465 nm	0.6 mm	Surface Mount Right Angle	3.3 V	20 mA	Blue	120 °	Clear
Kingbright APA2106ZGCK	Colorless	Rectangle with Domed Top	515 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	SMD	300 mcd	1 mm	2.1 mm	525 nm	0.6 mm	Surface Mount Right Angle	3.3 V	20 mA	Green	120 °	Clear
Kingbright APA2106SYCK/J3-PRV	Colorless	Rectangle with Domed Top	590 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	SMD	350 mcd	1 mm	2.1 mm	590 nm	0.6 mm	Surface Mount Right Angle	2 V	20 mA	Yellow	120 °	Clear
Kingbright APA2106ZGC/G	Colorless	Rectangle with Domed Top	515 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	SMD	400 mcd	1 mm	2.1 mm	525 nm	0.6 mm	Surface Mount Right Angle	3.3 V	20 mA	Green	120 °	Clear
Kingbright APA2106SYCK	Colorless	Rectangle with Domed Top	590 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	SMD	150 mcd	1 mm	2.1 mm	590 nm	0.6 mm	Surface Mount Right Angle	2 V	20 mA	Yellow	120 °	Clear
Kingbright APA2106PBC/A	Colorless	Rectangle with Domed Top	468 nm	2-SMD No Lead	0.6 mm	1.7 mm	Standard	SMD	60 mcd	1 mm	2.1 mm	470 nm	0.6 mm	Surface Mount Right Angle	3.2 V	20 mA	Blue	120 °	Clear

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APA2106 Series

Red 640nm LED Indication - Discrete 1.85V 2-SMD, No Lead
