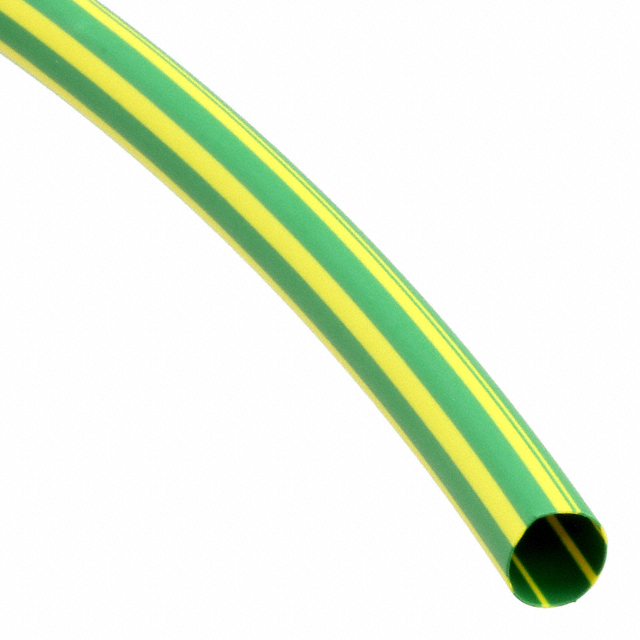

DCPT-6/3-45-SP

Active

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1=1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +2

DCPT-6/3-45-SP

Active

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1=1M

Deep-Dive with AI

DocumentsDatasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCPT-6/3-45-SP

Color	Green, Yellow
Features	Fluid Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	0.118 in
Inner Diameter - Recovered [diameter]	2.99 mm
Inner Diameter - Supplied [diameter]	0.236 in
Inner Diameter - Supplied [diameter]	5.99 mm
Length	Enter Number of Meters in Order Quantity
Length	25 m, 50 m
Length	82 ft, 164 ft
Length [x]	1 m, 5 m
Length [x]	3.28 ft, 16.4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.58 mm
Recovered Wall Thickness	0.023 in
Shelf Life	144 Months
Shrink Temperature	95 °C
Shrinkage Ratio	2 to 1
Spool Size	492.1 '
Spool Size	150 m
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Flexible

DCPT-9/3 Series

Part	Storage/Refrigeration Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio	Length	Length	Length	Length [x]	Length [x]	Type	Shrink Temperature	Color	Features	Shelf Life	Spool Size	Spool Size	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Recovered Wall Thickness	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Recovered	Inner Diameter - Recovered	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Supplied [diameter]
TE Connectivity Raychem Cable Protection DCPT-6/3-45-SP	35 °C	135 °C	-55 °C	0.118 in	2.99 mm	0.58 mm	0.023 in	2 to 1	Enter Number of Meters in Order Quantity	25 m 50 m	82 ft 164 ft	1 m 5 m	3.28 ft 16.4 ft	Tubing Flexible	95 °C	Green Yellow	Flame Retardant Fluid Resistant	144 Months	492.1 '	150 m	0.236 in	5.99 mm	Polyolefin (PO)
TE Connectivity Raychem Cable Protection DCPT-19/9-45-SP	35 °C	135 °C	-55 °C	0.354 in	8.99 mm	0.76 mm		2 to 1	Enter Number of Meters in Order Quantity	150 m	492.1 ft	1 m	3.28 ft	Tubing Flexible	95 °C	Green Yellow	Flame Retardant Fluid Resistant	144 Months	492.1 '	150 m	0.748 in	19 mm	Polyolefin (PO)	0.03 "
TE Connectivity Raychem Cable Protection DCPT-9/3-45-SP	35 °C	135 °C	-55 °C	0.118 in	2.99 mm	0.76 mm				150 m	492.1 ft	1 m	3.28 ft	Tubing Flexible	95 °C	Green Yellow	Flame Retardant Fluid Resistant	144 Months			0.354 in	8.99 mm	Polyolefin (PO)	0.03 "	1	3
TE Connectivity Raychem Cable Protection DCPT-18/6-45-SP	35 °C	135 °C	-55 °C			0.84 mm	0.033 in			150 m	492.1 ft	1 m	3.28 ft	Tubing Flexible	95 °C	Green Yellow	Flame Retardant Fluid Resistant	144 Months			0.709 in	18.01 mm	Polyolefin (PO)		1	3	5.99 mm	0.236 in
TE Connectivity Raychem Cable Protection DCPT-51/19-45-SP	35 °C	135 °C	-55 °C			1.02 mm	0.04 in	2 to 1				1 m	3.28 ft	Tubing Flexible	95 °C	Green Yellow	Flame Retardant Fluid Resistant	144 Months			2.008 in	51 mm	Polyolefin (PO)				19 mm	0.748 in
TE Connectivity Raychem Cable Protection DCPT-3/1.5-45-STK	35 °C	135 °C	-55 °C	0.06 in	1.52 mm	0.51 mm	0.02 in	2 to 1						Tubing Flexible	95 °C	Green Yellow	Flame Retardant Fluid Resistant	144 Months			0.118 in	3 mm	Polyolefin (PO)
TE Connectivity Raychem Cable Protection DCPT-8/4-45-SP	35 °C	135 °C	-55 °C	0.157 in	3.99 mm			2 to 1				1 m	3.28 ft	Tubing Flexible	95 °C	Green Yellow	Flame Retardant Fluid Resistant	144 Months				0.315 in	Polyolefin (PO)						0.025 "	0.64 mm	8 mm
TE Connectivity Raychem Cable Protection DCPT-12/6-45-SP	35 °C	135 °C	-55 °C					2 to 1		150 m	492.1 ft	1 m	3.28 ft	Tubing Flexible	95 °C	Green Yellow	Flame Retardant Fluid Resistant	144 Months			0.472 in	11.99 mm	Polyolefin (PO)				5.99 mm	0.236 in	0.025 "	0.64 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 155.92
		1	$ 9.16
		1	$ 37.17
		1	$ 272.68
		5	$ 31.30
		5	$ 146.17
		5	$ 8.77
		5	$ 262.94
		10	$ 28.37
		10	$ 136.43
		10	$ 6.77
		10	$ 259.04
		25	$ 6.18
		25	$ 129.61
		25	$ 26.41
		25	$ 253.20
		50	$ 5.78
		50	$ 126.68
		50	$ 25.43
		100	$ 24.85
		100	$ 5.38
	Digi-Spool®, Continuous Spool	1	$ 11.13
		5	$ 10.64
		10	$ 8.22
		25	$ 7.50
		50	$ 7.01
		100	$ 6.53

Description

General part information

DCPT-9/3 Series

Heat Shrink Tubing, Flexible 0.236" (5.99mm) 2 to 1 Green, Yellow 3.28' (1.00m)

Documents

Technical documentation and resources

Datasheet

DCPT Series Datasheet

Datasheet

TE Raychem Heat Shrink Shelf Life

Datasheet
