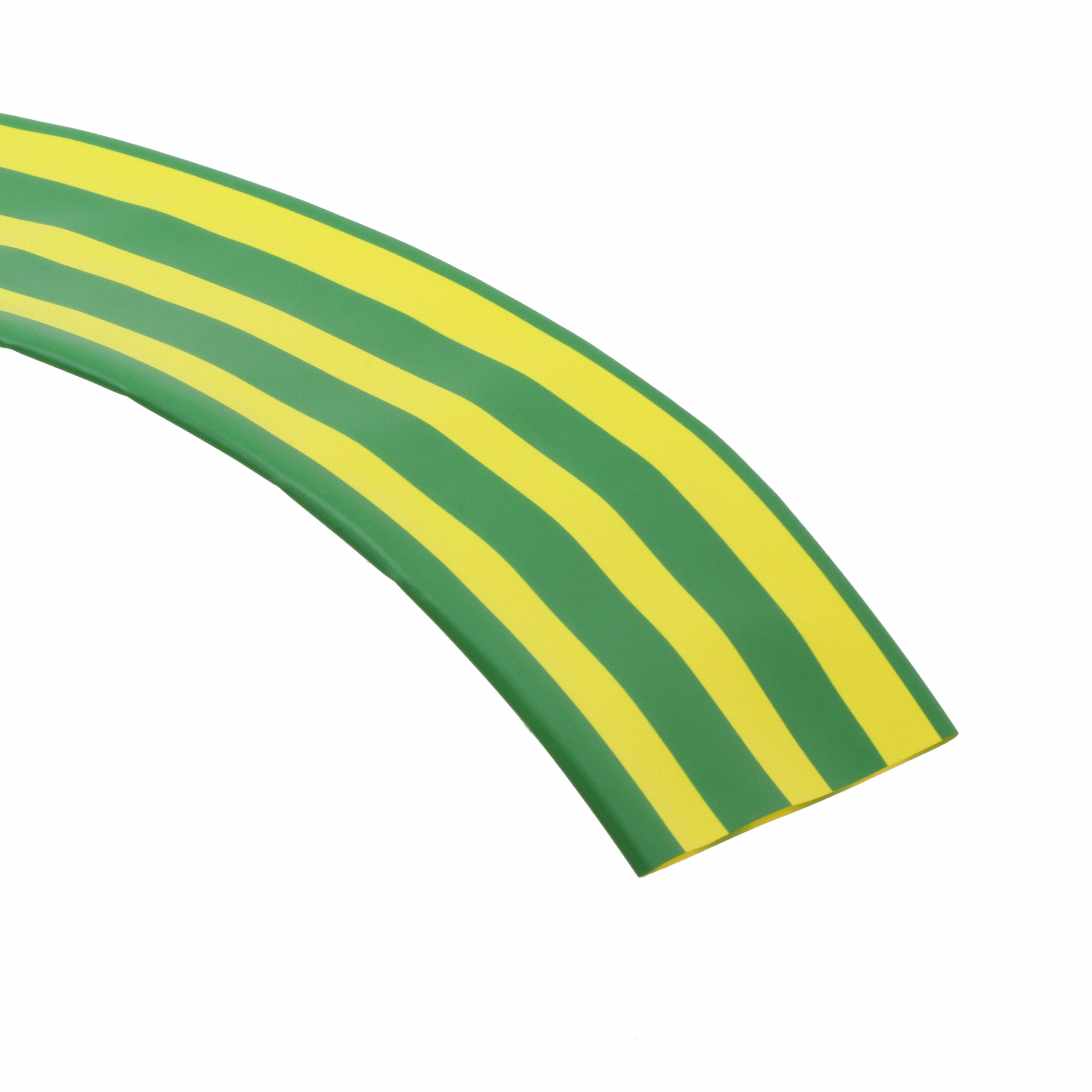

DCPT-51/19-45-SP

Unknown

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1M

Search across all available documentation for this part.

Unknown

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1M

Technical Specifications

Parameters and characteristics for this part

Specification	DCPT-51/19-45-SP

Color	Green, Yellow
Features	Fluid Resistant, Flame Retardant
Inner Diameter - Recovered	0.748 in
Inner Diameter - Recovered	19 mm
Inner Diameter - Supplied [diameter]	2.008 in
Inner Diameter - Supplied [diameter]	51 mm
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	1.02 mm
Recovered Wall Thickness	0.04 in
Shelf Life	144 Months
Shrink Temperature	95 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Flexible

Part	Recovered Wall Thickness	Recovered Wall Thickness	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Shrink Temperature	Features	Shelf Life	Length [x]	Length [x]	Shrinkage Ratio	Inner Diameter - Recovered	Inner Diameter - Recovered	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]
TE Connectivity Raychem Cable Protection DCPT-51/19-45-SP	1.02 mm	0.04 in	35 °C	0 °C	Green Yellow	2.008 in	51 mm	Tubing Flexible	Polyolefin (PO)	135 °C	-55 °C	95 °C	Flame Retardant Fluid Resistant	144 Months	1 m	3.28 ft	2 to 1	0.748 in	19 mm
TE Connectivity Raychem Cable Protection DCPT-39/13-45-SP	1.14 mm	0.045 in	35 °C	0 °C	Green Yellow			Tubing Flexible	Polyolefin (PO)	135 °C	-55 °C	95 °C	Flame Retardant Fluid Resistant	144 Months				0.512 in	13 mm	1	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 2.008" (51.00mm) 2 to 1 Green, Yellow 3.28' (1.00m)
