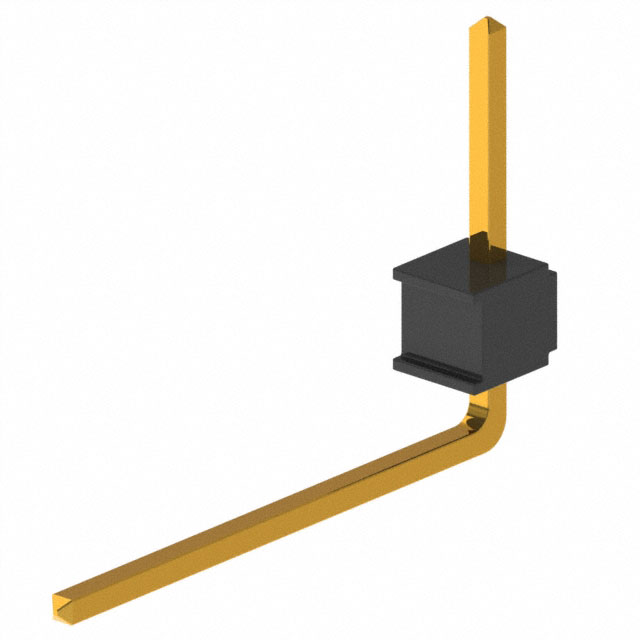

929648-05-01-EU

Active

3M (TC)

CONN HEADER R/A 1POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929648-05-01-EU

Active

3M (TC)

CONN HEADER R/A 1POS

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929648-05-01-EU

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	5.97 mm
Contact Length - Mating [x]	0.235 in
Contact Length - Post	13.21 mm
Contact Length - Post	0.52 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shrouding	Unshrouded
Termination	Solder

929648 Series

...

Part	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Contact Material	Fastening Type	Contact Type	Connector Type	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating	Current Rating (Amps)	Number of Positions	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Insulation Color	Shrouding	Insulation Material	Number of Rows	Contact Length - Post	Contact Length - Post [x]
3M (TC) 929648-01-33-I	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A	33	All	0.11 in	2.79 mm	10 çin	0.25 çm	Square	-40 °C	105 ░C	0.1 in	2.54 mm	Black	Unshrouded	Glass Filled Polybutylene Terephthalate (PBT) Polyester	1
3M (TC) 929648-05-07-EU	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A	7	All		13.21 mm	10 çin	0.25 çm	Square	-40 °C	105 ░C	0.1 in	2.54 mm	Black	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	1	0.52 "
3M (TC) 929648-05-17-EU	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A		All		13.21 mm	10 çin	0.25 çm	Square	-40 °C	105 ░C	0.1 in	2.54 mm	Black	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	1	0.52 "
3M (TC) 929648-01-21-I	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A	21	All	0.11 in	2.79 mm	10 çin	0.25 çm	Square	-40 °C	105 ░C	0.1 in	2.54 mm	Black	Unshrouded	Glass Filled Polybutylene Terephthalate (PBT) Polyester	1
3M (TC) 929648-01-09-EU	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A	9	All	0.11 in	2.79 mm	10 çin	0.25 çm	Square	-40 °C	105 ░C	0.1 in	2.54 mm	Black	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	1
3M (TC) 929648-04-26-EU	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A	26	All	0.225 in		10 çin	0.25 çm	Square	-40 °C	105 ░C	0.1 in	2.54 mm	Black	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	1		5.72 mm
3M (TC) 929648-05-01-EU	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A	1	All		13.21 mm	10 çin	0.25 çm	Square	-40 °C	105 ░C			Black	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	1	0.52 "
3M (TC) 929648-01-01-I	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A	1	All	0.11 in	2.79 mm	10 çin	0.25 çm	Square	-40 °C	105 ░C			Black	Unshrouded	Glass Filled Polybutylene Terephthalate (PBT) Polyester	1
3M (TC) 929648-01-09-I	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A	9	All	0.11 in	2.79 mm	10 çin	0.25 çm	Square	-40 °C	105 ░C	0.1 in	2.54 mm	Black	Unshrouded	Glass Filled Polybutylene Terephthalate (PBT) Polyester	1
3M (TC) 929648-04-07-EU	UL94 V-0	Through Hole Right Angle	10 çin	0.25 çm	Gold	Solder	Copper Alloy	Push-Pull	Male Pin	Breakaway Header	Gold	0.235 in	5.97 mm	2.5 A	7	All	0.225 in		10 çin	0.25 çm	Square	-40 °C	105 ░C	0.1 in	2.54 mm	Black	Unshrouded	Polycyclohexylenedimethylene Terephthalate (PCT)	1		5.72 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.45
		10	$ 0.39
		100	$ 0.32
		500	$ 0.28
		1000	$ 0.23
		5000	$ 0.20
		10000	$ 0.19

Description

General part information

929648 Series

Connector Header Through Hole, Right Angle 1 position

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
