929648-05-07-EU
Active3M (TC)

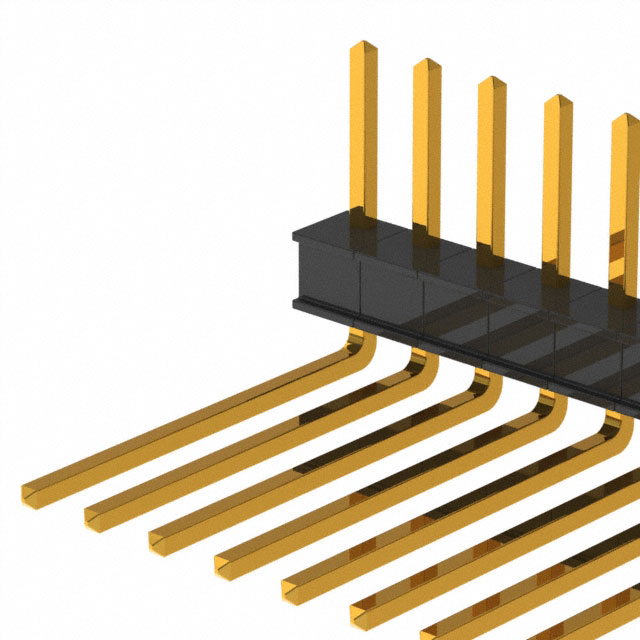

CONN HEADER R/A 7POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
929648-05-07-EU
Active3M (TC)
CONN HEADER R/A 7POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 929648-05-07-EU |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Length - Mating | 5.97 mm |
| Contact Length - Mating [x] | 0.235 in |
| Contact Length - Post | 13.21 mm |
| Contact Length - Post | 0.52 " |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.5 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
929648 Series
...
| Part | Material Flammability Rating | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Termination | Contact Material | Fastening Type | Contact Type | Connector Type | Contact Finish - Post | Contact Length - Mating [x] | Contact Length - Mating | Current Rating (Amps) | Number of Positions | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Insulation Color | Shrouding | Insulation Material | Number of Rows | Contact Length - Post | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | 33 | All | 0.11 in | 2.79 mm | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | 0.1 in | 2.54 mm | Black | Unshrouded | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 1 | ||
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | 7 | All | 13.21 mm | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | 0.1 in | 2.54 mm | Black | Unshrouded | Polycyclohexylenedimethylene Terephthalate (PCT) | 1 | 0.52 " | ||
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | All | 13.21 mm | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | 0.1 in | 2.54 mm | Black | Unshrouded | Polycyclohexylenedimethylene Terephthalate (PCT) | 1 | 0.52 " | |||
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | 21 | All | 0.11 in | 2.79 mm | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | 0.1 in | 2.54 mm | Black | Unshrouded | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 1 | ||
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | 9 | All | 0.11 in | 2.79 mm | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | 0.1 in | 2.54 mm | Black | Unshrouded | Polycyclohexylenedimethylene Terephthalate (PCT) | 1 | ||
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | 26 | All | 0.225 in | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | 0.1 in | 2.54 mm | Black | Unshrouded | Polycyclohexylenedimethylene Terephthalate (PCT) | 1 | 5.72 mm | ||
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | 1 | All | 13.21 mm | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | Black | Unshrouded | Polycyclohexylenedimethylene Terephthalate (PCT) | 1 | 0.52 " | ||||
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | 1 | All | 0.11 in | 2.79 mm | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | Black | Unshrouded | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 1 | ||||
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | 9 | All | 0.11 in | 2.79 mm | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | 0.1 in | 2.54 mm | Black | Unshrouded | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 1 | ||
3M (TC) | UL94 V-0 | Through Hole Right Angle | 10 çin | 0.25 çm | Gold | Solder | Copper Alloy | Push-Pull | Male Pin | Breakaway Header | Gold | 0.235 in | 5.97 mm | 2.5 A | 7 | All | 0.225 in | 10 çin | 0.25 çm | Square | -40 °C | 105 ░C | 0.1 in | 2.54 mm | Black | Unshrouded | Polycyclohexylenedimethylene Terephthalate (PCT) | 1 | 5.72 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.63 | |
| 10 | $ 2.29 | |||
| 100 | $ 2.05 | |||
| 500 | $ 1.71 | |||
| 1000 | $ 1.46 | |||
| 5000 | $ 1.30 | |||
Description
General part information
929648 Series
Connector Header Through Hole, Right Angle 7 position 0.100" (2.54mm)
