TE Connectivity Raychem Cable Protection

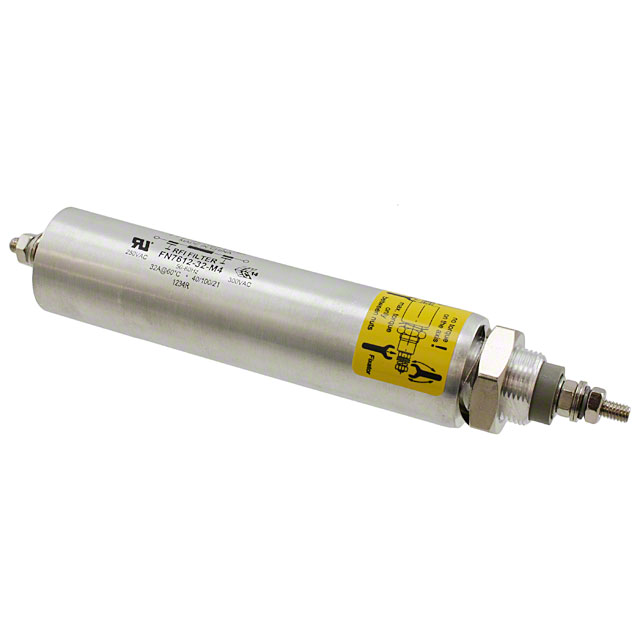

FILTER LC(PI) 70NH/0.1UF BOLT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

FILTER LC(PI) 70NH/0.1UF BOLT

Technical Specifications

Parameters and characteristics for this part

Specification	FN7612-32-M4

Applications	Data Lines for Mobile Devices
Current	32 A
ESD Protection	False
Filter Order	3
Mounting Type	Bolt Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Axial - Threaded Terminals
Size / Dimension [diameter]	0.984 "
Size / Dimension [diameter]	25 mm
Size / Dimension [x]	115 mm
Size / Dimension [x]	4.528 "
Technology	LC (Pi)
Type	Low Pass
Values [custom]	70 nH
Values [custom]	0.1 µF
Voltage - Rated	1 kV
Voltage - Rated	1000 V

Part	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	ESD Protection	Applications	Number of Channels	Type	Package / Case	Voltage - Rated	Voltage - Rated	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Values [custom]	Values [custom]	Current	Technology	Filter Order	Resistance - Channel (Ohms)	Values
TE Connectivity Raychem Cable Protection FN7612-32-M4	115 mm	0.984 "	4.528 "	25 mm		Data Lines for Mobile Devices	1	Low Pass	Axial - Threaded Terminals	1 kV	1000 V	Bolt Mount	100 °C	-40 °C	70 nH	0.1 µF	32 A	LC (Pi)	3
TE Connectivity Raychem Cable Protection FN7612-10-M3	111 mm	0.787 in	4.37 in	20 mm		Data Lines for Mobile Devices	1	Low Pass	Axial - Threaded Terminals	1 kV	1000 V	Bolt Mount	100 °C	-40 °C			10 A	LC (Pi)	3	0.00152 Ohms	0.047 µF 70 nH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 0.1µF 32 A Axial - Threaded Terminals
