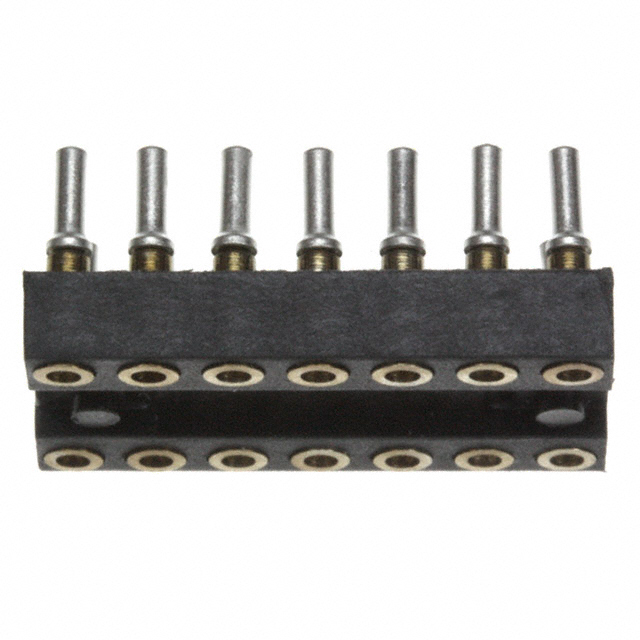

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

614-43-314-31-012000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	614-43-314-31-012000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame, Carrier
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	0.136 in
Termination Post Length	3.45 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

614-43 Series

Part	Features	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length	Termination Post Length	Pitch - Mating	Pitch - Mating	Contact Resistance	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Type	Type	Type	Contact Material - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Post	Housing Material	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 614-43-316-31-002000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	200 µin	5.08 µm	Brass Alloy	30 Áin	0.76 Ám	0.136 in	3.45 mm	0.1 in	2.54 mm	10 mOhm	2.54 mm	0.1 in	16	0.3 "	7.62 mm	DIP	Beryllium Copper	UL94 V-0	3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 614-43-636-31-018000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	30 µin	0.76 µm	Brass Alloy	30 Áin	0.76 Ám	0.17 in	4.32 mm	0.1 in	2.54 mm	10 mOhm	2.54 mm	0.1 in	36	0.6 in	15.24 mm	DIP	Beryllium Copper	UL94 V-0	3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 614-43-640-31-012000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	200 µin	5.08 µm	Brass Alloy	30 Áin	0.76 Ám	0.136 in	3.45 mm	0.1 in	2.54 mm		2.54 mm	0.1 in	40	0.6 in	15.24 mm	DIP	Beryllium Copper		3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	20	2
Mill-Max Manufacturing Corp. 614-43-652-31-007000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	200 µin	5.08 µm	Brass Alloy	30 Áin	0.76 Ám	0.146 in	3.71 mm	0.1 in	2.54 mm	10 mOhm	2.54 mm	0.1 in		0.6 in	15.24 mm	DIP	Beryllium Copper	UL94 V-0	3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 614-43-314-31-012000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	200 µin	5.08 µm	Brass Alloy	30 Áin	0.76 Ám	0.136 in	3.45 mm	0.1 in	2.54 mm		2.54 mm	0.1 in	14	0.3 "	7.62 mm	DIP	Beryllium Copper		3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 614-43-624-31-002000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	200 µin	5.08 µm	Brass Alloy	30 Áin	0.76 Ám	0.136 in	3.45 mm	0.1 in	2.54 mm	10 mOhm	2.54 mm	0.1 in	24	0.6 in	15.24 mm	DIP	Beryllium Copper	UL94 V-0	3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 614-43-952-41-001000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	200 µin	5.08 µm	Brass Alloy	30 Áin	0.76 Ám	0.165 in	4.19 mm	0.1 in	2.54 mm	10 mOhm	2.54 mm	0.1 in		0.9 in	22.86 mm	DIP	Beryllium Copper	UL94 V-0	3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 614-43-320-31-007000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	200 µin	5.08 µm	Brass Alloy	30 Áin	0.76 Ám	0.146 in	3.71 mm	0.1 in	2.54 mm	10 mOhm	2.54 mm	0.1 in	20	0.3 "	7.62 mm	DIP	Beryllium Copper	UL94 V-0	3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 614-43-328-41-001000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	200 µin	5.08 µm	Brass Alloy	30 Áin	0.76 Ám	0.165 in	4.19 mm	0.1 in	2.54 mm	10 mOhm	2.54 mm	0.1 in	28	0.3 "	7.62 mm	DIP	Beryllium Copper	UL94 V-0	3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 614-43-632-31-002000	Carrier Open Frame	Through Hole	Solder	-55 °C	125 °C	200 µin	5.08 µm	Brass Alloy	30 Áin	0.76 Ám	0.136 in	3.45 mm	0.1 in	2.54 mm	10 mOhm	2.54 mm	0.1 in		0.6 in	15.24 mm	DIP	Beryllium Copper	UL94 V-0	3 A	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold			2 x 16	32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	28	$ 3.61
		56	$ 3.53
		84	$ 3.36
		280	$ 2.94
		700	$ 2.86
		1400	$ 2.44
		2800	$ 2.27

Description

General part information

614-43 Series

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
