MU10-8FFBK
Active3M

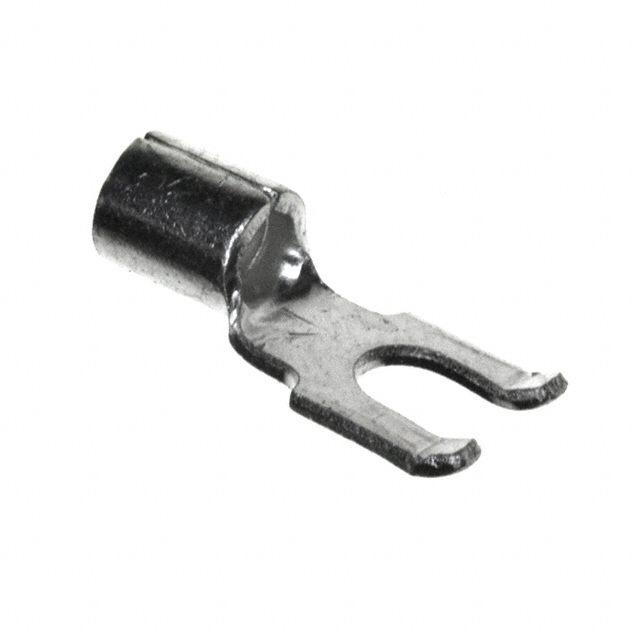

CONN SPADE TERM 10-12AWG #8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MU10-8FFBK
Active3M
CONN SPADE TERM 10-12AWG #8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MU10-8FFBK | MU10 Series |
|---|---|---|
| Color | - | Yellow |
| Contact Finish | Tin | Tin, Nickel |
| Contact Material | ETP, Copper | ETP, Copper, Steel |
| Features | Butted Seam | Butted Seam |
| Insulation | Non-Insulated | Non-Insulated, Fully Insulated |
| Length - Overall [x] | 18.54 mm | 17.27 - 18.54 mm |
| Length - Overall [x] | 0.73 in | 0.68 - 0.73 in |
| Length - Ring Center to Termination | 0.29 in | 0.28 - 0.29 in |
| Length - Ring Center to Termination | 7.37 mm | 7.11 - 7.37 mm |
| Length - Termination | 6.35 mm | 6.35 mm |
| Length - Termination [x] | 0.25 " | 0.25 " |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Wire Entries | - | 2 |
| Stud/Tab Size | 8 Stud | 8 Stud |
| Stud/Tab Size | - | 4 - 10 Stud |
| Terminal Type | Flanged | Snap, Spring, Standard, Flanged, Circular, Butt Splice, Inline, Individual Openings |
| Termination | Crimp | Crimp |
| Thickness | - | 0.04 in |
| Thickness | - | 1.02 mm |
| Width - Outer Edges | - | 0.36 - 0.38 in |
| Width - Outer Edges | - | 9.14 - 9.65 mm |
| Width - Outer Edges [y] | 8.13 mm | 7.11 - 8.13 mm |
| Width - Outer Edges [y] | 0.32 in | 0.28 - 0.32 in |
| Wire Gauge [Max] | 12 AWG | 12 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
MU10 Series
CONN SPADE TERM 10-12AWG 10 50PC
| Part | Length - Termination | Length - Termination [x] | Contact Material | Insulation | Length - Overall [x] | Length - Overall [x] | Terminal Type | Termination | Length - Ring Center to Termination | Length - Ring Center to Termination | Mounting Type | Contact Finish | Width - Outer Edges [x] | Width - Outer Edges [x] | Wire Gauge [Max] | Wire Gauge [Min] | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Features | Stud/Tab Size | Thickness | Thickness | Number of Wire Entries | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.35 mm | 0.25 " | Copper, ETP | Non-Insulated | 18.54 mm | 0.73 in | Snap, Spring | Crimp | 7.11 mm | 0.28 in | Free Hanging (In-Line) | Tin | 0.36 in | 9.14 mm | 12 AWG | 10 AWG | 10 Stud | |||||||||
6.35 mm | 0.25 " | Copper | Non-Insulated | 18.54 mm | 0.73 in | Standard | Crimp | 7.37 mm | 0.29 in | Free Hanging (In-Line) | Tin | 12 AWG | 10 AWG | 10 Stud | 8.13 mm | 0.32 in | Butted Seam | ||||||||
6.35 mm | 0.25 " | Copper, ETP | Non-Insulated | 18.54 mm | 0.73 in | Flanged | Crimp | 7.37 mm | 0.29 in | Free Hanging (In-Line) | Tin | 12 AWG | 10 AWG | 10 Stud | 8.13 mm | 0.32 in | Butted Seam | ||||||||
6.35 mm | 0.25 " | Copper, ETP | Non-Insulated | 18.54 mm | 0.73 in | Standard | Crimp | 7.37 mm | 0.29 in | Free Hanging (In-Line) | Tin | 0.38 " | 9.65 mm | 12 AWG | 10 AWG | 10 Stud | Butted Seam | ||||||||
6.35 mm | 0.25 " | Copper | Non-Insulated | 18.54 mm | 0.73 in | Standard | Crimp | 7.37 mm | 0.29 in | Free Hanging (In-Line) | Tin | 12 AWG | 10 AWG | 8.13 mm | 0.32 in | Butted Seam | 8 Stud | ||||||||
6.35 mm | 0.25 " | Copper, ETP | Non-Insulated | 18.54 mm | 0.73 in | Snap, Spring | Crimp | 7.11 mm | 0.28 in | Free Hanging (In-Line) | Tin | 12 AWG | 10 AWG | 10 Stud | 8.13 mm | 0.32 in | Butted Seam | ||||||||
Copper, ETP | Non-Insulated | 17.27 mm | 0.68 in | Circular | Crimp | Free Hanging (In-Line) | Tin | 12 AWG | 10 AWG | 4 Stud | 7.11 mm | 0.28 in | 0.04 in | 1.02 mm | |||||||||||
3M MU10BCX | Non-Insulated | Butt Splice, Individual Openings, Inline | Crimp | 12 AWG | 10 AWG | 2 | |||||||||||||||||||
6.35 mm | 0.25 " | Steel | Non-Insulated | 18.54 mm | 0.73 in | Standard | Crimp | 7.11 mm | 0.28 in | Free Hanging (In-Line) | Nickel | 0.38 " | 9.65 mm | 12 AWG | 10 AWG | 10 Stud | Butted Seam | ||||||||
Fully Insulated | Butt Splice, Individual Openings, Inline | Crimp | 12 AWG | 10 AWG | 2 | Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.36 | |
Description
General part information
MU10 Series
8 Stud Spade Terminal Connector Crimp 10-12 AWG
