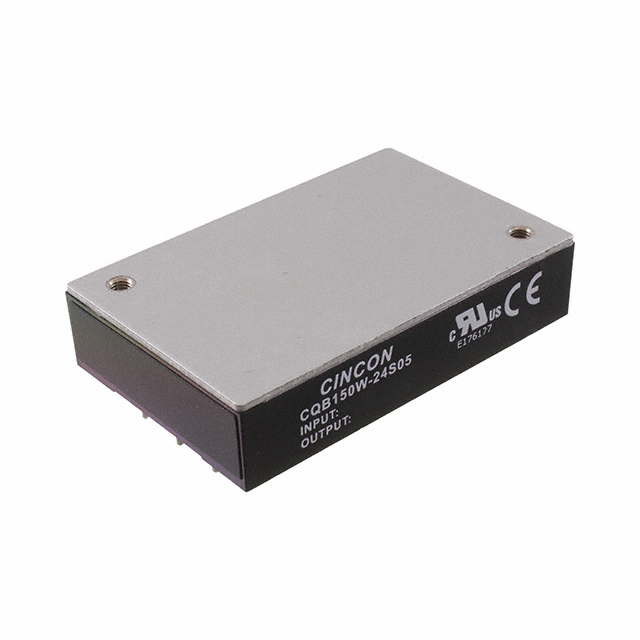

CQB150W-48S48
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 48V 154W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CQB150W-48S48
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 48V 154W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CQB150W-48S48 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 3.2 A |
| Efficiency | 91.5 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power (Watts) | 154 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Standard Number | 60950-1 |
| Standard Number | 50155 |
| Supplier Device Package | Module |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 48 V |
CQB150 Series
| Part | Efficiency | Type | Power (Watts) | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Number of Outputs | Approval Agency | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Voltage - Isolation | Voltage - Output 1 | Mounting Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Standard Number | Features | Control Features | Supplier Device Package | Package / Case | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cincon Electronics Co. LTD | 91 % | Open Frame | 150 W | 160 V | -40 °C | 105 C | ITE (Commercial) Railway | 1 | CE | 43 V | 12.5 A | 3000 V | 12 V | Chassis Mount | 32 mm | 1.26 in | 4.6 " | 61 mm | 116.8 mm | 2.4 " | ||||||
Cincon Electronics Co. LTD | 88 % | Enclosed | 151 W | 160 V | -40 °C | 105 C | ITE (Commercial) Railway | 1 | CE | 43 V | 5.4 A | 3000 V | 28 V | Chassis Mount | 34.2 mm | 1.35 " | 4.6 " | 63.4 mm | 116.8 mm | 2.49 " | ||||||
Cincon Electronics Co. LTD | 89 % | Isolated Module | 154 W | 425 V | -40 °C | 105 C | ITE (Commercial) | 1 | CE cURus | 180 V | 3.2 A | 3000 V | 48 V | Through Hole | 12.7 mm | 0.5 in | 2.28 in | 36.8 mm | 57.9 mm | 1.45 in | 60950-1 | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | |||
Cincon Electronics Co. LTD | 91.5 % | Isolated Module | 154 W | 75 V | -40 °C | 105 C | ITE (Commercial) Railway | 1 | CB CE cURus | 18 V | 3.2 A | 2250 VDC | 48 V | Through Hole | 12.7 mm | 0.5 in | 2.28 in | 36.8 mm | 57.9 mm | 1.45 in | 50155 | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | Module | Module | 60950-1 |
Cincon Electronics Co. LTD | 88.5 % | Isolated Module | 151 W | 425 V | -40 °C | 105 C | ITE (Commercial) | 1 | CE cURus | 180 V | 5.4 A | 3000 V | 28 V | Through Hole | 12.7 mm | 0.5 in | 2.28 in | 36.8 mm | 57.9 mm | 1.45 in | 60950-1 | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | |||
Cincon Electronics Co. LTD | 88.5 % | Isolated Module | 151 W | 425 V | -40 °C | 105 C | ITE (Commercial) | 1 | CE cURus | 180 V | 5.4 A | 3000 V | 28 V | Through Hole | 12.7 mm | 0.5 in | 2.28 in | 36.8 mm | 57.9 mm | 1.45 in | 60950-1 | OCP OTP OVP Remote On/Off SCP UVLO | Active Low Enable | |||
Cincon Electronics Co. LTD | 90.5 % | Isolated Module | 154 W | 36 V | -40 °C | 105 C | ITE (Commercial) Railway | 1 | CB CE cURus | 9 V | 3.2 A | 2250 VDC | 48 V | Through Hole | 12.7 mm | 0.5 in | 2.28 in | 36.8 mm | 57.9 mm | 1.45 in | 50155 | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | Module | Module | 60950-1 |
Cincon Electronics Co. LTD | 86 % | Isolated Module | 150 W | 425 V | -40 °C | 105 C | ITE (Commercial) | 1 | CE cURus | 180 V | 30 A | 3000 V | 5 V | Through Hole | 12.7 mm | 0.5 in | 2.28 in | 36.8 mm | 57.9 mm | 1.45 in | 60950-1 | OCP OTP OVP Remote On/Off SCP UVLO | Active Low Enable | |||
Cincon Electronics Co. LTD | 90 % | Isolated Module | 151 W | 36 V | -40 °C | 105 C | ITE (Commercial) Railway | 1 | CB CE cURus | 9 V | 5.4 A | 2250 VDC | 28 V | Through Hole | 12.7 mm | 0.5 in | 2.28 in | 36.8 mm | 57.9 mm | 1.45 in | 50155 | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | Module | Module | 60950-1 |
Cincon Electronics Co. LTD | 89 % | Isolated Module | 150 W | 425 V | -40 °C | 105 C | ITE (Commercial) | 1 | CE cURus | 180 V | 12.5 A | 3000 V | 12 V | Through Hole | 12.7 mm | 0.5 in | 2.28 in | 36.8 mm | 57.9 mm | 1.45 in | 60950-1 | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | Module | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 123.86 | |
| 5 | $ 119.56 | |||
| 10 | $ 115.97 | |||
| 25 | $ 111.33 | |||
| 50 | $ 107.32 | |||
Description
General part information
CQB150 Series
Isolated Module DC DC Converter 1 Output 48V 3.2A 18V - 75V Input
