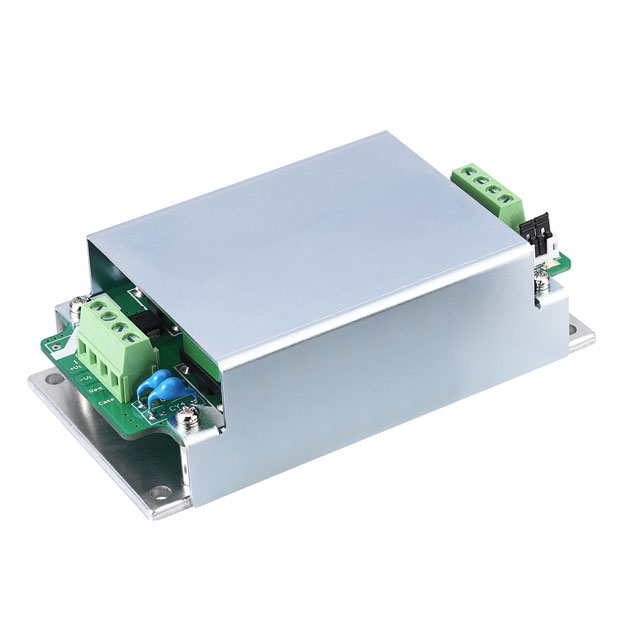

CQB150W-110S28-CMFD

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 28V 151W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CQB150W-110S28-CMFD

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 28V 151W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CQB150W-110S28-CMFD

Applications	Railway, ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	5.4 A
Efficiency	88 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Power (Watts)	151 W
Size / Dimension [x]	116.8 mm
Size / Dimension [x]	4.6 "
Size / Dimension [y]	63.4 mm
Size / Dimension [y]	2.49 "
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Type	Enclosed
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	43 V
Voltage - Isolation	3000 V
Voltage - Output 1	28 V

CQB150 Series

Part	Efficiency	Type	Power (Watts)	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Number of Outputs	Approval Agency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Standard Number	Features	Control Features	Supplier Device Package	Package / Case	Standard Number
Cincon Electronics Co. LTD CQB150W-110S12-CMFC	91 %	Open Frame	150 W	160 V	-40 °C	105 C	ITE (Commercial) Railway	1	CE	43 V	12.5 A	3000 V	12 V	Chassis Mount	32 mm	1.26 in	4.6 "	61 mm	116.8 mm	2.4 "
Cincon Electronics Co. LTD CQB150W-110S28-CMFD	88 %	Enclosed	151 W	160 V	-40 °C	105 C	ITE (Commercial) Railway	1	CE	43 V	5.4 A	3000 V	28 V	Chassis Mount	34.2 mm	1.35 "	4.6 "	63.4 mm	116.8 mm	2.49 "
Cincon Electronics Co. LTD CQB150-300S48	89 %	Isolated Module	154 W	425 V	-40 °C	105 C	ITE (Commercial)	1	CE cURus	180 V	3.2 A	3000 V	48 V	Through Hole	12.7 mm	0.5 in	2.28 in	36.8 mm	57.9 mm	1.45 in	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable
Cincon Electronics Co. LTD CQB150W-48S48	91.5 %	Isolated Module	154 W	75 V	-40 °C	105 C	ITE (Commercial) Railway	1	CB CE cURus	18 V	3.2 A	2250 VDC	48 V	Through Hole	12.7 mm	0.5 in	2.28 in	36.8 mm	57.9 mm	1.45 in	50155	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	Module	Module	60950-1
Cincon Electronics Co. LTD CQB150-300S28	88.5 %	Isolated Module	151 W	425 V	-40 °C	105 C	ITE (Commercial)	1	CE cURus	180 V	5.4 A	3000 V	28 V	Through Hole	12.7 mm	0.5 in	2.28 in	36.8 mm	57.9 mm	1.45 in	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable
Cincon Electronics Co. LTD CQB150-300S28N	88.5 %	Isolated Module	151 W	425 V	-40 °C	105 C	ITE (Commercial)	1	CE cURus	180 V	5.4 A	3000 V	28 V	Through Hole	12.7 mm	0.5 in	2.28 in	36.8 mm	57.9 mm	1.45 in	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable
Cincon Electronics Co. LTD CQB150W-24S48	90.5 %	Isolated Module	154 W	36 V	-40 °C	105 C	ITE (Commercial) Railway	1	CB CE cURus	9 V	3.2 A	2250 VDC	48 V	Through Hole	12.7 mm	0.5 in	2.28 in	36.8 mm	57.9 mm	1.45 in	50155	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	Module	Module	60950-1
Cincon Electronics Co. LTD CQB150-300S05N	86 %	Isolated Module	150 W	425 V	-40 °C	105 C	ITE (Commercial)	1	CE cURus	180 V	30 A	3000 V	5 V	Through Hole	12.7 mm	0.5 in	2.28 in	36.8 mm	57.9 mm	1.45 in	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable
Cincon Electronics Co. LTD CQB150W-24S28	90 %	Isolated Module	151 W	36 V	-40 °C	105 C	ITE (Commercial) Railway	1	CB CE cURus	9 V	5.4 A	2250 VDC	28 V	Through Hole	12.7 mm	0.5 in	2.28 in	36.8 mm	57.9 mm	1.45 in	50155	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	Module	Module	60950-1
Cincon Electronics Co. LTD CQB150-300S12	89 %	Isolated Module	150 W	425 V	-40 °C	105 C	ITE (Commercial)	1	CE cURus	180 V	12.5 A	3000 V	12 V	Through Hole	12.7 mm	0.5 in	2.28 in	36.8 mm	57.9 mm	1.45 in	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	Module	Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 184.04

Description

General part information

CQB150 Series

Enclosed DC DC Converter 1 Output 28V 5.4A 160V Input
