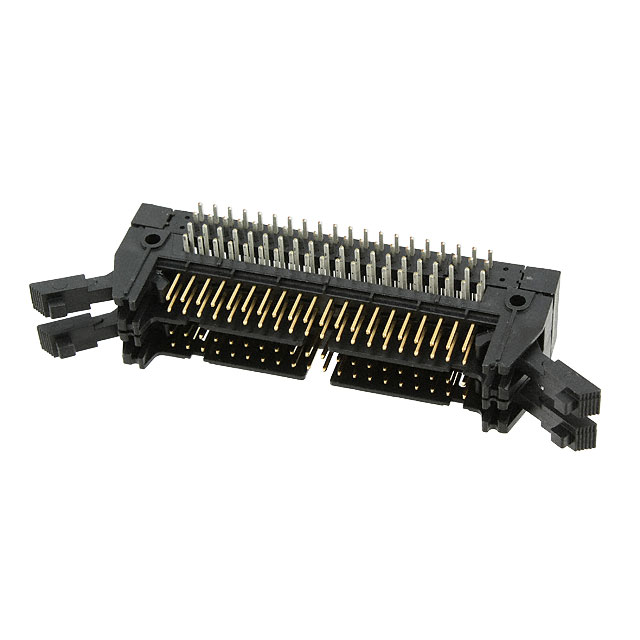

N3432-D302RB

Active

CONN HEADER R/A 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N3432-D302RB

Active

CONN HEADER R/A 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.30
		10	$ 21.22

Description

General part information

N3432 Series

Connector Header Through Hole, Right Angle 40, 40 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3432-D302RB	N3432 Series

Connector Type	Stackable (2), Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 4.45 mm
Contact Length - Post	0.112 in	0.112 - 0.175 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	-	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long, Push-Pull, Latch Lock/Eject Hooks, Short
Insulation Color	Black	Black, Beige
Insulation Height	0.66 in	0.31 - 0.685 in
Insulation Height	16.76 mm	7.87 - 17.4 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	40	20 - 40
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Overall Contact Length	-	0.652 - 0.695 in
Overall Contact Length	-	16.56 - 17.65 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 3 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Press-Fit

N3432 Series

CONN EJECTOR HEADER HDR 40 POS 2.54MM PRESS FIT ST TOP ENTRY THRU-HOLE BOX

Part	Connector Type	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Material	Contact Length - Mating	Contact Length - Mating [x]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Style	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Material	Contact Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Overall Contact Length	Overall Contact Length
3M N3432-630T02RB	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	4.45 mm	0.175 in	Copper Alloy	6.1 mm	0.24 in	Press-Fit, Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	300 µin	7.62 µm	2.54 mm	0.1 in	Square	0.715 "	18.16 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Long	105 ░C	-55 °C	1.75 A	Tin	17.27 mm	0.68 in	UL94 V-0
3M N3432-2002RB	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 3 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Push-Pull	105 ░C	-55 °C	1.75 A	Tin	17.4 mm	0.685 "	UL94 V-0	0.652 in	16.56 mm
3M N3432-5202RB	Header	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin	8.64 mm	0.34 in	UL94 V-0
3M N3432-L202RB	Header, Stackable (2)	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	20	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C		Tin	16.76 mm	0.66 in	UL94 V-0
3M N3432-D302RB	Header, Stackable (2)	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 3 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Long	105 ░C	-55 °C		Tin	16.76 mm	0.66 in	UL94 V-0
3M N3432-5203RB	Header	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	3.94 mm	0.155 "	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin	8.64 mm	0.34 in	UL94 V-0
3M N3432-6303RB	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	3.94 mm	0.155 "	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Long	105 ░C	-55 °C	1.75 A	Tin	17.27 mm	0.68 in	UL94 V-0	0.695 in	17.65 mm
3M N3432-6202RB	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin	17.27 mm	0.68 in	UL94 V-0	0.652 in	16.56 mm
3M N3432-6203	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	3.94 mm	0.155 "	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin-Lead	17.27 mm	0.68 in	UL94 V-0	0.695 in	17.65 mm
3M N3432-1202RB	Header	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 3 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin	7.87 mm	0.31 in	UL94 V-0
