N3432-6303RB

Active

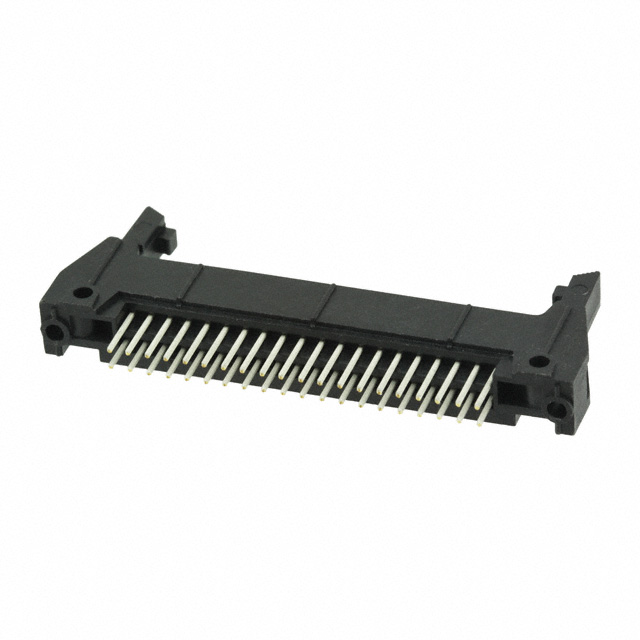

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Drawing EN +2

N3432-6303RB

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Drawing EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3432-6303RB	N3432 Series

Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	3.94 mm	2.84 - 4.45 mm
Contact Length - Post	0.155 "	0.112 - 0.175 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long, Push-Pull, Latch Lock/Eject Hooks, Short
Insulation Color	Black	Black, Beige
Insulation Height	17.27 mm	7.87 - 17.4 mm
Insulation Height	0.68 in	0.31 - 0.685 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	40	20 - 40
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.695 in	0.652 - 0.695 in
Overall Contact Length	17.65 mm	16.56 - 17.65 mm
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Press-Fit

N3432 Series

CONN EJECTOR HEADER HDR 40 POS 2.54MM PRESS FIT ST TOP ENTRY THRU-HOLE BOX

Part	Connector Type	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Material	Contact Length - Mating	Contact Length - Mating [x]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Style	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Material	Contact Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Overall Contact Length	Overall Contact Length
3M N3432-630T02RB	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	4.45 mm	0.175 in	Copper Alloy	6.1 mm	0.24 in	Press-Fit, Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	300 µin	7.62 µm	2.54 mm	0.1 in	Square	0.715 "	18.16 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Long	105 ░C	-55 °C	1.75 A	Tin	17.27 mm	0.68 in	UL94 V-0
3M N3432-2002RB	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 3 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Push-Pull	105 ░C	-55 °C	1.75 A	Tin	17.4 mm	0.685 "	UL94 V-0	0.652 in	16.56 mm
3M N3432-5202RB	Header	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin	8.64 mm	0.34 in	UL94 V-0
3M N3432-L202RB	Header, Stackable (2)	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	20	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C		Tin	16.76 mm	0.66 in	UL94 V-0
3M N3432-D302RB	Header, Stackable (2)	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 3 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Long	105 ░C	-55 °C		Tin	16.76 mm	0.66 in	UL94 V-0
3M N3432-5203RB	Header	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	3.94 mm	0.155 "	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin	8.64 mm	0.34 in	UL94 V-0
3M N3432-6303RB	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	3.94 mm	0.155 "	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Long	105 ░C	-55 °C	1.75 A	Tin	17.27 mm	0.68 in	UL94 V-0	0.695 in	17.65 mm
3M N3432-6202RB	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin	17.27 mm	0.68 in	UL94 V-0	0.652 in	16.56 mm
3M N3432-6203	Header	All	Through Hole	0.1 in	2.54 mm	2	Gold	Black	3.94 mm	0.155 "	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin-Lead	17.27 mm	0.68 in	UL94 V-0	0.695 in	17.65 mm
3M N3432-1202RB	Header	All	Through Hole, Right Angle	0.1 in	2.54 mm	2	Gold	Black	2.84 mm	0.112 in	Copper Alloy	6.1 mm	0.24 in	Solder	30 Áin	0.76 Ám	Shrouded - 3 Wall	Board to Board, Cable	40	200 µin	5.08 µm	2.54 mm	0.1 in	Square			Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Latch Lock/Eject Hooks, Short	105 ░C	-55 °C	1.75 A	Tin	7.87 mm	0.31 in	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.36
		10	$ 6.41
		100	$ 4.98
		500	$ 4.22
		1000	$ 3.95
Newark	Each	1	$ 7.18
		10	$ 6.89
		25	$ 6.36
		50	$ 6.00
		100	$ 5.74
		250	$ 5.06
		500	$ 4.91
		1000	$ 4.17

Description

General part information

N3432 Series

Connector Header Through Hole 40 position 0.100" (2.54mm)
