SJS860501

Active

AMPHENOL PCD

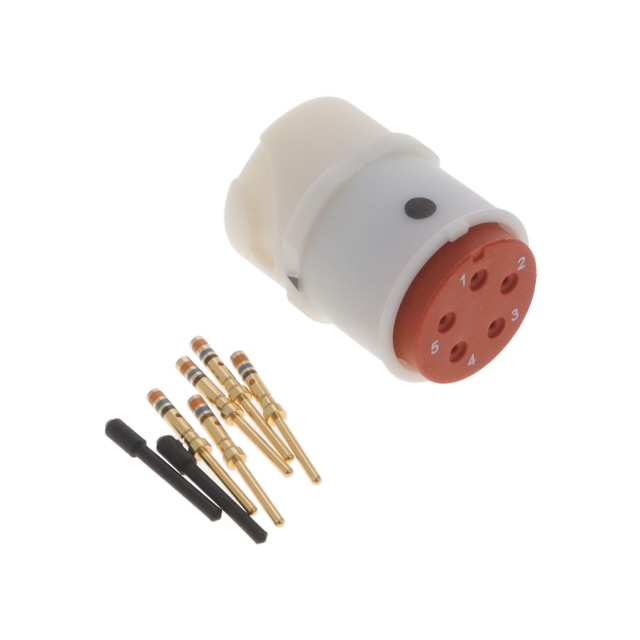

CONN RCPT MALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

SJS860501

Active

AMPHENOL PCD

CONN RCPT MALE 5POS GOLD CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 30.01

Description

General part information

SJS86 Series

5 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJS860501	SJS86 Series

Cable Opening	-	11.43 mm
Cable Opening	-	0.45 in
Color	-	White
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle Housing, Female Sockets, Plug, Plug Housing
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	-	1.27 µm
Contact Finish Thickness - Mating	-	50 µin
Contact Material	-	Copper Alloy
Contact Shape	-	Circular
Contact Size	-	22D, 16, 22D (6), 16 (4)
Contact Size	-	4 - 5
Contact Type	-	Crimp
Current Rating (Amps)	5 A	5 - 7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Dust Cap, Coupling Nut
Housing Color	-	White
Ingress Protection	Environment Sealed	Environment Sealed, IP67 - Dust Tight, Waterproof
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	-	9 - 12
Operating Temperature [Max]	125 °C	125 - 155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Primary Material	Plastic	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8	7 - 10
Shielding	-	Unshielded
Termination	Crimp	Crimp
Type	-	For Male Pins, For Female Sockets

SJS86 Series

CONN RCPT MALE 12POS GOLD CRIMP

Part	Mounting Type	Termination	Connector Type	Primary Material	Shell Size - Insert	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Ingress Protection	Contact Finish - Mating	Shell Material	Fastening Type	Contact Material	Color	Material Flammability Rating	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Contact Size	Note	Type	Contact Shape	Housing Color	Features	Contact Type
AMPHENOL PCD SJS861401	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	8	5 A	125 °C	-65 ░C	12	Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock
AMPHENOL PCD SJS861201	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	10		125 °C	-65 ░C	10	Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock
AMPHENOL PCD SJS862401	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	7	7.5 A	125 °C	-65 ░C		IP67 - Dust Tight, Waterproof	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock	Copper Alloy	White	UL94 V-0	11.43 mm	0.45 in	1.27 µm	50 µin	Unshielded
AMPHENOL PCD SJS860501	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	8	5 A	125 °C	-65 ░C		Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock
AMPHENOL PCD SJS860500	Free Hanging (In-Line)		Receptacle Housing		8		155 °C	-65 ░C		IP67 - Dust Tight, Waterproof		Polyamide (PA66), Nylon 6/6	Bayonet Lock			UL94 V-0					Unshielded	22D	Contacts Not Included	For Male Pins	Circular	White	Dust Cap	Crimp
AMPHENOL PCD SJS860511	Free Hanging (In-Line)	Crimp	Female Sockets, Plug	Plastic	8	5 A	125 °C	-65 ░C		Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock
AMPHENOL PCD SJS862400	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	7	7.5 A	125 °C	-65 ░C		Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock	Copper Alloy	White	UL94 V-0
AMPHENOL PCD SJS860100	Free Hanging (In-Line)		Plug Housing		8		125 °C	-65 ░C	9	IP67 - Dust Tight, Waterproof		Polyamide (PA66), Nylon 6/6	Bayonet Lock			UL94 V-0					Unshielded	16, 22D	Contacts Not Included	For Female Sockets	Circular	White	Coupling Nut	Crimp
AMPHENOL PCD SJS860200	Free Hanging (In-Line)		Receptacle Housing		8		125 °C	-65 ░C	9	IP67 - Dust Tight, Waterproof		Polyamide (PA66), Nylon 6/6	Bayonet Lock			UL94 V-0					Unshielded	16, 22D	Contacts Not Included	For Male Pins	Circular	White		Crimp
AMPHENOL PCD SJS861100	Free Hanging (In-Line)		Plug Housing		10		125 °C	-65 ░C	10	IP67 - Dust Tight, Waterproof		Polyamide (PA66), Nylon 6/6	Bayonet Lock			UL94 V-0					Unshielded	16 (4), 22D (6)	Contacts Not Included	For Female Sockets	Circular	White	Coupling Nut	Crimp
